Cáp mạng Ethernet 0.3m bọc chống nhiễu có 2 đầu nối M12 male

Cáp mạng Ethernet 0.3m bọc chống nhiễu có 2 đầu nối M12 male 0° / M12 male 0° D-code 7700-44511-S7V0030: là một cáp truyền thông công nghiệp Ethernet CAT5e, M12 male – M12 male 4 chân, D-code

– TPE 22AWG SF/UTP CAT5e gn UL/CSA. ITC/PLTC 0.3m
– M12 male 0°- M12 male 0°
– Có sẵn cáp dài 0.3m, 4 chân, D-code
– Tốt độ truyền dữ liệu: 100 MBit/s

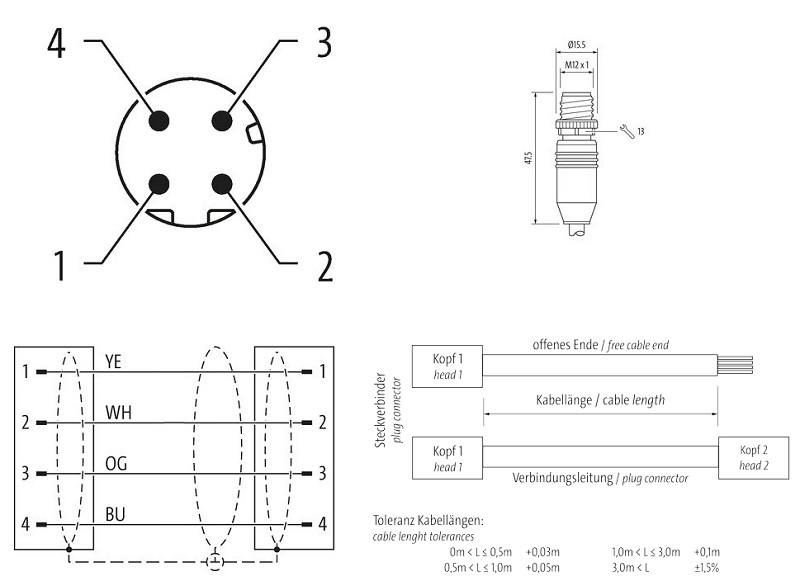

Cáp mạng Ethernet 0.3m bọc chống nhiễu có 2 đầu nối M12 male 0° / M12 male 0° D-code 7700-44511-S7V0030 - DETAIL

– Vỏ nhựa có khả năng chống hóa chất và dầu tốt

Sản phẩm tương tự

Thông số kỹ thuật – Cáp mạng Ethernet 0.3m bọc chống nhiễu có 2 đầu nối M12 male 0° / M12 male 0° D-code 7700-44511-S7V0030

Cable length	0,3 m

Side 1

Tightening torque	0,6 Nm
Mounting method	inserted, screwed
Family construction form	M12
Thread	M12 x 1
Cable outlet	straight
Coding	D
No. of poles	4
Width across flats	SW13

Side 2

Tightening torque	0,6 Nm
Mounting method	inserted, screwed
Family construction form	M12
Thread	M12 x 1
Cable outlet	straight
Coding	D
No. of poles	4
Width across flats	SW13

Electrical data | Supply

Operating voltage DC max.	60 V
Current operating per contact (UL)	1,5 A
Current operating per contact max.	1,5 A

Industrial communication

Transfer parameters	CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1)
Data transmission rate max.	100 MBit/s

Industrial communication | Ethernet functionality

duplex	Full duplex

Diagnostics

Status indication LED	no

Installation | Connection

Gender	male

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP65, IP67, IP66K
Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	1,5 kV
Material group (IEC 60664-1)	I

Mechanical data

Contour for corrugated hose	without

Mechanical data | Material data

Material housing	PUR
Color housing	black
Coating locking	Nickeled
Locking material	Zinc die-casting

Mechanical data | Mounting data

Mounting method	inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-25 °C
Operating temperature max.	85 °C
Additional condition temperature range	depending on cable quality

Important installation notes

Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Conformity

Product standard	DIN EN 61076-2-101 (M12)
