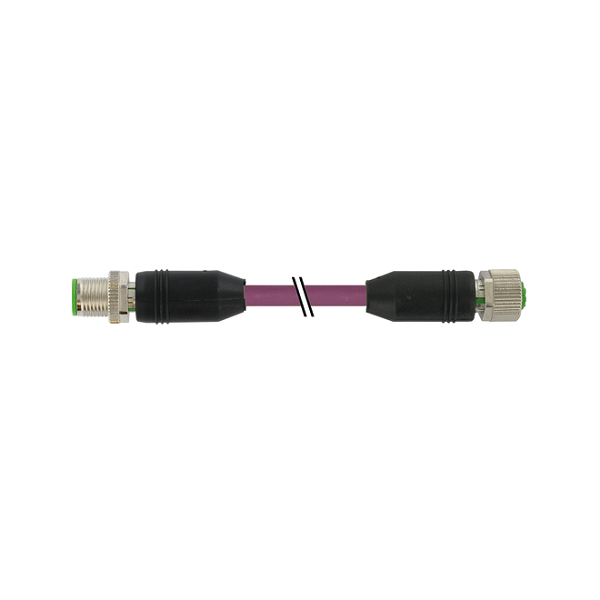

Cáp mạng DeviceNet 2m có 2 đầu nối M12 male 0° / M12 female 0° A-code 7000-40531-8030200
– PUR AWG24+22 shielded vt UL/CSA+drag ch. 2m
– M12 (đực, 0°) – M12 (cái, 0°), 5 chân, A-code, chiều dài cáp 2 m
– Inserted, screwed, Shaking protection
– IP67, IP66K, IP65
Cáp mạng DeviceNet 2m có 2 đầu nối M12 male 0° / M12 female 0° A-code 7000-40531-8030200: là dây cáp fieldbus có 2 đầu nối M12 (đực, 0°) – M12 (cái, 0°), 5 chân, A-code
(PUR AWG24+22 shielded vt UL/CSA+drag ch. 2m)
– Giao thức mạng: DeviceNet, CANopen
– Có sẵn cáp dài 2 m
– Vỏ bọc chịu dầu và chống mài mòn

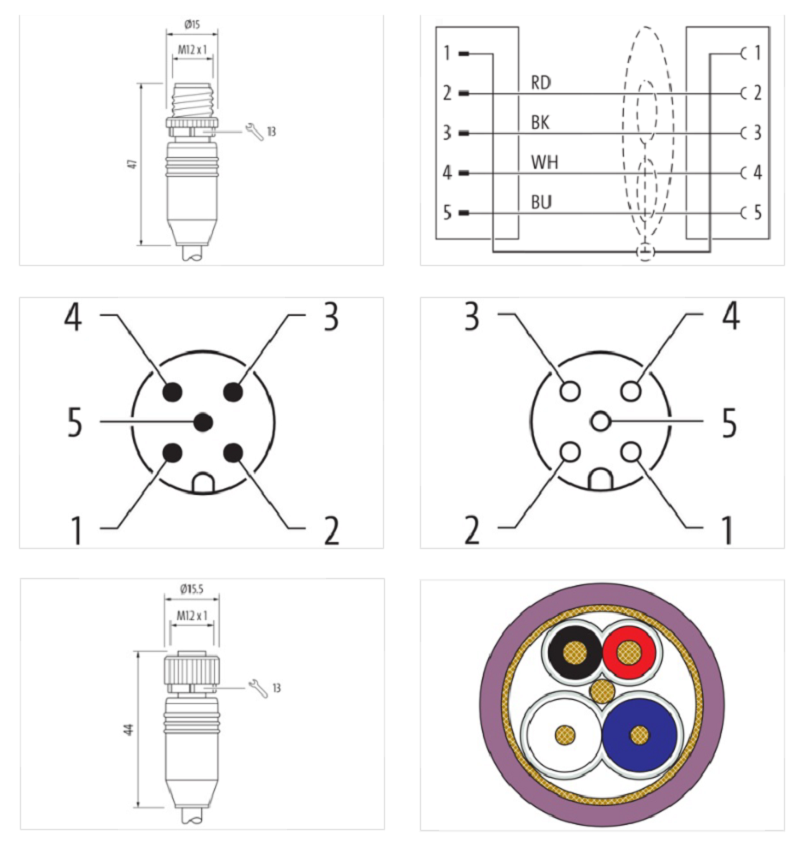

Thông số kỹ thuật – Cáp mạng DeviceNet 2m có 2 đầu nối M12 male 0° / M12 female 0° A-code 7000-40531-8030200
| Material short text | MSBL0-A-U803_2.0 |
|---|---|
| Cable length | 2,00 m |
| Family construction form | M12 |
|---|---|
| No. of poles | 5 |
| Coding | A |
| Gender | male |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| Material | PUR |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Family construction form | M12 |
|---|---|
| No. of poles | 5 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| Material | PUR |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Operating voltage AC max. | 60 V |
|---|---|
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
| Operating voltage AC (UL-listed) | 30 V |
| Operating voltage DC (UL-listed) | 30 V |
| Status indication LED | No |
|---|
| Mounting set | M12 x 1 |
|---|
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
| Contour for corrugated hose | without |
|---|
| Material screw connection | Zinc die-casting |
|---|---|
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
| Material gasket | FKM |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Product standard | EN IEC 61076-2-101 (M12) |
|---|
