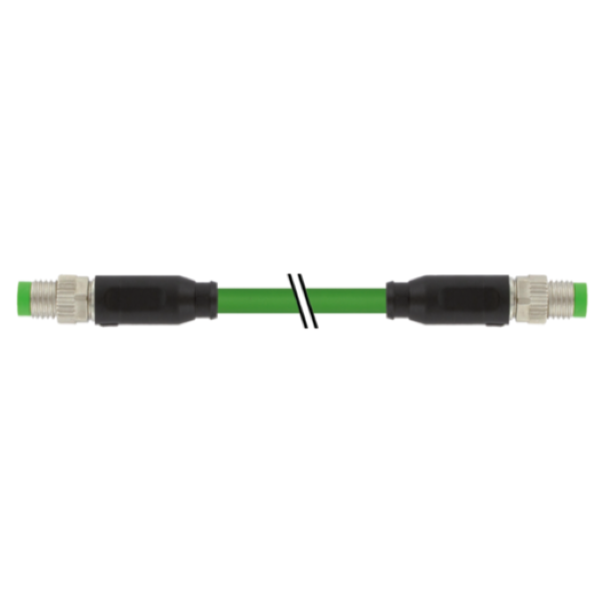

Cáp mạng bọc chống nhiễu 1.5m có 2 đầu nối M8 male 0° / M8 male 0° A-code 4 chân 7000-89701-7910150
– M8 đực (0°) – M8 đực (0°), 4 chân, A-code, chiều dài cáp 1.5 mét
– PUR 1x4xAWG26 shielded gn UL/CSA+drag ch. 1.5m
– Inserted, screwed
– IP65, IP67, IP68, IP66K
Cáp mạng bọc chống nhiễu 1.5m có 2 đầu nối M8 male 0° / M8 male 0° A-code 4 chân 7000-89701-7910150. Đây là dây cáp kết nối loại M8. Nó gồm 2 đầu đực (thẳng 0°), 4 chân, A-code
– PUR 1x4xAWG26 shielded gn UL/CSA+drag ch. 1.5m
– Có sẵn cáp dài 1.5 mét, được bọc chống nhiễu, chịu dầu và chống hóa chất tốt
Phù hợp cho robot tự động hóa, chịu uốn, kéo tốt
Sản phẩm tương tự – Đầu nối M8 – M8
Thông số kỹ thuật – Cáp mạng bọc chống nhiễu 1.5m có 2 đầu nối M8 male 0° / M8 male 0° A-code 4 chân 7000-89701-7910150
| Cable length | 1,5 m |
Side 1
| Tightening torque | 0,4 Nm |
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M8 |
| Thread | M8 x 1 |
| suitable for corrugated tube (internal Ø) | 8,5 mm |
| Material contact | Copper alloy |
| No. of poles | 4 |
| Width across flats | SW9 |
Side 2
| Tightening torque | 0,4 Nm |
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M8 |
| Thread | M8 x 1 |
| Material contact | Copper alloy |
| No. of poles | 4 |
Electrical data | Supply
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 1,5 A |
Industrial communication
| Transfer parameters | With reference to CAT5, Class D (ISO/IEC 11801) |
| Data transmission rate max. | 100 MBit/s |
Diagnostics
| Status indication LED | no |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP65, IP67, IP68, IP66K |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Material housing | PUR |
| Coating locking | nickel plated |
| Locking material | Brass |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
Conformity
| Product standard | DIN EN 61076-2-114 (M8) |
