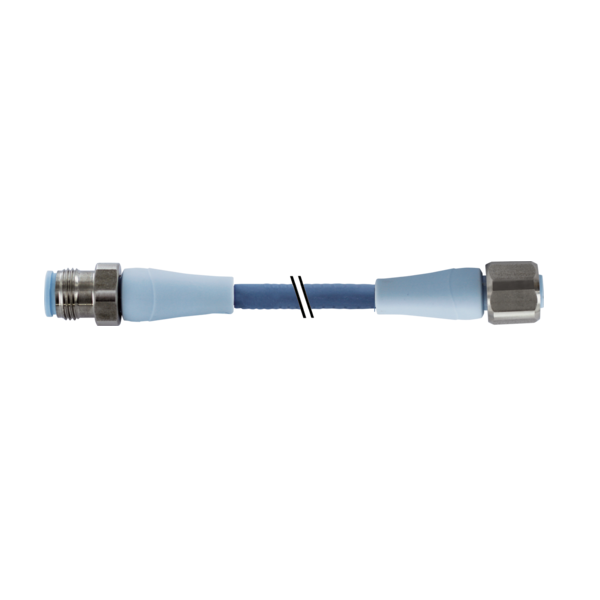

Cáp F&B 10m có 2 đầu nối M12 male 0° / M12 female 0° A-code 4 chân 7024-40021-3211000
– M12 (đực, 0°) – M12 (cái, 0°)
– 4 chân, A-code, có sẵn cáp dài 10m
– Inserted, screwed
– IP65, IP68, IP69K
Cáp F&B 10m có 2 đầu nối M12 male 0° / M12 female 0° A-code 4 chân 7024-40021-3211000: là cáp tín hiệu cho ngành thực phẩm & đồ uống, phù hợp với các yêu cầu cao về vệ sinh, chống ăn mòn, và dễ dàng làm sạch
– TPE-S 4×0.34 bu UL robot+drag ch. 10m
– M12 (đực, 0°) – M12 (cái, 0°), có sẵn cáp dài 10m, 4 chân, A-code
– Vỏ nhựa có khả năng chống hóa chất và dầu tốt

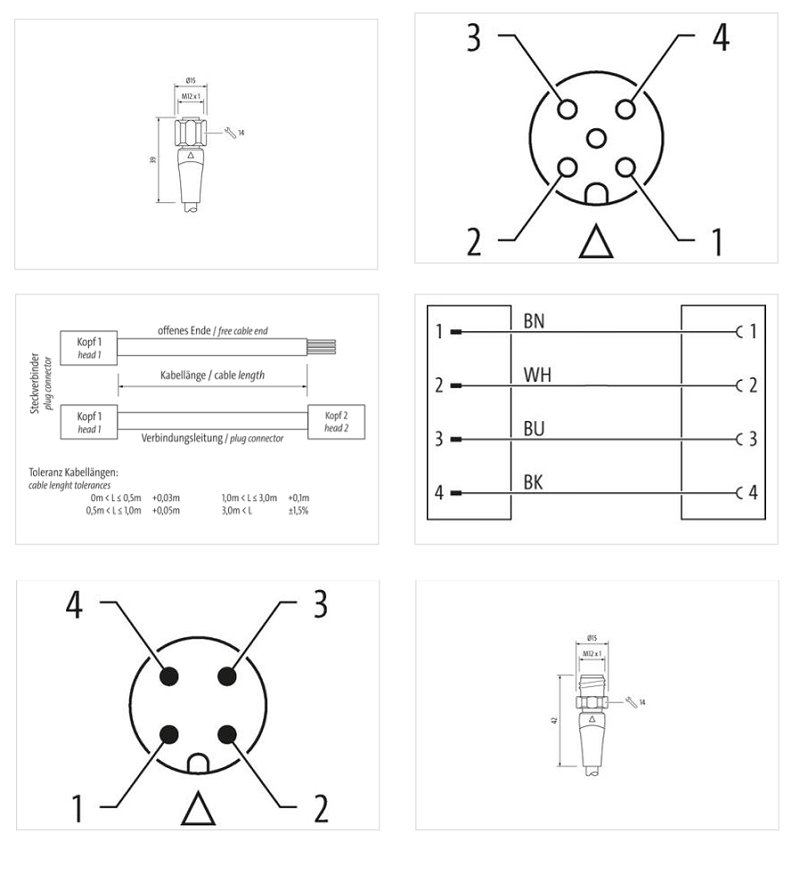

Thông số kỹ thuật – Cáp F&B 10m có 2 đầu nối M12 male 0° / M12 female 0° A-code 4 chân 7024-40021-3211000
| Cable length | 10 m |
|---|
| Tightening torque | 0,6 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Gender | male |
| Cable outlet | straight |
| Coding | A |
| Material contact | Copper alloy |
| Material | PP |
| No. of poles | 4 |
| Width across flats | SW14 |
| Degree of protection (EN IEC 60529) | IP65, IP68, IP69K |
| Tightening torque | 0,6 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Gender | female |
| Cable outlet | straight |
| Coding | A |
| Material contact | Copper alloy |
| Material | PP |
| No. of poles | 4 |
| Width across flats | SW14 |
| Degree of protection (EN IEC 60529) | IP65, IP68, IP69K |
| Operating voltage AC max. | 250 V |
|---|---|
| Operating voltage DC max. | 250 V |
| Current operating per contact max. | 4 A |
| Status indication LED | no |
|---|
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
| Rated surge voltage | 2,5 kV |
| Material group (IEC 60664-1) | I |
| Contour for corrugated hose | without |
|---|
| Material housing | PP |
|---|---|
| Color contact carrier | ice blue |
| Material gasket | EPDM |
| Material contact carrier | PP |
| Locking material | Stainless steel 1.4404 (V4A) |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -40 °C |
|---|---|
| Operating temperature max. | 105 °C |
| Additional condition temperature range | depending on cable quality |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
|---|---|
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Product standard | DIN EN 61076-2-101 (M12), FDA conform |
|---|
