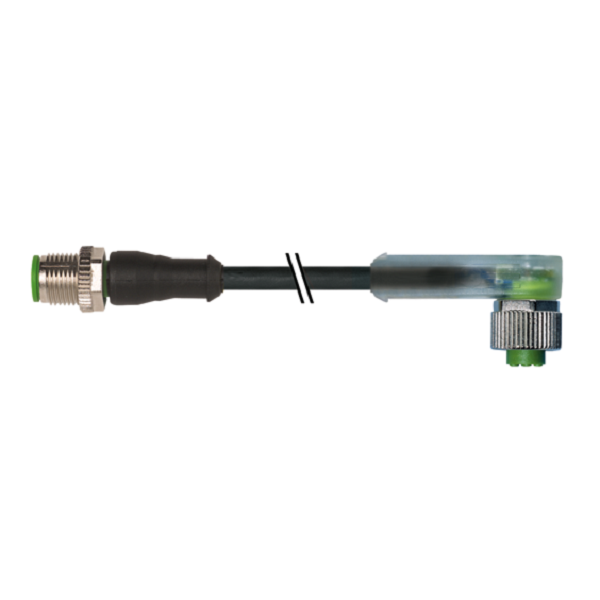

Cáp đen 0.3m có đầu nối M12 male 0°-M12 female 90° A-code có LED của Murrelektronik 7000-40341-6340030
– Male 0° – female 90°
– M12 – M12, 4-chân, A-cod, có sãn cáp dài 0.3m
– IP65, IP66K, IP67
Cáp đen 0.3m có đầu nối M12 male 0°-M12 female 90° A-code có LED của Murrelektronik 7000-40341-6340030 là đầu chuyển đổi giữa M12 4 chân, A-cod, male (đực), 0° với M12 4 chân, A-cod, female (cái), 90°, có sẵn cáp dài 0.3 m
– PUR 4×0.34 bk UL/CSA+drag ch. 0.3m

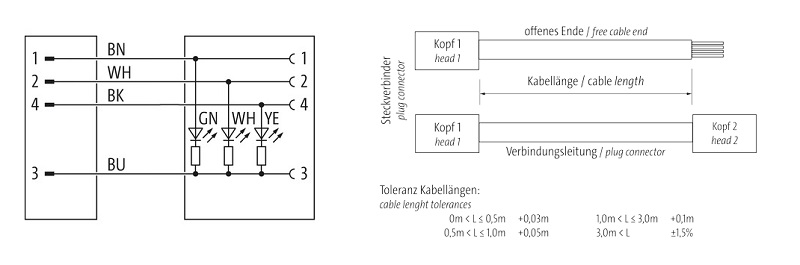

– 3× LED (PNP), (NPN) theo yêu cầu
– Vỏ nhựa có khả năng chống chịu hóa chất và dầu tốt

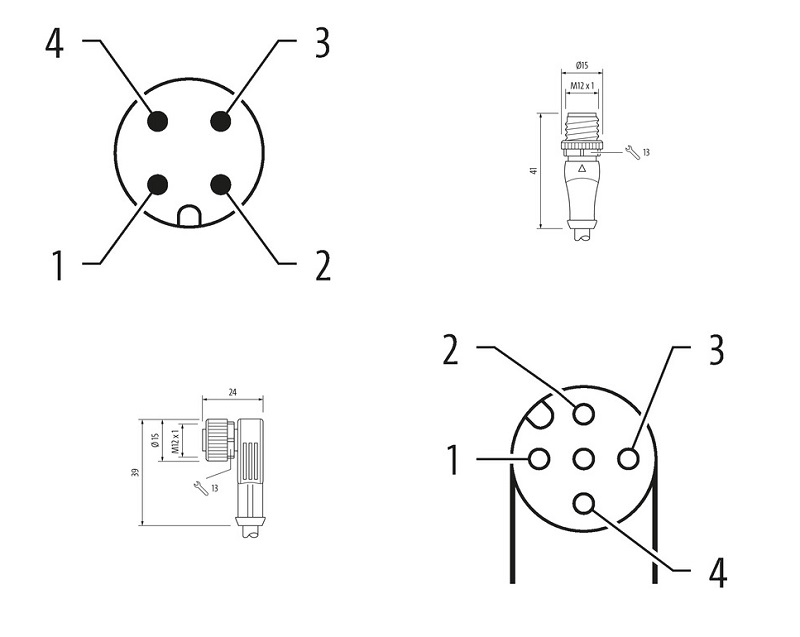

Thông số kỹ thuật – Cáp đen 0.3m có đầu nối M12 male 0°-M12 female 90° A-code có LED của Murrelektronik 7000-40341-6340030
| Cable length | 0,3 m |
|---|
| Tightening torque | 0,6 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Family construction form | M12 |
| Thread | M12 x 1 |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material | PUR |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
| Tightening torque | 0,6 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Family construction form | M12 |
| Thread | M12 x 1 |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material | PUR |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
| Operating voltage DC | 24 V |
|---|---|
| Operating voltage DC min. | 18 V |
| Operating voltage DC max. | 30 V |
| Operating voltage DC max. (UL-listed) | 30 V |
| Current operating per contact max. | 4 A |
| Status indication LED | green, white, yellow |
|---|
| Mounting set | M12 x 1 |
|---|
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
| Rated surge voltage | 0,8 kV |
| Material group (IEC 60664-1) | I |
| Coating locking | Nickeled |
|---|---|
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Material screw connection | Zinc die-casting |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
|---|---|
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Product standard | DIN EN 61076-2-101 (M12) |
|---|
