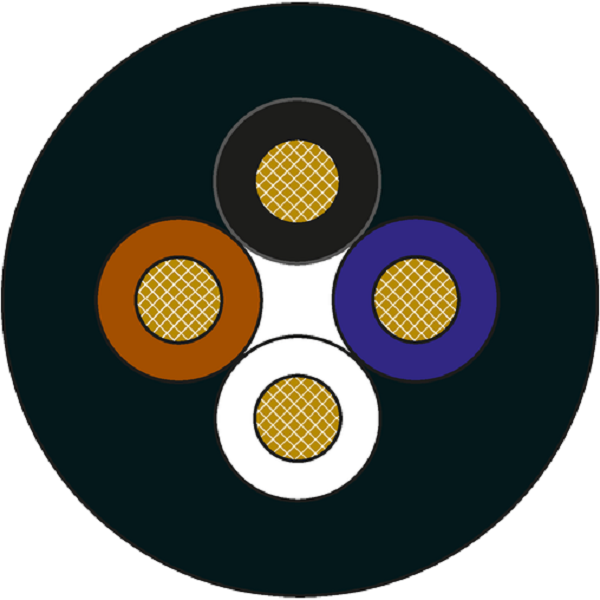

Cap-cuon-100m-Murrelektronik-7000-C0101-6340000-HEADER

Cáp cuộn 100m 4 ruột Murrelektronik 7000-C0101-6340000

Cáp cuộn 100m 4 ruột Murrelektronik 7000-C0101-6340000

– Trống cáp Ø 355mm (100m)
– 4 ruột × 0.34 mm²
– Điện áp tối đa: 300VAC
– Phù hợp với C-tracks, robot

Cáp cuộn 100m 4 ruột Murrelektronik 7000-C0101-6340000 được bọc bằng chất liệu PUR (Polyurethane), drum cáp có đường kính Ø 355mm (100m), cấu tạo gồm 4 ruột 0.34 mm²

(PUR 4×0.34 bk UL/CSA+drag ch. 100m)
– Phù hợp trong lĩnh vục robot, các ứng dụng hàn, cáp có thể hoạt động ổn định trong môi trường yêu cầu chuyển động liên tục
– Phù hợp cho C-tracks

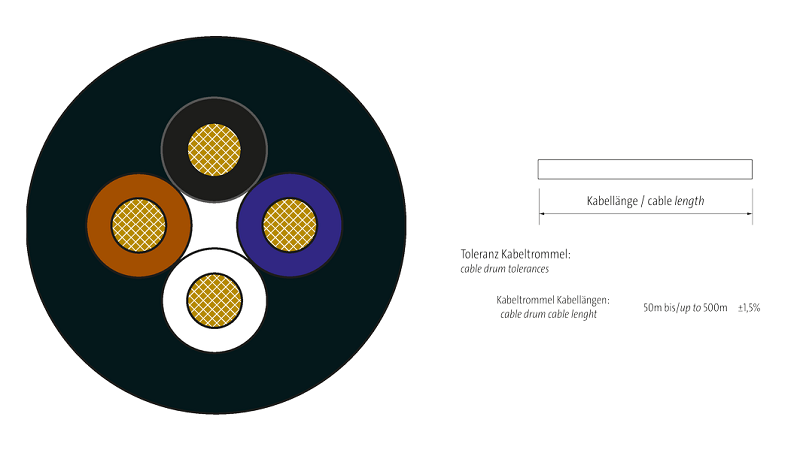

Cap-cuon-100m-Murrelektronik-7000-C0101-6340000-DETAIL

– Cáp có thể làm việc trong các điều kiện khắc nhiệt, khả năng chống lại tia UV, chống lửa, hóa chất, xăng dầu tốt, có thể chống lại tia lửa hàn

Sản phẩm tương tự – Cable drum

Thông số kỹ thuật – Cáp cuộn 100m 4 ruột Murrelektronik 7000-C0101-6340000

General data | Cable

Cable identification 654
Cable Type 5
Jacket Color black
Type of Certificate cURus

Structure | Cable

Amount stranding 1
Stranding 4 wires twisted
wire arrangement brown, black, blue, white

Mechanical data | Cable

Cable weigth 36,3 g/m
Material jacket PUR
Shore hardness jacket 58 ± 3 Shore D
Freedom from ingredients (jacket) lead-free, cadmium-free, CFC-free, halogen-free, silicone-free
Outer-diameter (jacket) 4,7 mm
Tolerance outer diameter (sheath) ± 5 %
Material wire insulation PP
Amount wires 4
Outer diameter insulation 1,25 mm
Outer diameter tolerance core insulation ± 5 %
Shore hardness wire insulation 74 ± 3 Shore D
Ingredient freeness wire insulation lead-free, cadmium-free, CFC-free, halogen-free, silicone-free
Amount strands (wire) 42
Diameter of single wires 0,1 mm
Conductor crosssection (wire) 0,34 mm²
Material conductor wire Stranded copper wire, bare
Conductor type (wire) strand class 6

Electrical data | Cable

Nominal voltage AC max. 300 V
Current load capacity (standard) to DIN VDE 0298-4
Current load capacity min. wire 4,8 A
Electrical resistance line constant wire 60 Ω/km @ 20 °C
AC withstand voltage (wire – wire) 2,5 kV @ 60 s
Power frequency withstand voltage (wire – jacket) 2,5 kV @ 60 s

Temperature range | Cable

Min. operating temperature (static) -40 °C
Max. operating temperature (fixed) 80 °C / 90 °C @ 10000 h Operation
Operating temperature min. (dynamic) -25 °C
Operating temperature max. (dynamic) 80 °C / 90 °C @ 10000 h Operation

Resistances | Cable

UV resistance DIN EN ISO 4892-2 A
Flame resistance UL 1581 § 1100 FT2 | IEC 60332-2-2 | UL 1581 § 1090
chemical resistance Good, application-related testing
Gasoline resistance Good, application-related testing
Oil resistance Good, application-related testing | DIN EN 60811-404
Welding spark resistance Good, application-related testing

Installation | Cable

Bending radius (fixed) 5 x Outer diameter
Bending radius (dynamic) 10 x Outer diameter
No. of bending cycles (C-track) 10 Mio. @ 25 °C
Traversing distance (C-track) 5 m @ 25 °C | horizontal
Travel speed (C-track) 3,3 m/s @ 25 °C
No. of torsion cycles 1 Mio.
Torsion stress ± 360 °/m
Torsion speed 35 cycles/min
