Cáp có đầu nối M8 male – M8 female A-code có cáp 0.3m Murrelektronik 7000-40341-6340700
– PUR 3×0.25 bk UL/CSA+drag ch. 0.3m

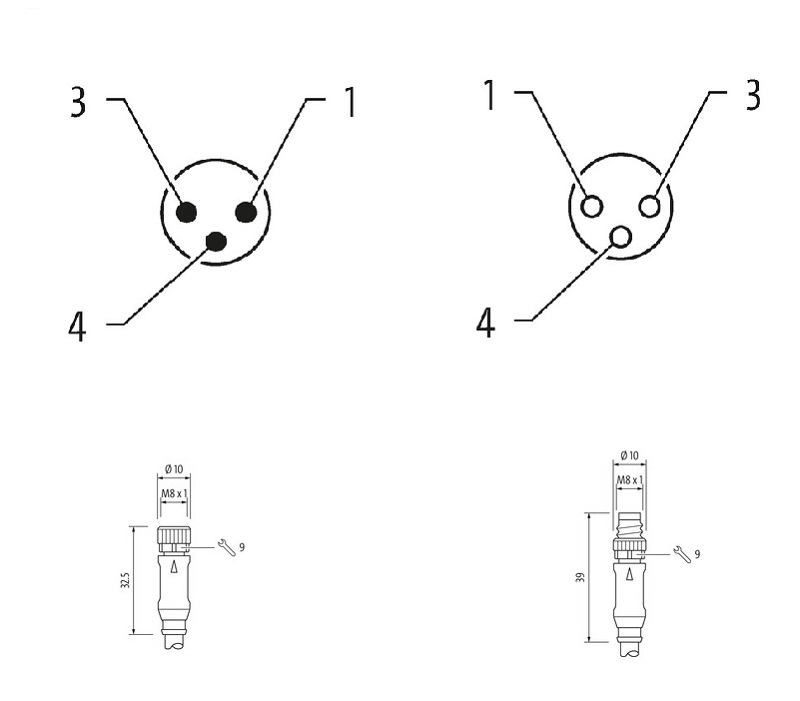

– M8 – M8, 3 chân, M8 male (đực)– M8 female (cái), A-cod
– inserted, screwed
– IP65, IP67, IP68, IP66K

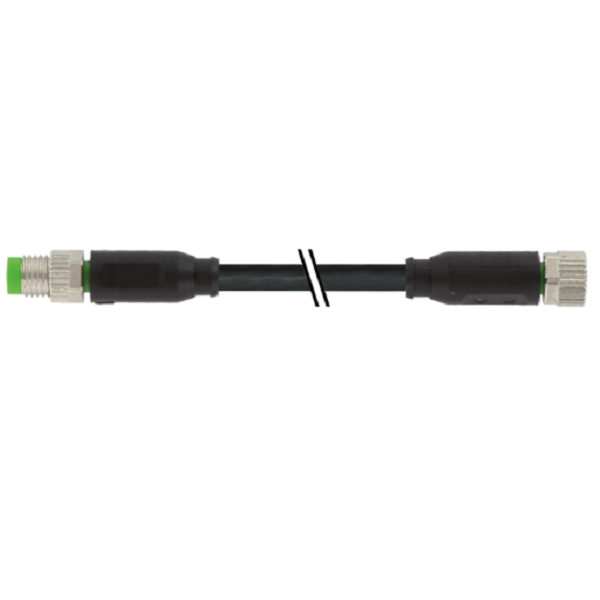

Cáp có đầu nối M8 male – M8 female A-code có cáp 0.3m Murrelektronik 7000-40341-6340700 là một loại cáp tín hiệu có 2 đầu nối M8
– PUR 3×0.25 bk UL/CSA+drag ch. 0.3m
– M8 – M8, 3 chân, M8 male (đực)– M8 female (cái), A-cod
– Vỏ nhựa có khả năng chống chịu hóa chất và dầu tốt
Thông số kỹ thuật – Cáp có đầu nối M8 male – M8 female A-code có cáp 0.3m Murrelektronik 7000-40341-6340700
| Cable length | 0,3 m |
|---|
| Tightening torque | 0,4 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M8 |
| Thread | M8 x 1 |
| suitable for corrugated tube (internal Ø) | 6,5 mm |
| Gender | male |
| Cable outlet | straight |
| Coding | A |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 3 |
| Width across flats | SW9 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
| Tightening torque | 0,4 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M8 |
| Thread | M8 x 1 |
| Gender | female |
| suitable for corrugated tube (internal Ø) | 6,5 mm |
| Cable outlet | straight |
| Coding | A |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 3 |
| Width across flats | SW9 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
| Operating voltage AC max. | 50 V |
|---|---|
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
| Status indication LED | no |
|---|
| Degree of protection (EN IEC 60529) | IP65, IP67, IP68, IP66K |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
| Material housing | PUR |
|---|---|
| Coating locking | Nickeled |
| Material gasket | FKM |
| Locking material | Zinc die-casting |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
|---|---|
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Product standard | DIN EN 61076-2-114 (M8) |
|---|
