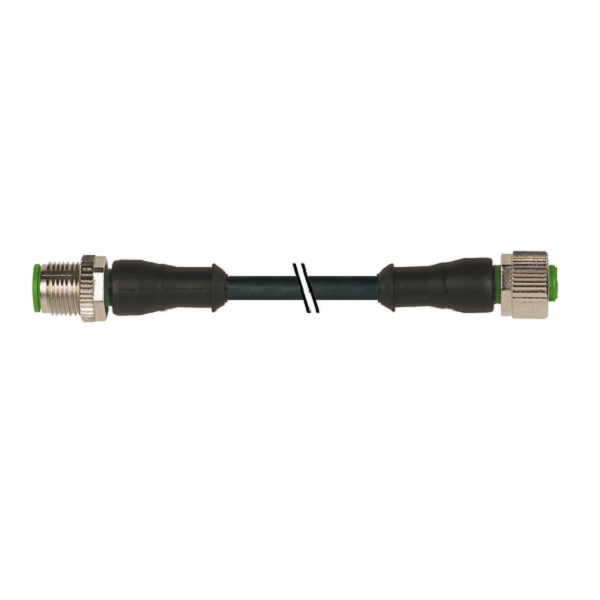

Cáp có đầu nối M12 male – M12 female A-code có cáp 1m Murrelektronik 7000-40021-6340100
– PUR 4×0.34 bk UL/CSA+drag ch. 1m
– M12 đực – M12 cái, 4 chân, A-code
– Inserted, screwed
– IP65, IP66K, IP67

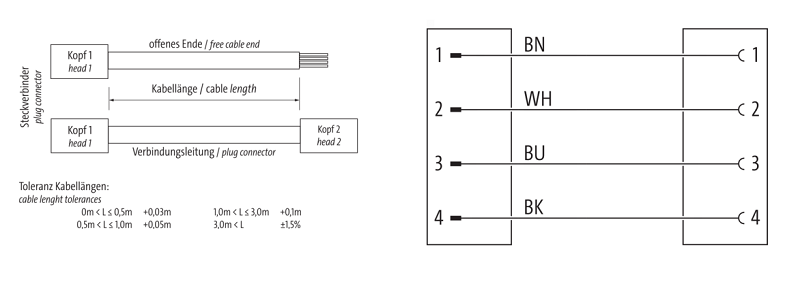

Cáp có đầu nối M12 male – M12 female A-code có cáp 1m Murrelektronik 7000-40021-6340100 là dây cáp kết nối có sẵn đầu nối M12, gồm đầu đực và đầu cái (cả hai dạng thẳng 0°), 4 chân, A-code
– PUR 4×0.34 bk UL/CSA+drag ch. 1m
– Có sẵn cáp dài 1m, 4 chân
– Vỏ chịu dầu và chống mài mòn, phù hợp dùng trong drag chain (xích kéo)
Thông số kỹ thuật – Cáp có đầu nối M12 male – M12 female A-code có cáp 1m Murrelektronik 7000-40021-6340100
| Cable length | 1.0 m |
|---|
| Family construction form | M12 |
|---|---|
| No. of poles | 4 |
| Coding | A |
| Gender | male |
| Mounting method | inserted, screwed |

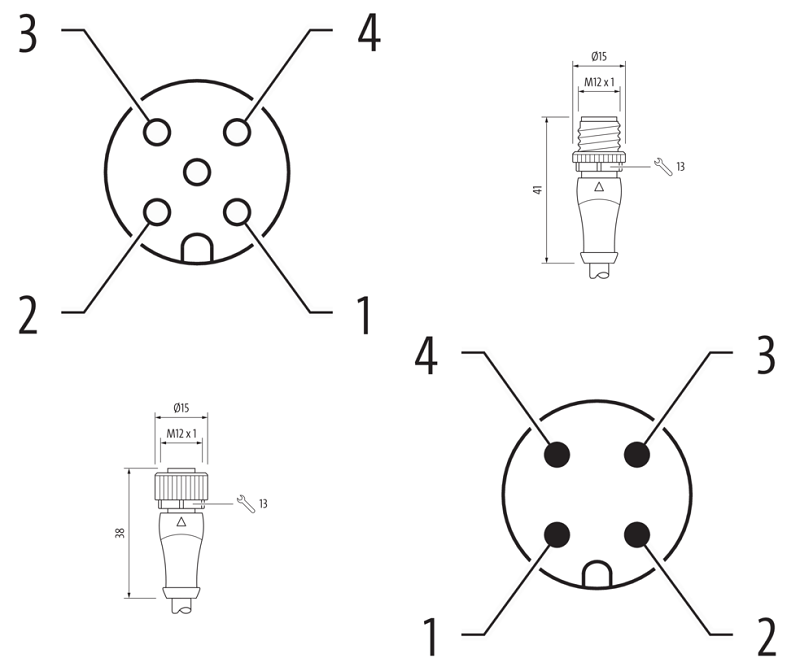

| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material | PUR |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Family construction form | M12 |
|---|---|
| No. of poles | 4 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material | PUR |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Operating voltage AC max. | 250 V |
|---|---|
| Operating voltage DC max. | 250 V |
| Current operating per contact max. | 4 A |
| Status indication LED | no |
|---|
| Mounting set | M12 x 1 |
|---|
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
| Rated surge voltage | 2.5 kV |
| Material group (IEC 60664-1) | I |
| Color contact carrier | green |
|---|---|
| Material screw connection | Zinc die-casting |
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Product standard | DIN EN 61076-2-101 (M12) |
|---|
