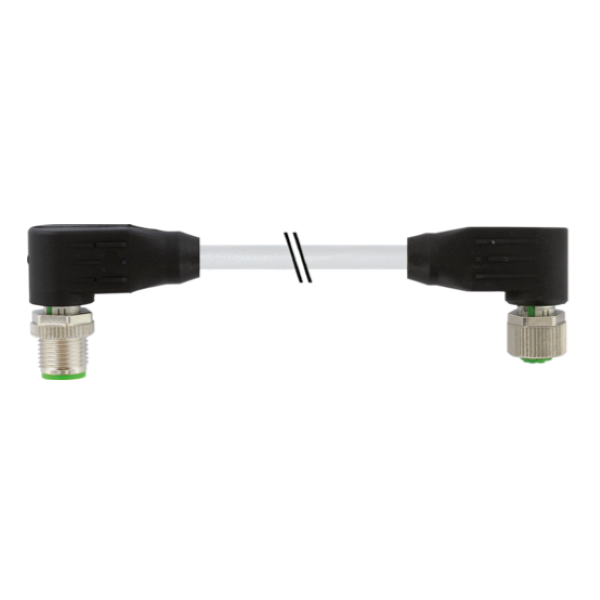

Cáp có đầu nối M12 male 90° – M12 female 90° A-code 7000-48071-2910200
– M12 đực (90°) – M12 cái(90°), 8 chân, A-code, chiều dài cáp 2 mét
– PUR 8×0.25 shielded gy UL/CSA+drag ch. 2m
– Inserted, screwed
– IP65, IP67, IP66K
Cáp có đầu nối M12 male 90° – M12 female 90° A-code 7000-48071-2910200 là dây cáp kết nối tín hiệu có 2 đầu nối loại M12, gồm đầu đực 90° và cái 90°, 8 chân, A-coded
Có sẵn cáp dài 2 mét, có bọc chống nhiễu, chịu dầu và chống hóa chất tốt
(PUR 8×0.25 shielded gy UL/CSA+drag ch. 2m)
Sản phẩm khác – Đầu nối M12 – M12

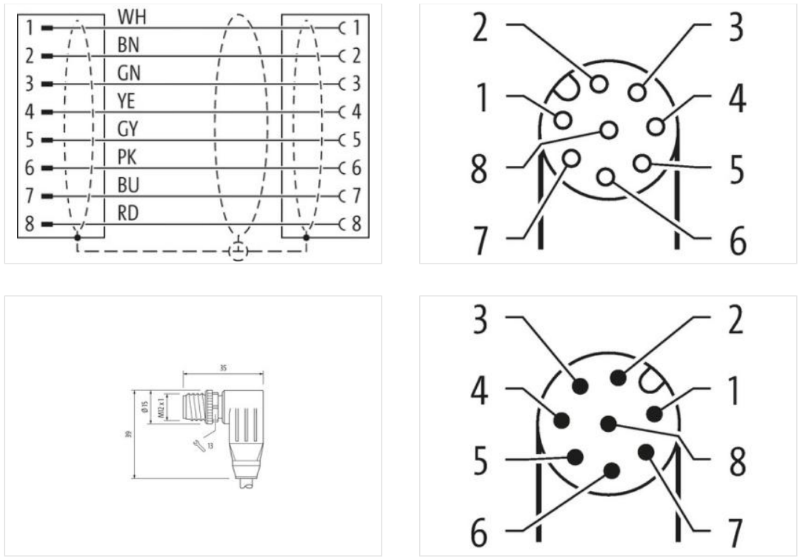

Thông số kỹ thuật – Cáp có đầu nối M12 male 90° – M12 female 90° A-code 7000-48071-2910200
| Cable length | 2 m |
Side 1
| Tightening torque | 0,6 Nm |
| Mounting method | inserted, screwed |
| Family construction form | M12 |

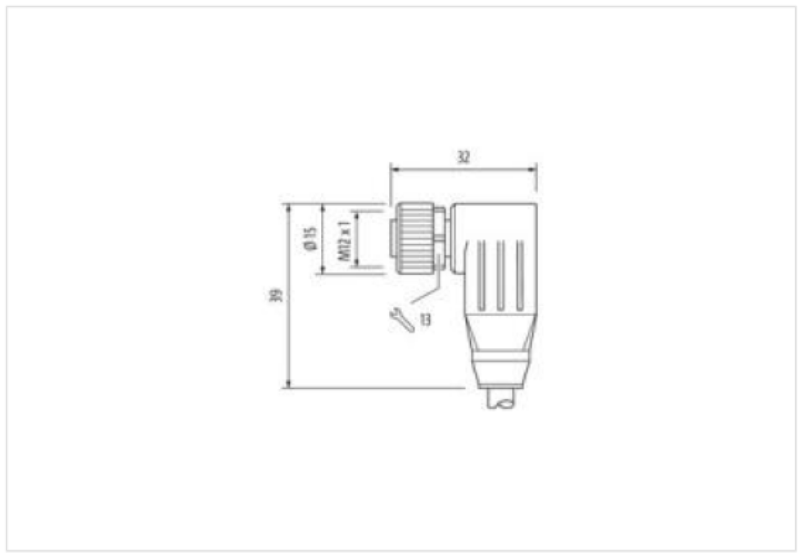

| Thread | M12 x 1 |
| Cable outlet | angled |
| Coding | A |
| No. of poles | 8 |
| Width across flats | SW13 |
Side 2
| Tightening torque | 0,6 Nm |
| Mounting method | inserted, screwed |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Cable outlet | angled |
| Coding | A |
| No. of poles | 8 |
| Width across flats | SW13 |
Electrical data | Supply
| Operating voltage AC max. | 30 V |
| Operating voltage DC max. | 30 V |
| Operating voltage AC (UL-listed) | 30 V |
| Operating voltage DC (UL-listed) | 30 V |
| Current operating per contact max. | 2 A |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP65, IP67, IP66K |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 0,8 kV |
| Material group (IEC 60664-1) | I |
Mechanical data
| Contour for corrugated hose | without |
Mechanical data | Material data
| Coating locking | Nickeled |
| Locking material | Zinc die-casting |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
Conformity
| Product standard | DIN EN 61076-2-101 (M12) |
