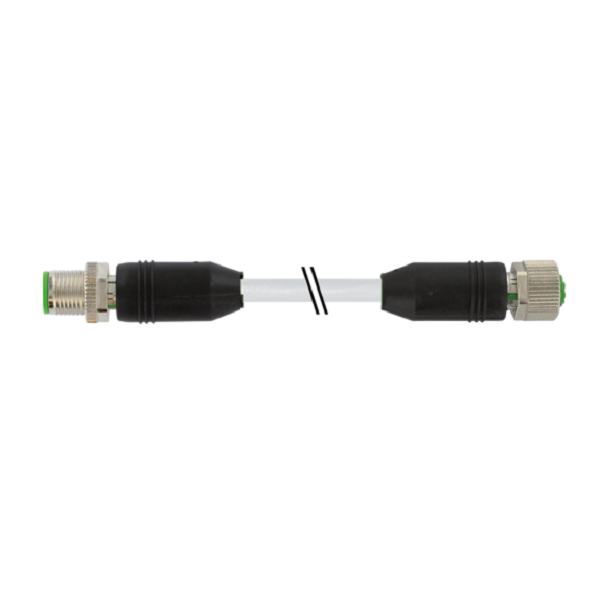

Cáp có đầu nối M12 male 0°-M12 female 0° Murrelektronik 7000-40021-8620500
– PUR 4×0.75 gy UL/CSA 5m
– M12 đực 0° – M12 cái 0°, 4 chân, A-cod
– Inserted, screwed
– IP65, IP67
Cáp có đầu nối M12 male 0°-M12 female 0° Murrelektronik 7000-40021-8620500 là một cáp tín hiệu dùng để kết nối hai thiết bị có cổng M12
– PUR 4×0.75 gy UL/CSA 5m
– M12 đực (0°) – M12 cái (0°), 4 chân, A-cod
– Vỏ nhựa có khả năng chống hóa chất và dầu tốt
Thông số kỹ thuật – Cáp có đầu nối M12 male 0°-M12 female 0° Murrelektronik 7000-40021-8620500
| Cable length | 5 m |
|---|
| Tightening torque | 0,6 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Family construction form | M12 |
| Material | PUR |
| Width across flats | SW13 |
| Tightening torque | 0,6 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Family construction form | M12 |
| Material | PUR |
| Width across flats | SW13 |
| Operating voltage AC max. | 250 V |
|---|---|
| Operating voltage DC max. | 250 V |
| Mounting set | M12 x 1 |
|---|
| Coating of fitting | nickel plated |
|---|---|
| Material screw connection | Zinc die-casting |
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
|---|---|
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
