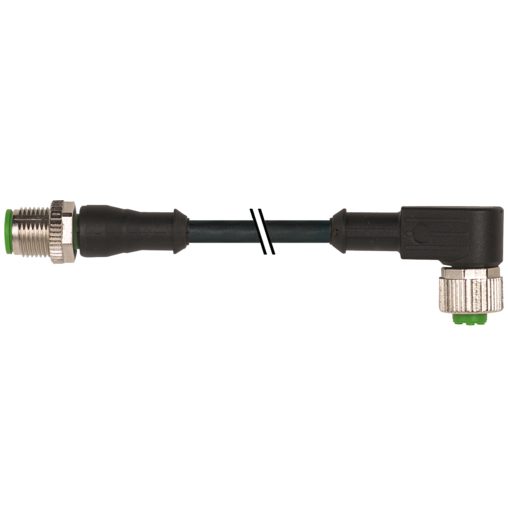

Cáp có đầu nối M12 – M12 Murrelektronik 7000-40121-6341000
– PUR 4×0.34 bk UL/CSA+drag ch., chiều dài cáp 10 mét

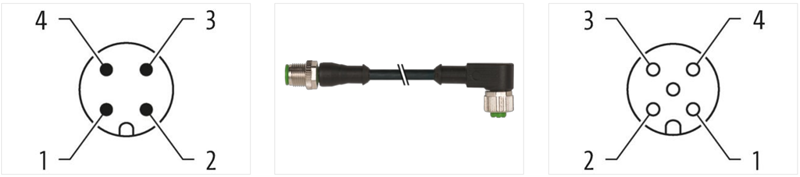

– M12 đực 0° – M12 cái 90°, 4 chân, A-code
– Inserted, screwed
– IP65, IP66K, IP67
Cáp có đầu nối M12 – M12 Murrelektronik 7000-40121-6341000 là một cáp tín hiệu dùng để kết nối hai thiết bị có cổng M12
– PUR 4×0.34 bk UL/CSA+drag ch., chiều dài cáp 10 mét
– M12 đực 0° – M12 cái 90°, 4 chân, A-code
– Inserted, screwed
– Vỏ nhựa có khả năng chống hóa chất và dầu tốt
Sản phẩm tương tự: Murrelektronik – Đầu nối M12 – M12 có cáp

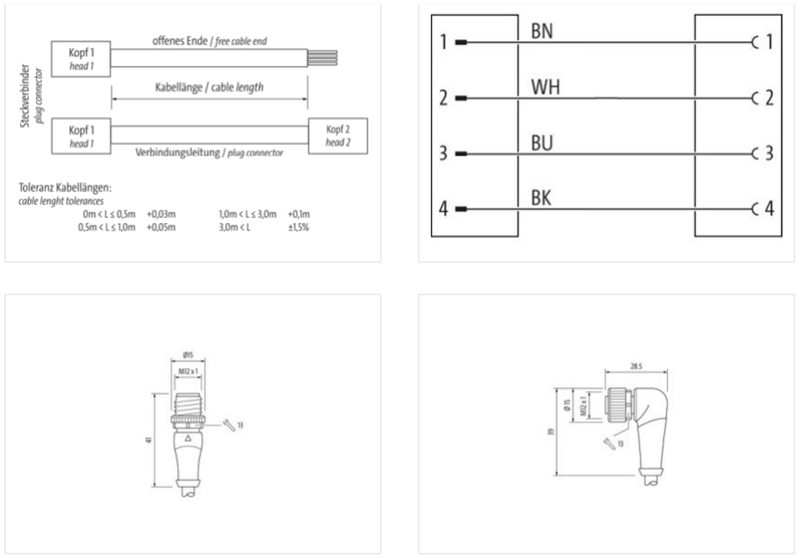

Thông số kỹ thuật – Đầu nối M12 – M12 A-code có cáp Murrelektronik 7000-40001-6330300
| Cable length | 3 m |
Side 1
| Tightening torque | 0,6 Nm |
| Mounting method | inserted, screwed |
| Family construction form | M12 |
| Thread | M12 x 1 |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Gender | male |
| Cable outlet | straight |
| Coding | A |
| Material | PUR |
| No. of poles | 3 |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
Side 2
| Tightening torque | 0,6 Nm |
| Mounting method | inserted, screwed |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Gender | female |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Cable outlet | straight |
| Coding | A |
| Material | PUR |
| No. of poles | 3 |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
Electrical data | Supply
| Operating voltage AC max. | 250 V |
| Operating voltage DC max. | 250 V |
| Current operating per contact max. | 4 A |
Diagnostics
| Status indication LED | no |
Installation | Connection
| Mounting set | M12 x 1 |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 2,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Coating locking | Nickeled |
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Material screw connection | Zinc die-casting |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
