Cáp có đầu nối 7/8 đực – M12 cái L-code 7000-P4541-P042000
– PUR 5×1.5 bk UL/CSA+drag ch. 20m
– 7/8″ (đực, 0°) – M12 (cái, 0°), 5 chân, L-code, chiều dài cáp 20 mét
– Inserted, screwed, Shaking protection
– IP67

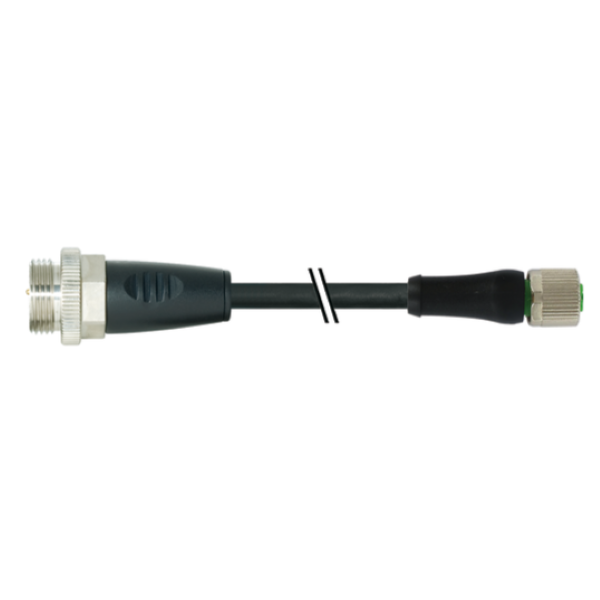

Cáp có đầu nối 7/8 đực – M12 cái L-code 7000-P4541-P042000 là dây cáp kết nối giữa đầu nối 7/8″ đực 0° và M12 cái 0°, 5 chân, L-coded
Cáp dài 20 mét, chịu dầu và chống mài mòn
(PUR 5×1.5 bk UL/CSA+drag ch. 20m)

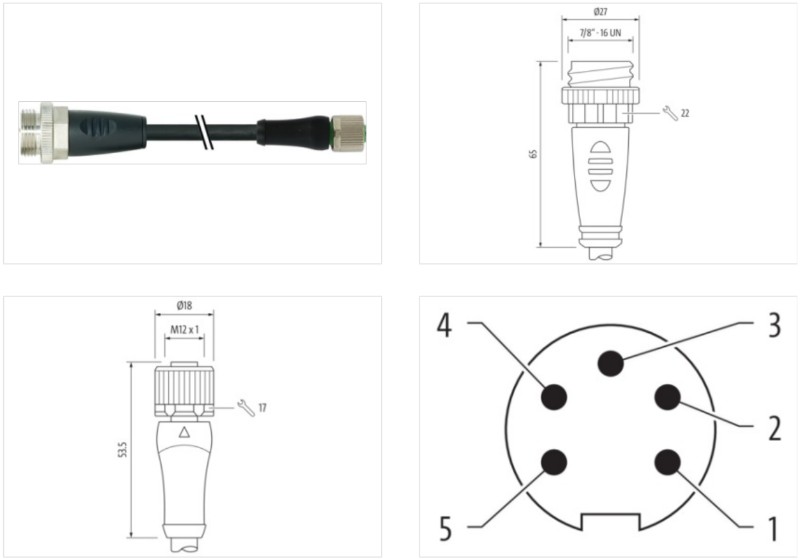

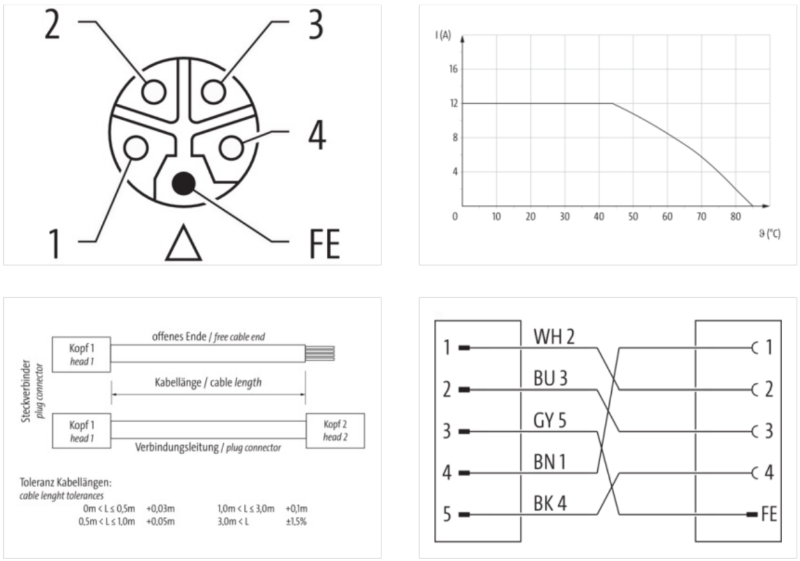

Thông số kỹ thuật – Cáp có đầu nối 7/8 đực – M12 cái L-code 7000-P4541-P042000
Side 1
| Family construction form | 7/8″ |
| No. of poles | 5 |
| Gender | male |
| Mounting method | inserted, screwed |
| Thread | 7/8″ |
| Tightening torque | 1.5 Nm |
| Width across flats | SW22 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 15.8 mm |
| Degree of protection (EN IEC 60529) | IP67 |
Side 2
| Family construction form | M12P |
| No. of poles | 5 |
| Coding | L |
| Gender | female |
| Mounting method | inserted, screwed |
| Thread | M12 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW17 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 12 mm |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67 |
Electrical data | Supply
| Operating voltage DC max. | 63 V |
| Current operating per contact max. | 12 A |
Installation | Connection
| Mating cycles min. | 100 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67 |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1.5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Material housing | PUR |
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
| Material gasket | FKM |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | IEC 61076-2-111 |
