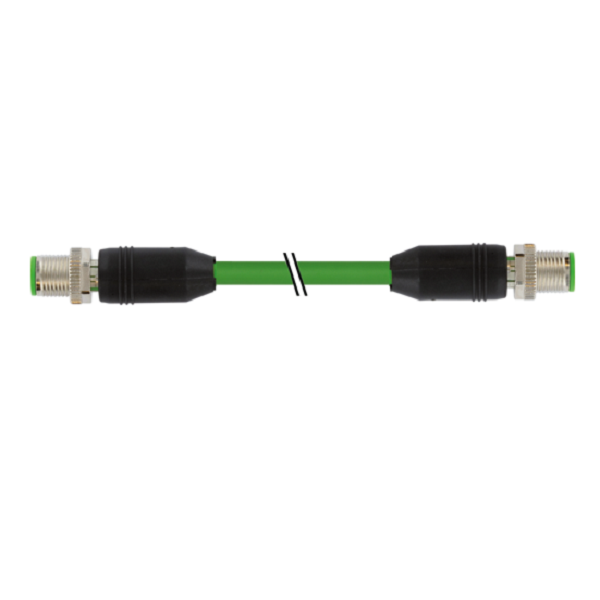

Cáp chống nhiễu 5m có đầu nối M12 male-M12 male D-code 7000-44511-7960500
– M12 male 0°- M12 male 0°
– Có sẵn cáp dài 5m, 4 chân, D-code
– Tốt độ truyền dữ liệu: 100 MBit/s
– inserted, screwed
– IP65, IP66K, IP67

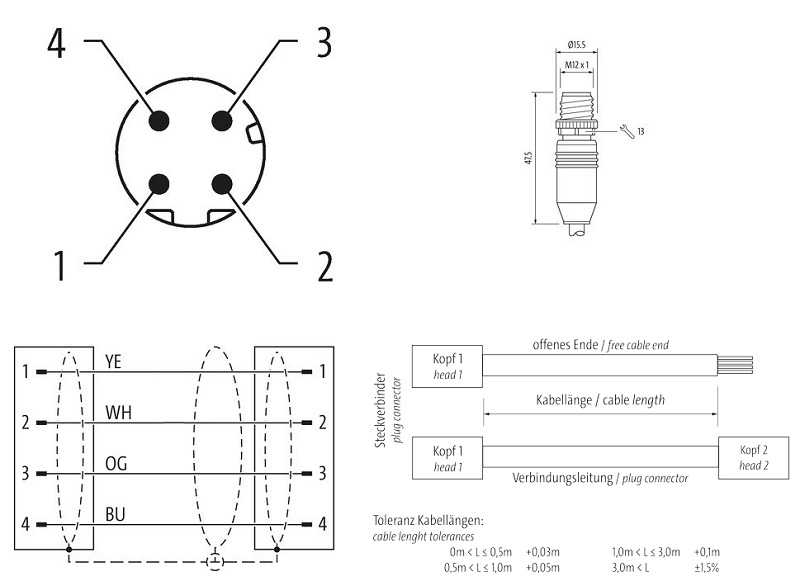

Cáp chống nhiễu 5m có đầu nối M12 male-M12 male D-code 7000-44511-7960500 là một cáp truyền dữ liệu công nghiệp Ethernet CAT5e, M12 male – M12 male 4 chân, D-code
(PUR 1x4xAWG22 shielded gn UL/CSA+drag ch. 5m)
– M12 male 0°- M12 male 0°
– Có sẵn cáp dài 5m, 4 chân, D-code
– Tốt độ truyền dữ liệu: 100 MBit/s
– Vỏ nhựa có khả năng chống hóa chất và dầu tốt
Sản phẩm tương tự – Cáp chống nhiễu 15m có đầu nối M12 male-M12 male D-code 7000-44511-7961500
Thông số kỹ thuật – Cáp chống nhiễu 5m có đầu nối M12 male-M12 male D-code 7000-44511-7960500
| Cable length | 5 m |
|---|
| Tightening torque | 0,6 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Gender | male |
| Cable outlet | straight |
| Coding | D |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 4 |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
| Tightening torque | 0,6 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Gender | male |
| Cable outlet | straight |
| Coding | D |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 4 |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
| Operating voltage DC max. | 60 V |
|---|---|
| Current operating per contact max. | 1,5 A |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
|---|---|
| Data transmission rate max. | 100 MBit/s |
| duplex | Full duplex |
|---|
| Degree of protection (EN IEC 60529) | IP65, IP67, IP66K |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
| Contour for corrugated hose | without |
|---|
| Coating of fitting | nickel plated |
|---|---|
| Material screw connection | Zinc die-casting |
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
|---|---|
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Product standard | DIN EN 61076-2-101 (M12) |
|---|
