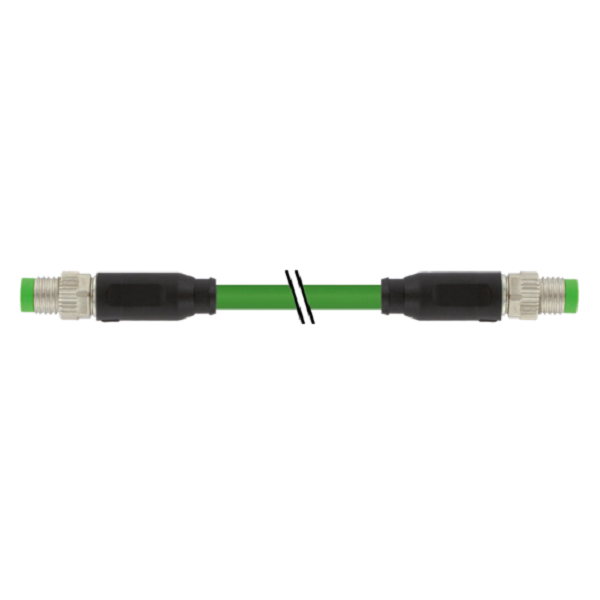

Cáp chống nhiễu 1.5m có đầu nối M8 male-M8 male A-code của Murrelektronik 7000-89701-7910150

– PUR 1x4xAWG26 shielded gn UL/CSA+drag ch. 1.5m
– M8 male 0°– M8 male 0°, 4 chân, A-cod

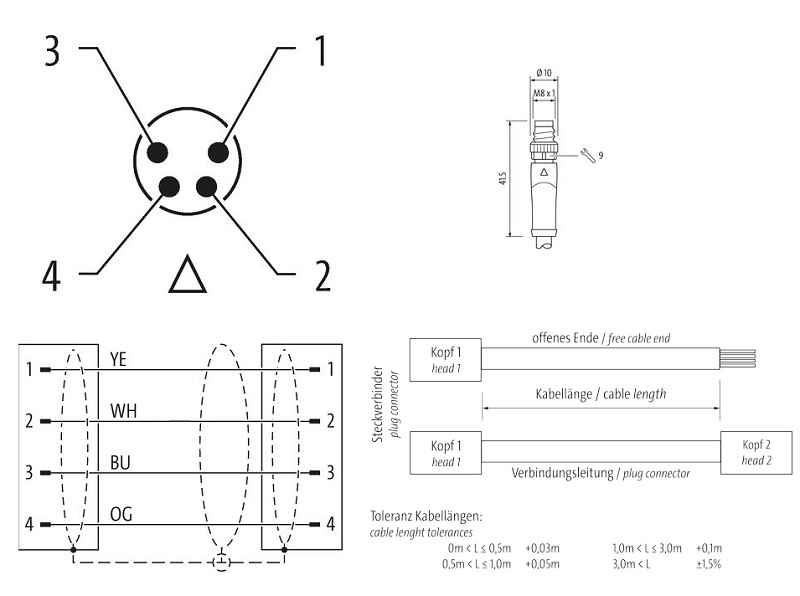

Cáp chống nhiễu 1.5m có đầu nối M8 male-M8 male A-code của Murrelektronik 7000-89701-7910150 - detail

– Vỏ nhựa có khả năng chống chịu hóa chất và dầu tốt

Thông số kỹ thuật – Cáp chống nhiễu 1.5m có đầu nối M8 male-M8 male A-code của Murrelektronik 7000-89701-7910150

Cable length	1,5 m

Side 1

Tightening torque	0,4 Nm
Mounting method	inserted, screwed
Coating contact	gold plated
Family construction form	M8
Thread	M8 x 1
suitable for corrugated tube (internal Ø)	8,5 mm
Material contact	Copper alloy
No. of poles	4
Width across flats	SW9

Side 2

Electrical data | Supply

Operating voltage DC max.	60 V
Current operating per contact max.	1,5 A

Industrial communication

Transfer parameters	With reference to CAT5, Class D (ISO/IEC 11801)
Data transmission rate max.	100 MBit/s

Diagnostics

Status indication LED	no

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP65, IP67, IP68, IP66K
Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	1,5 kV
Material group (IEC 60664-1)	I

Mechanical data | Material data

Mechanical data | Mounting data

Mounting method	inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-25 °C
Operating temperature max.	85 °C
Additional condition temperature range	depending on cable quality

Important installation notes

Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Conformity

Product standard	DIN EN 61076-2-114 (M8)
