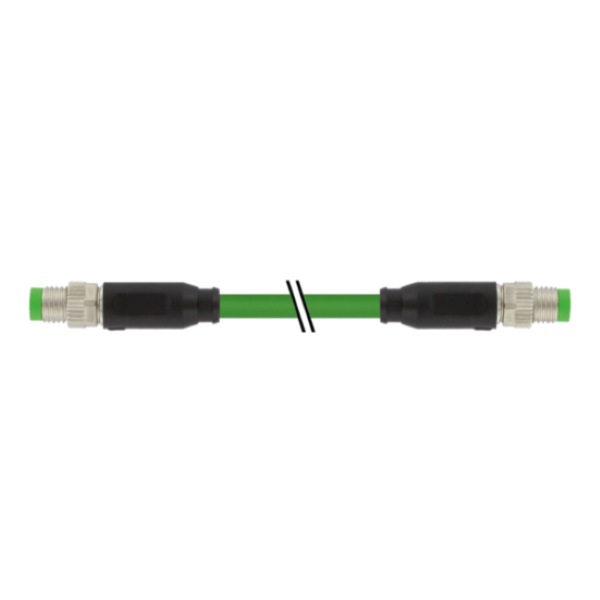

Cáp bọc chống nhiễu 1.5m có 2 đầu nối M8 A-code 7000-89701-7910150
– M8 đực – M8 đực, 4 chân, A-code, chiều dài cáp 1.5 mét
– Có bọc giáp chống nhiễu
– inserted, screwed
– IP65, IP67, IP68, IP66K

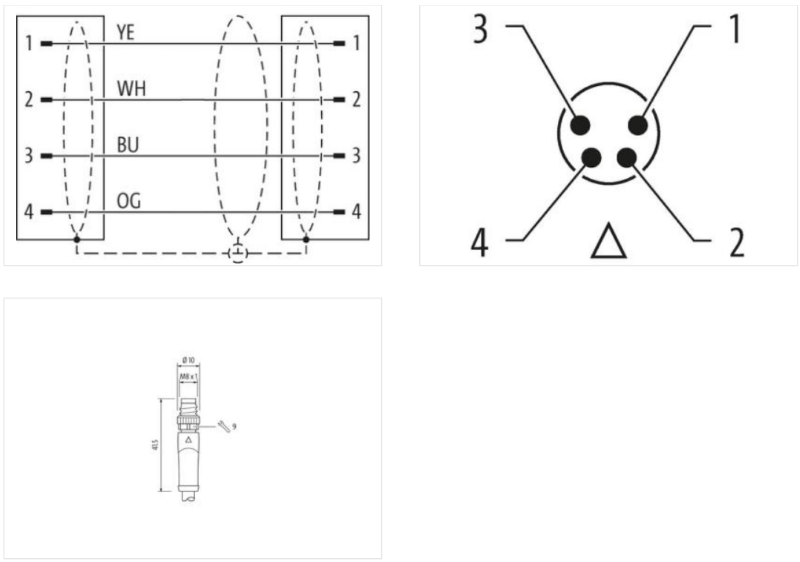

Cáp bọc chống nhiễu 1.5m có 2 đầu nối M8 A-code 7000-89701-7910150 là dây cáp kết nối loại M8, gồm 2 đầu đực, dạng thẳng 0°, 4 chân, A-coded.
Có sẵn cáp dài 1.5 mét, có bọc chống nhiễu, chịu dầu và chống hóa chất tốt
Cáp phù hợp cho drag chain
(PUR 1x4xAWG26 shielded gn UL/CSA+drag ch. 1.5m )
Sản phẩm tương tự – Cáp chống nhiễu 1.5m có đầu nối M8 male-M8 male A-code của Murrelektronik 7000-89701-7910150
Thông số kỹ thuật – Cáp bọc chống nhiễu 1.5m có 2 đầu nối M8 A-code 7000-89701-7910150
| Cable length | 1,5 m |
Side 1
| Tightening torque | 0,4 Nm |
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M8 |
| Thread | M8 x 1 |
| suitable for corrugated tube (internal Ø) | 8,5 mm |
| Material contact | Copper alloy |
| No. of poles | 4 |
| Width across flats | SW9 |
Side 2
| Tightening torque | 0,4 Nm |
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M8 |
| Thread | M8 x 1 |
| Material contact | Copper alloy |
| No. of poles | 4 |
Electrical data | Supply
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 1,5 A |
Industrial communication
| Transfer parameters | With reference to CAT5, Class D (ISO/IEC 11801) |
| Data transmission rate max. | 100 MBit/s |
Diagnostics
| Status indication LED | no |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP65, IP67, IP68, IP66K |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Material housing | PUR |
| Coating locking | nickel plated |
| Locking material | Brass |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
Conformity
| Product standard | DIN EN 61076-2-114 (M8) |
