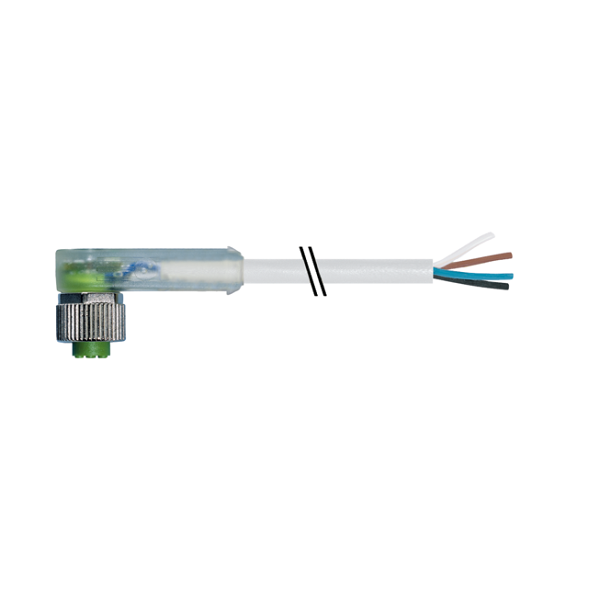

Cáp 8m có đầu nối M12 female 90° A-code 4 chân có LED

Cáp 8m có đầu nối M12 female 90° A-code 4 chân có LED 7000-12421-2340800: là đầu nối 90° có sẵn cáp dài 8m, M12, 4 chân, female, A-code

– PUR 4×0.34 gy UL/CSA+drag ch. 8m
– Cáp có thể hoạt động ổn định trong tình trạng bị uốn cong và kéo dài liên tục
– Có LED báo trạng thái ( X3 LED PNP)

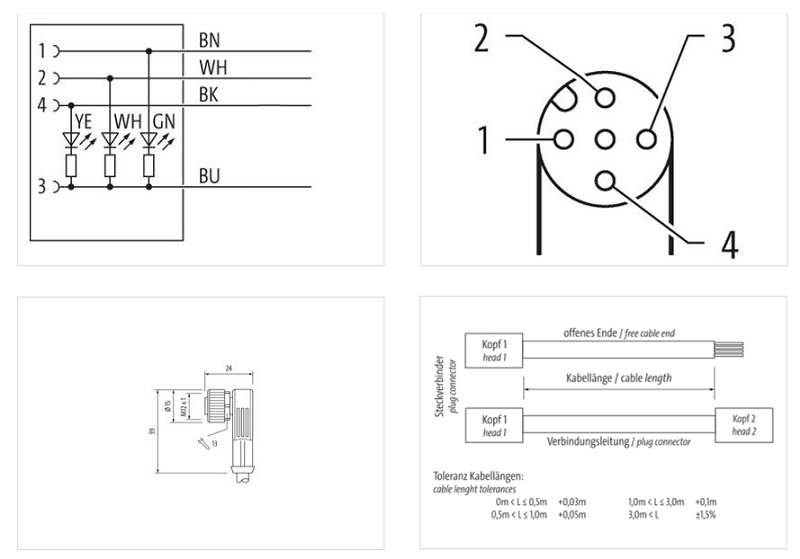

Cáp 8m có đầu nối M12 female 90° A-code 4 chân có LED 7000-12421-2340800 - DETAIL
– Vỏ nhựa có khả năng chống chịu hóa chất và dầu tốt

Sản phẩm tương tự

Thông số kỹ thuật – Cáp 8m có đầu nối M12 female 90° A-code 4 chân có LED 7000-12421-2340800

Cable length	8 m

Side 1

Tightening torque	0,6 Nm
Mounting method	inserted, screwed
Coating contact	gold plated
Family construction form	M12
Thread	M12 x 1
suitable for corrugated tube (internal Ø)	10 mm
Cable outlet	angled
Coding	A
Material contact	Copper alloy
Material	PUR
No. of poles	4
Width across flats	SW13
Degree of protection (EN IEC 60529)	IP65, IP66K, IP67

Side 2

Stripping length (jacket)	20 mm
Family construction form	free cable end

Electrical data | Supply

Operating voltage DC	24 V
Operating voltage DC min.	18 V
Operating voltage DC max.	30 V
Operating voltage DC max. (UL-listed)	30 V
Current operating per contact max.	4 A

Diagnostics

Status indication LED	green, white, yellow

Installation | Connection

Stripping length (jacket)	20 mm
Mounting set	M12 x 1
Gender	female

Device protection | Electrical

Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	0,8 kV
Material group (IEC 60664-1)	I

Mechanical data | Material data

Coating locking	Nickeled
Coating of fitting	nickel plated
Locking material	Zinc die-casting
Material screw connection	Zinc die-casting

Mechanical data | Mounting data

Mounting method	inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-30 °C
Operating temperature max.	85 °C
Additional condition temperature range	depending on cable quality

Important installation notes

Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Conformity

Product standard	DIN EN 61076-2-101 (M12)
