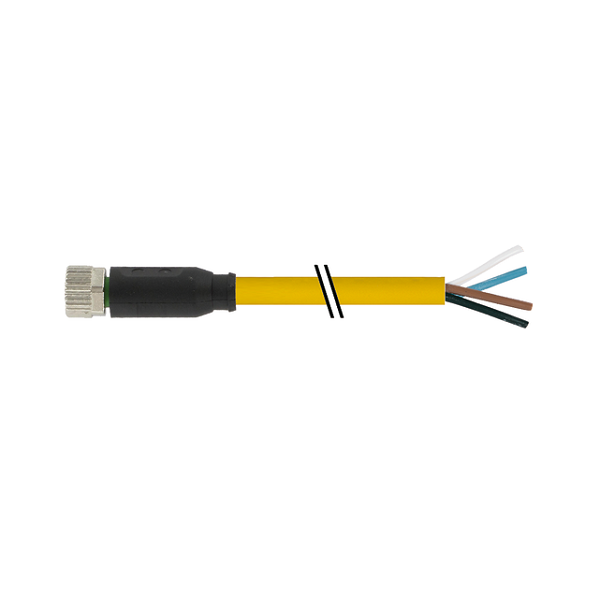

Cáp 5m có đầu nối M8 female 0° A-code 4 chân 7000-08061-0310500: là đầu nối thẳng, có sẵn cáp dài 5m, M8, 4 chân, female, A-code
– PUR 4×0.25 ye UL/CSA+drag ch. 5m
– inserted, screwed
– Vỏ bọc bảo vệ tránh bụi bẩn và dầu tốt
Cáp 5m có đầu nối M8 female 0° A-code 4 chân
Cáp 5m có đầu nối M8 female 0° A-code 4 chân 7000-08061-0310500
– Là đầu nối 0°, có sẵn cáp dài 5m, M8
– Female, 4 chân, A-cod.
– Inserted, screwed terminal
– IP65, IP66K, IP67

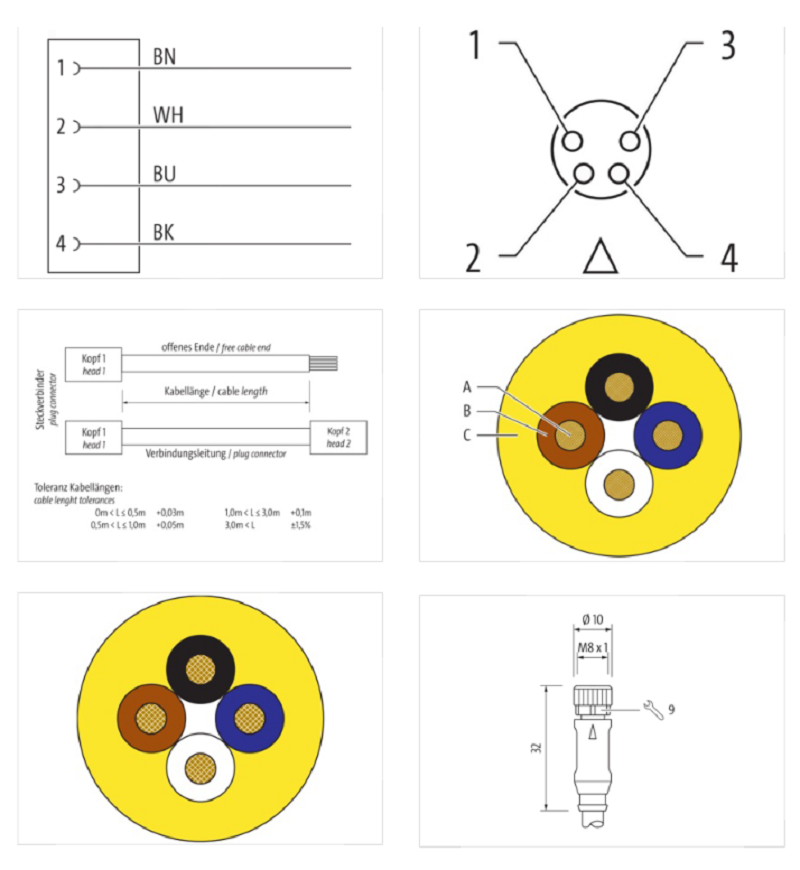

Thông số kỹ thuật – Cáp 5m có đầu nối M8 female 0° A-code 4 chân 7000-08061-0310500
Header
| Material short text | MSFL0-T031_5.0 |
|---|---|
| Cable length | 5,00 m |
Side 1
| Family construction form | M8 |
|---|---|
| No. of poles | 4 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Threaded hole | M8 x 1 |
| Tightening torque | 0,4 Nm |
| Width across flats | SW9 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 6,5 mm |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
Side 2
| Family construction form | Free cable end |
|---|---|
| Stripping length (jacket) | 20 mm |
Electrical data | Supply
| Operating voltage AC max. | 50 V |
|---|---|
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
Diagnostics
| Status indication LED | no |
|---|
Installation | Connection
| Mounting set | M8 x 1 |
|---|
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Material screw connection | Zinc die-casting |
|---|---|
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
| Material gasket | FKM |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
|---|
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | EN/IEC 61076-2-104 (M8) |
|---|
