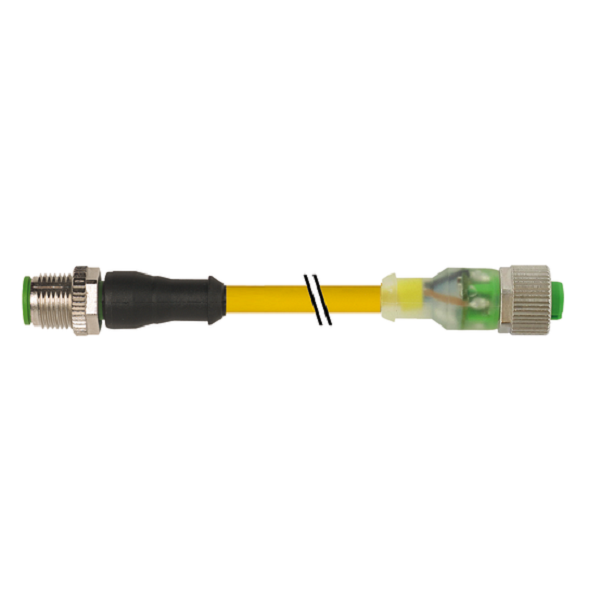

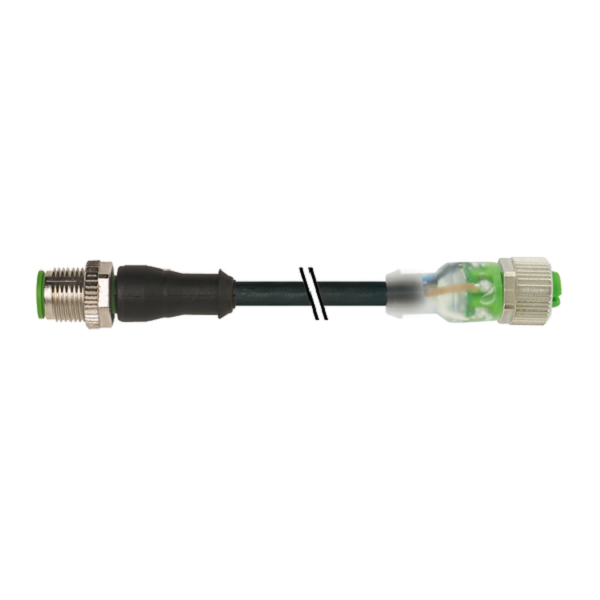

Cáp 5m có đầu nối M12 male 0° / M12 female 0° A-code 5 chân có LED 7000-40042-6350500
– PUR 5×0.34 bk UL/CSA+drag ch. 5m
– M12 đực 0° không có LED – M12 cái 0° có LED
– 5 chân, A-code, có độ dài cáp 5m
– Inserted, screwed
– IP67, IP66K, IP65
Cáp 5m có đầu nối M12 male 0° / M12 female 0° A-code 5 chân có LED 7000-40042-6350500: là một cáp tín hiệu dùng để kết nối hai thiết bị có cổng M12
– PUR 5×0.34 bk UL/CSA+drag ch. 5m
– M12 đực 0° không có LED – M12 cái 0° có LED
– 5 chân, A-code, có độ dài cáp 5m
– Inserted, screwed
– Vỏ nhựa có khả năng chống hóa chất và dầu tốt
Thông số kỹ thuật – Cáp 5m có đầu nối M12 male 0° / M12 female 0° A-code 5 chân có LED 7000-40042-6350500
| Cable length | 5.0 m |
|---|
| Family construction form | M12 |
|---|---|
| Coding | A |
| Mounting method | inserted, screwed |

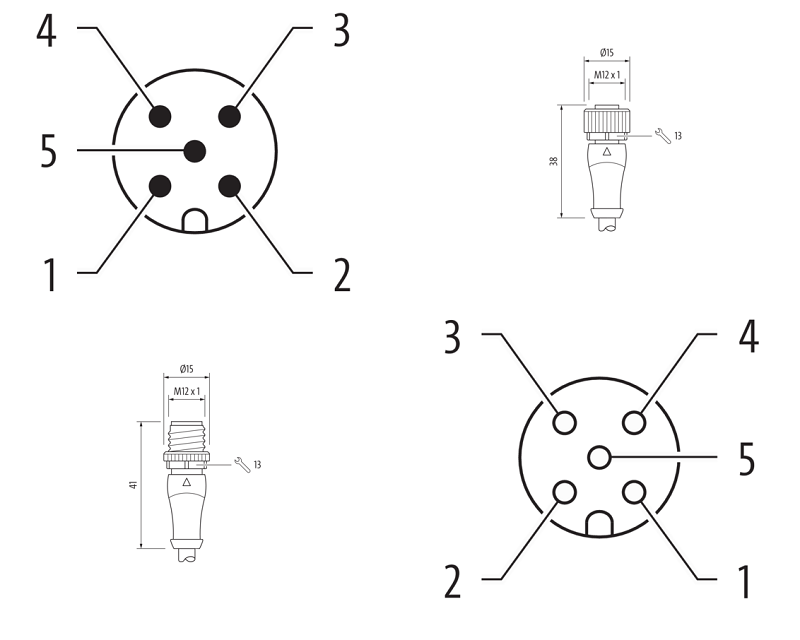

| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW13 |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material | PUR |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Family construction form | M12 |
|---|---|
| Coding | A |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW13 |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material | PUR |
| Operating voltage DC | 24 V |
|---|---|
| Operating voltage DC min. | 18 V |
| Operating voltage DC max. | 30 V |
| Current operating per contact max. | 4 A |

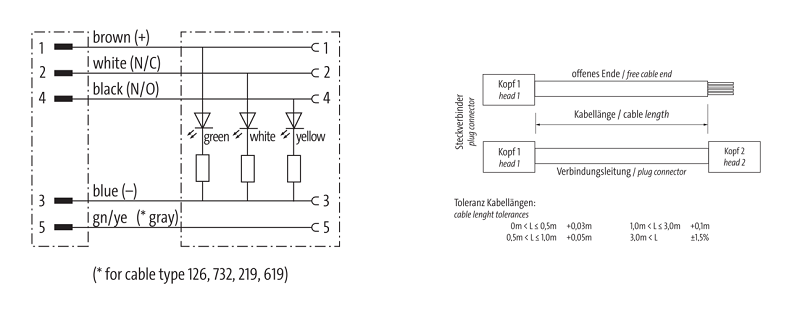

| Status indication LED | green, yellow, white |
|---|
| Mounting set | M12 x 1 |
|---|
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
| Rated surge voltage | 0.8 kV |
| Material group (IEC 60664-1) | I |
| Material screw connection | Zinc die-casting |
|---|---|
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
