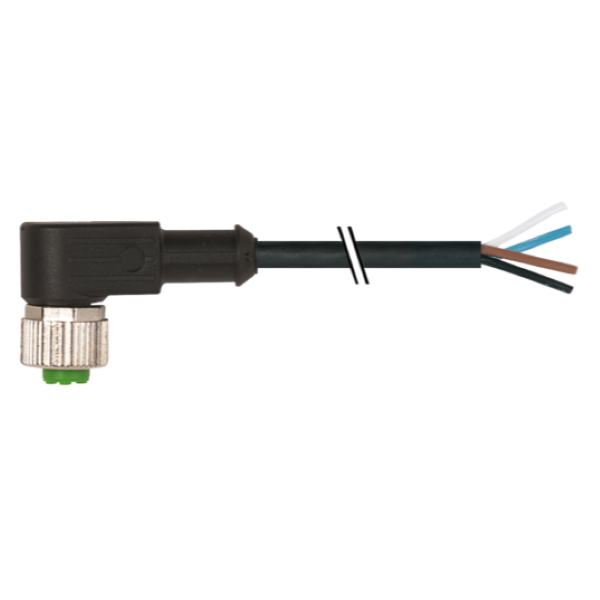

Cáp 5m có đầu nối M12 female 90° A-code 4 chân 7000-12341-6340500 của Murrelektronik
– PUR 4×0.34 bk UL/CSA+drag ch. 5m
– M12 cái (90°), 4 chân, A-code, chiều dài cáp 5 mét
– Inserted, screwed
– IP65, IP66K, IP67
Cáp 5m có đầu nối M12 female 90° A-code 4 chân 7000-12341-6340500 của Murrelektronik là dây cáp có đầu nối loại M12, female (đầu nối cái), 90°, 4 chân, A-code
Có sẵn cáp dài 5 mét, màu đen, chịu dầu và chống mài mòn, phù hợp dùng trong drag chain (xích kéo)
(PUR 4×0.34 bk UL/CSA+drag ch. 5m)
Sản phẩm tương tự – Đầu nối M12
Thông số kỹ thuật – Cáp 5m có đầu nối M12 female 90° A-code 4 chân 7000-12341-6340500 của Murrelektronik
| Cable length | 5 m |
Side 1
| Tightening torque | 0,6 Nm |
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M12 |
| Thread | M12 x 1 |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Cable outlet | angled |
| Coding | A |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 4 |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
Side 2
| Stripping length (jacket) | 20 mm |
| Family construction form | free cable end |
Electrical data | Supply
| Operating voltage AC max. | 250 V |
| Operating voltage DC max. | 250 V |
| Current operating per contact max. | 4 A |
Diagnostics
| Status indication LED | no |
Installation | Connection
| Stripping length (jacket) | 20 mm |
| Mounting set | M12 x 1 |
| Gender | female |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP65, IP67, IP66K |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 2,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Coating locking | Nickeled |
| Coating of fitting | nickel plated |
| Material gasket | FKM |
| Locking material | Zinc die-casting |
| Material screw connection | Zinc die-casting |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
Conformity
| Product standard | DIN EN 61076-2-101 (M12) |
