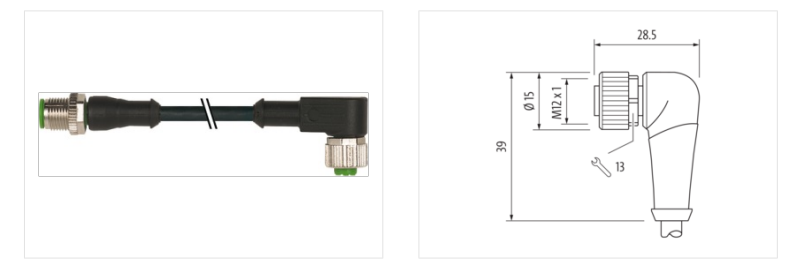

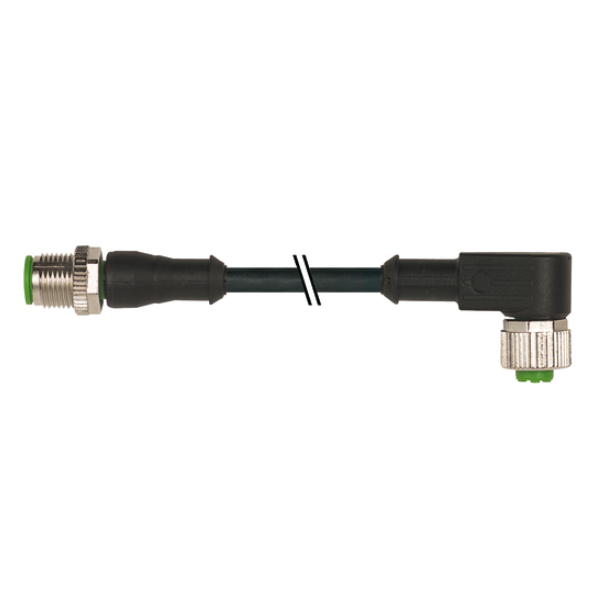

Cáp 5m có 2 đầu nối M12 male 0° / M12 female 90° A-code 4 chân 7000-40121-6340500
– PUR 4×0.34 bk UL/CSA+drag ch. 5m

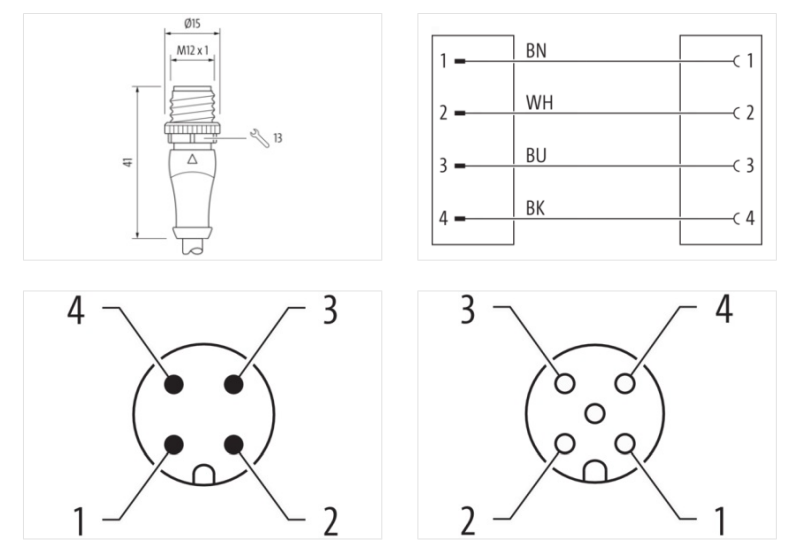

– M12 (đực, 0°) – M12 (cái, 90°) 4 chân, A-code, chiều dài cáp 5 mét
– Inserted, screwed, Shaking protection
– IP67, IP66K, IP65
Cáp 5m có 2 đầu nối M12 male 0° / M12 female 90° A-code 4 chân 7000-40121-6340500: là dây cáp có 2 đầu nối M12 (đực, 0°) – M12 (cái, 90°) 4 chân, A-code
(PUR 1x2xAWG24 shielded vt UL/CSA+drag ch. 4m)
– Dùng cho hệ thống điều khiển công nghiệp
– Có sẵn cáp dài 5 mét
– Vỏ bọc chịu dầu và chống mài mòn
Thông số kỹ thuật – Cáp 5m có 2 đầu nối M12 male 0° / M12 female 90° A-code 4 chân 7000-40121-6340500
| Material short text | MSDL0-A-T634_5.0 |
|---|---|

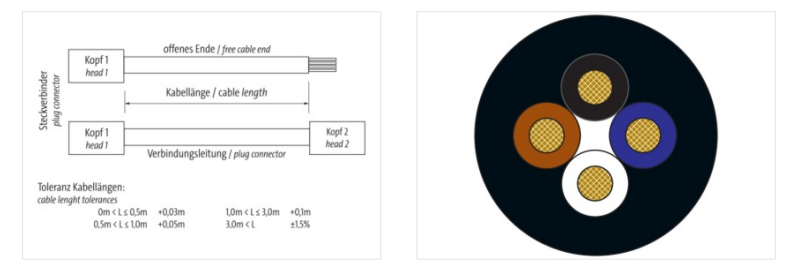

| Cable length | 5,00 m |
| Family construction form | M12 |
|---|---|
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material | PUR |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Family construction form | M12 |
|---|---|
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material | PUR |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Operating voltage AC max. | 250 V |
|---|---|
| Operating voltage DC max. | 250 V |
| Current operating per contact max. | 4 A |
| Mounting set | M12 x 1 |
|---|
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
| Material group (IEC 60664-1) | I |
| Material screw connection | Zinc die-casting |
|---|---|
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Product standard | EN IEC 61076-2-101 (M12) |
|---|
