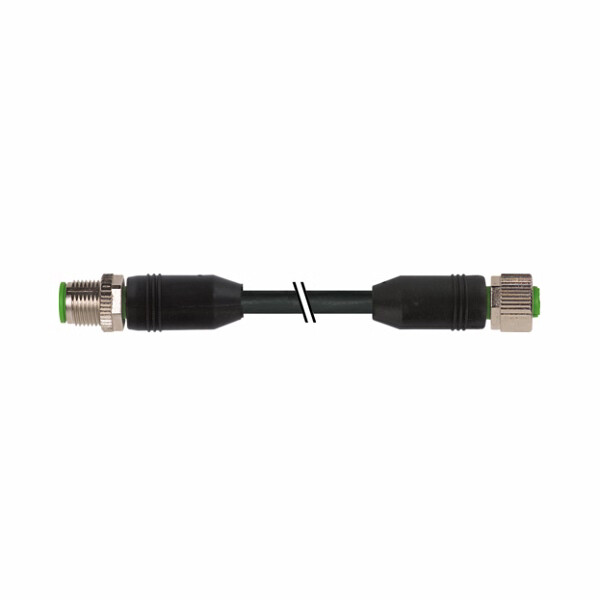

Cáp 5m có 2 đầu nối M12 male 0° / M12 female 0° 5 chân

Cáp 5m có 2 đầu nối M12 male 0° / M12 female 0° 5 chân 7999-40041-6380500

– PUR 5×0.75 bk UL/CSA+drag ch. 5m
– M12 đực 0°– M12 cái 0°, 5 chân, A-code, chiều dài cáp 5m
– Inserted, screwed
– IP67

– PUR 5×0.75 bk UL/CSA+drag ch. 5m
– M12 đực 0°– M12 cái 0°, 5 chân, A-code
– Chiều dài cáp 5m

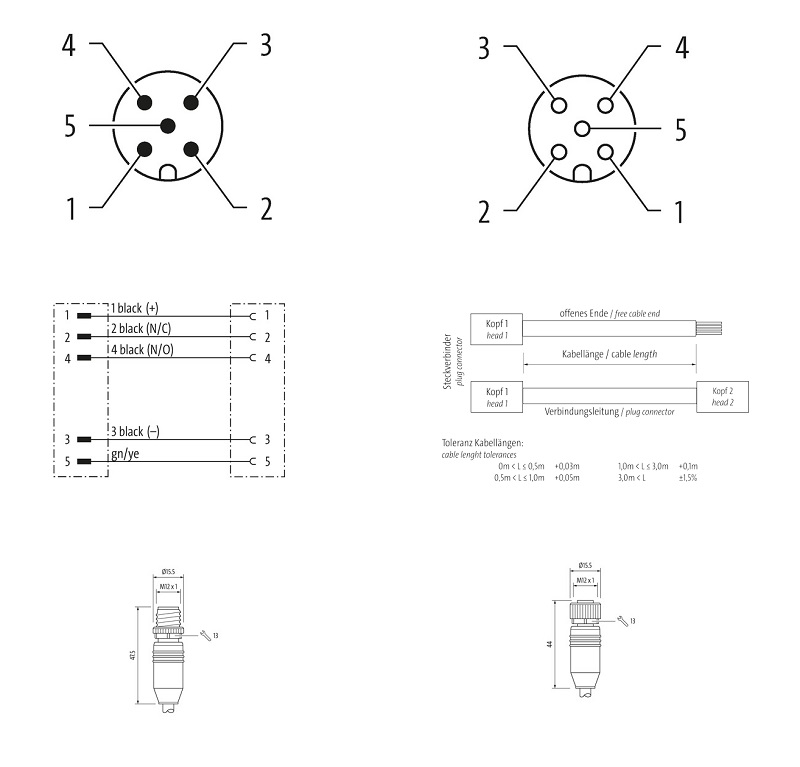

Cáp 5m có 2 đầu nối M12 male 0° / M12 female 0° 5 chân 7999-40041-6380500 - DETAIL
– Vỏ nhựa có khả năng chống hóa chất và dầu tốt

Thông số kỹ thuật – Cáp 5m có 2 đầu nối M12 male 0° / M12 female 0° 5 chân 7999-40041-6380500

Cable length	5 m

Side 1

Side 2

Electrical data | Supply

Operating voltage AC max.	125 V
Operating voltage DC max.	125 V
Operating voltage AC (UL-listed)	30 V
Operating voltage DC (UL-listed)	30 V
Current operating per contact max.	4 A

Diagnostics

Status indication LED	no

Device protection | Electrical

Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	1,5 kV
Material group (IEC 60664-1)	I

Mechanical data | Material data

Mechanical data | Mounting data

Mounting method	inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-30 °C
Operating temperature max.	85 °C
Additional condition temperature range	depending on cable quality

Important installation notes

Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Conformity

Product standard	DIN EN 61076-2-101 (M12)
