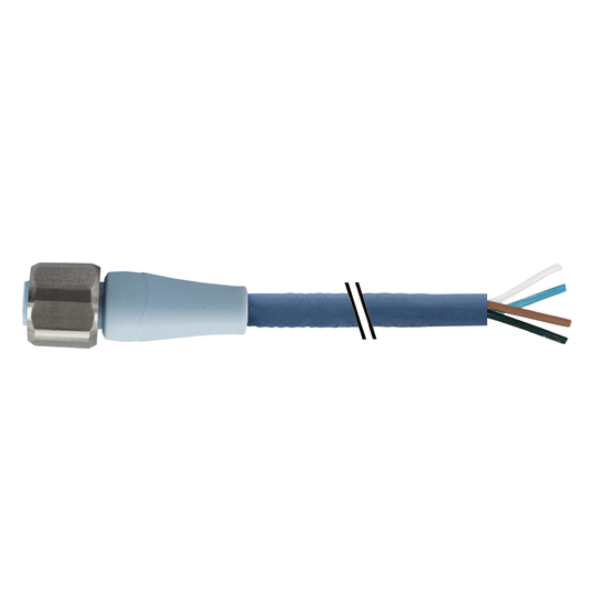

Cáp 5m cho thực phẩm có đầu nối M12 female 0° A-code 4 chân 7024-12221-3210500
– M12 cái(0°), 4 chân, A-code, chiều dài cáp 5 m
– (TPE-S 4×0.34 bu UL robot+drag ch. 5m)
– Inserted, screwed
– IP69K, IP68, IP65
Cáp 5m cho thực phẩm có đầu nối M12 female 0° A-code 4 chân 7024-12221-3210500: là cáp có 2 đầu nối loại M12, gồm đầu cái (0°), 4 chân, A-code
(TPE-S 4×0.34 bu UL robot+drag ch. 5m)
– Có sẵn cáp dài 5 m, chịu dầu và chống hóa chất tốt
– Được sử dụng trong ngành công nghiệp thực phẩm
– Có khả năng chống mài mòn và phù hợp với môi trường công nghiệp
Thông số kỹ thuật – Cáp 5m cho thực phẩm có đầu nối M12 female 0° A-code 4 chân 7024-12221-3210500
Header
| Material short text | MSBL0-T321_5.0-S24 |

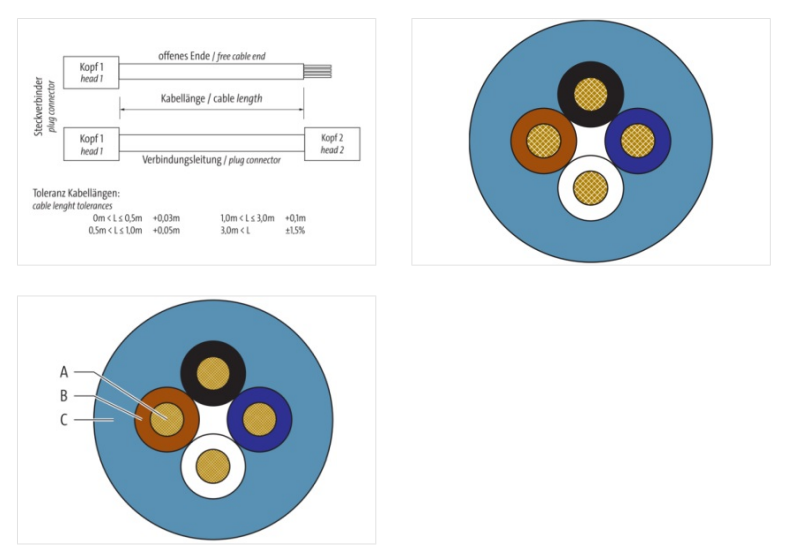

| Cable length | 5,00 m |
Side 1

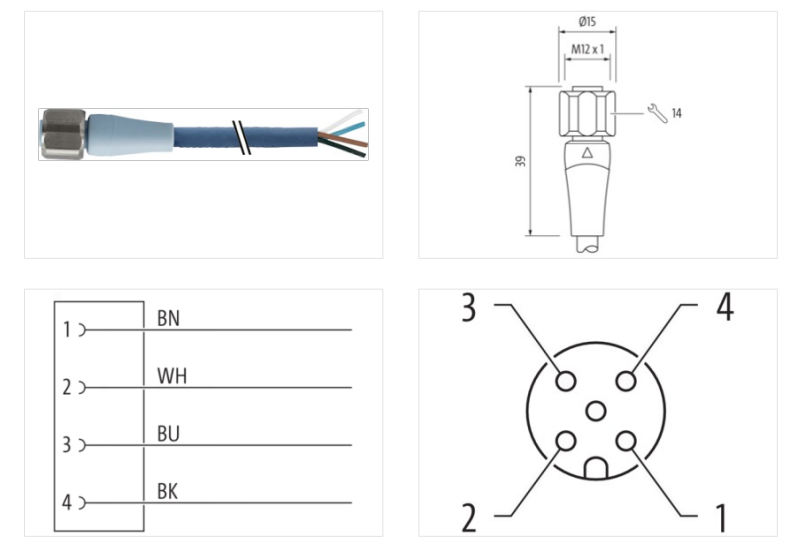

| Family construction form | M12 |
| No. of poles | 4 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW14 |
| Cable outlet | straight |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP69K, IP68, IP65 |
Side 2
| Family construction form | free cable end |
| Stripping length (jacket) | 20 mm |
Electrical data | Supply
| Operating voltage AC max. | 250 V |
| Operating voltage DC max. | 250 V |
| Current operating per contact max. | 4 A |
| Operating voltage AC (UL-listed) | 30 V |
| Operating voltage DC (UL-listed) | 30 V |
Diagnostics
| Status indication LED | No |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 2,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data
| Contour for corrugated hose | without |
Mechanical data | Material data
| Material housing | PP |
| Material contact carrier | PP |
| Color contact carrier | ice blue |
| Locking material | Stainless steel 1.4404 (V4A) |
| Material gasket | EPDM |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 105 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | EN IEC 61076-2-101 (M12), FDA conform |
