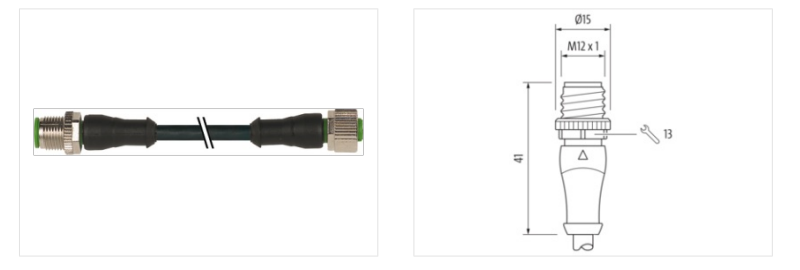

Cáp 5m 2 đầu nối M12 male 0° / M12 female 0° A-code 4 chân 7000-40021-6340500
– M12 đực (0°) – M12 cái(0°), 4 chân, A-code
– Có cáp dài 5 mét
– PUR 4×0.34 bk UL/CSA+drag ch. 5m
– Inserted, screwed
– IP65, IP66K, IP67
Cáp 5m 2 đầu nối M12 male 0° / M12 female 0° A-code 4 chân 7000-40021-6340500 là cáp kết nối loại M12, gồm đầu đực (0°) và cái (0°), 4 chân, A-code, sử dụng cho cảm biến, bộ truyền động nói chung trong tự động hóa
(PUR 4×0.34 bk UL/CSA+drag ch. 5m)
– Có cáp dài 5 mét
– Đầu nối M12 đực (0°) / M12 cái (0°), A-code, 4 chân
– Điện áp hoạt động tối đa: 250VAC/DC
Vỏ nhựa có khả năng chống dầu và chống hóa chất tốt

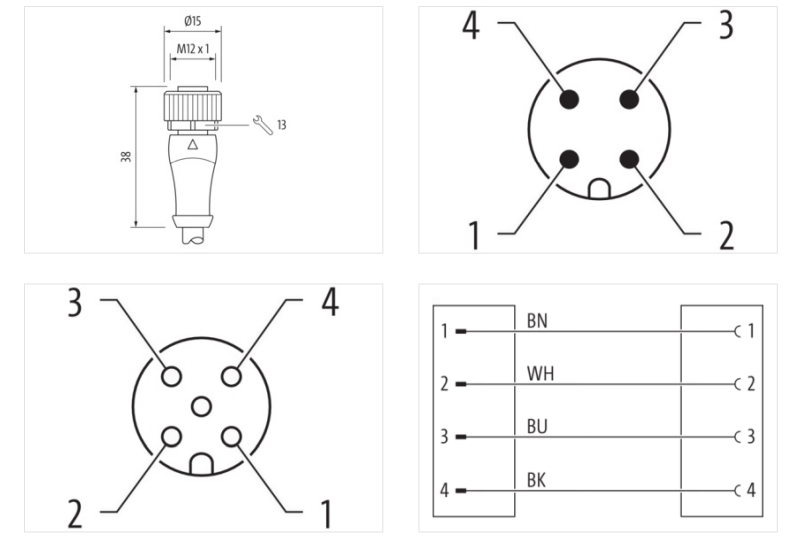

Thông số kỹ thuật – Cáp 5m 2 đầu nối M12 male 0° / M12 female 0° A-code 4 chân 7000-40021-6340500
Header
| Material short text | MSBL0-A-T634_5.0 |

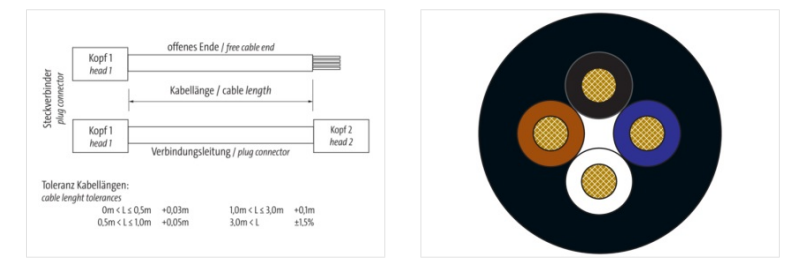

| Cable length | 5,00 m |
Side 1
| Family construction form | M12 |
| No. of poles | 4 |
| Coding | A |
| Gender | male |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
Side 2
| Family construction form | M12 |
| No. of poles | 4 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
Electrical data | Supply
| Operating voltage AC max. | 250 V |
| Operating voltage DC max. | 250 V |
| Current operating per contact max. | 4 A |
Diagnostics
| Status indication LED | No |
Installation | Connection
| Mounting set | M12 x 1 |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 2,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Color contact carrier | green |
| Material screw connection | Zinc die-casting |
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | EN IEC 61076-2-101 (M12) |
