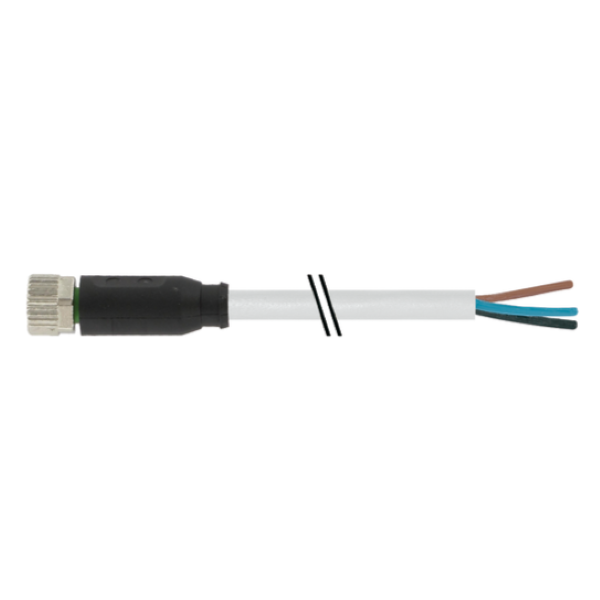

Cáp 3m có đầu nối M8 female 0° A-code 3 chân 7000-08041-2300300
– M8 , đầu nối cái, thẳng (0°), 3 chân, A-code, chiều dài cáp 3 mét
– Inserted, screwed
– IP67, IP66K, IP65
Cáp 3m có đầu nối M8 female 0° A-code 3 chân 7000-08041-2300300 là dây cáp có đầu nối loại M8, 3 chân, A-code, female (đầu nối cái), thẳng
– Có sẵn cáp dài 3 mét, chịu dầu và chống hóa chất tốt.
(PUR 3×0.25 gy UL/CSA+drag ch. 3m)
Sản phẩm tương tự – Đầu nối M8
Thông số kỹ thuật – Cáp 3m có đầu nối M8 female 0° A-code 3 chân 7000-08041-2300300
Header
| Material short text | MSFL0-R230_3.0 |
| Cable length | 3,00 m |
Side 1
| Family construction form | M8 |
| No. of poles | 3 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Thread | M8 x 1 |
| Tightening torque | 0.4 Nm |
| Width across flats | SW9 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 6.5 mm |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
Side 2
| Family construction form | free cable end |
| Stripping length (jacket) | 20 mm |
Electrical data | Supply
| Operating voltage AC max. | 50 V |
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
Diagnostics
| Status indication LED | no |
Installation | Connection
| Mounting set | M8 x 1 |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1.5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Material screw connection | Zinc die-casting |
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
| Material gasket | FKM |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | DIN EN 61076-2-104 (M8) |
