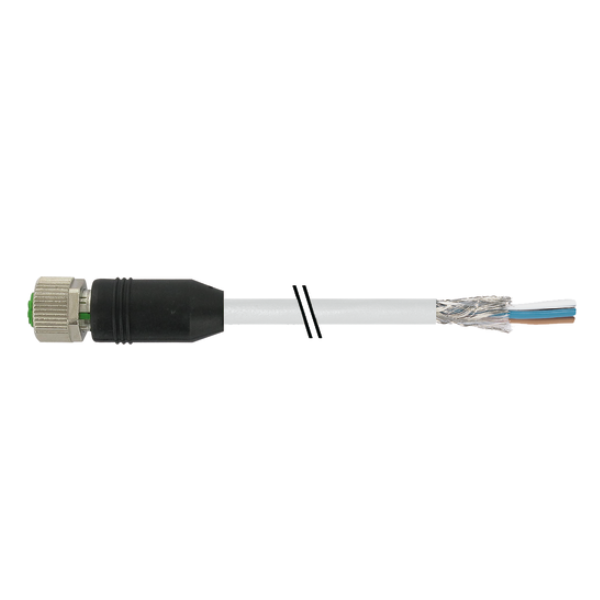

Cáp 3m bọc giáp có đầu nối M12 female 0° A-code 5 chân 7000-13221-2420300: là dây cáp công nghiệp có đầu nối M12 (cái, 0°), 5 chân, A-code
(PUR 5×0.34 shielded gy UL/CSA+drag ch. 3m)
– Có sẵn cáp dài 3 m

– Vỏ bọc chịu dầu và chống mài mòn
Cáp 3m bọc giáp có đầu nối M12 female 0° A-code 5 chân 7000-13221-2420300
– PUR 5×0.34 shielded gy UL/CSA+drag ch. 3m
– M12 (cái, 0°), 5 chân, A-code, chiều dài cáp 3 m
– Inserted, screwed in, vibration protection
– IP67, IP66K, IP65
Cáp 3m bọc giáp có đầu nối M12 female 0° A-code 5 chân 7000-13221-2420300: là dây cáp công nghiệp có đầu nối M12 (cái, 0°), 5 chân, A-code
(PUR 5×0.34 shielded gy UL/CSA+drag ch. 3m)
– Có sẵn cáp dài 3 m

– Vỏ bọc chịu dầu và chống mài mòn

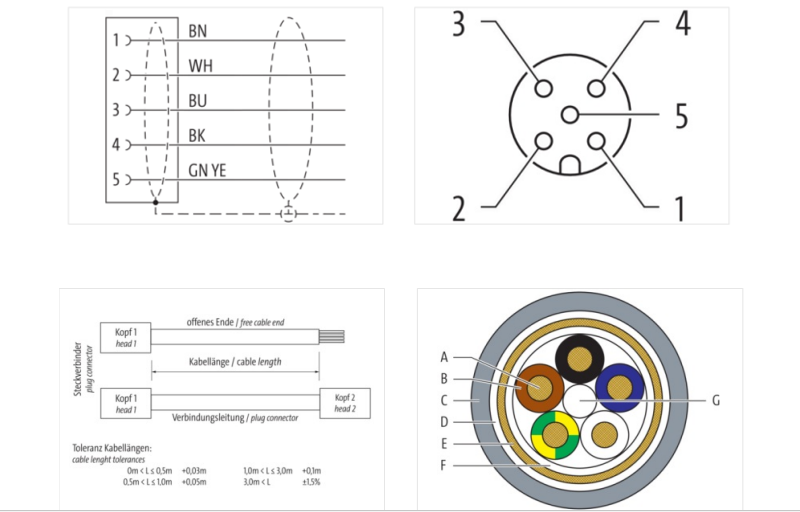

Thông số kỹ thuật – Cáp 3m bọc giáp có đầu nối M12 female 0° A-code 5 chân 7000-13221-2420300
Header
| Length | 3.00 m |
Side 1
| Family construction form | M12 |
| Number of poles | 5 |
| Codification | THE |
| Gender | female |
| Assembly method | inserted, screwed in |
| Threaded hole | M12 x 1 |
| tightening torque | 0.6 Nm |
| Key size | SW13 |
| Cable output | straight |
| Material | PUR |
| Contact material | Copper alloy |
| Contact coating | golden |
| Type of protection (EN IEC 60529) | IP67, IP66K, IP65 |
Side 2
| Family construction form | free cable end |
| Pickling length (coat) | 20 mm |
Electrical data | Power supply
| Maximum AC service voltage. | 60 V |
| Maximum DC operating voltage. | 60 V |
| Maximum operating current per contact. | 4 A |
Installation | Connection
| Gender | female |
| Assembly kit | M12 x 1 |
Equipment protection | Electrical
| Additional condition type of protection | inserted, screwed in |
| Pollution level | 3 |
| Surge voltage | 1.5 kV |
| Chemical category of insulation (IEC 60664-1) | I |
Mechanical data
| Corrugated hose contour | without |
Mechanical data | Material data
| Material screw connection | Molten zinc under pressure |
| threaded union coating | nickel plated |
Mechanical data | Assembly data
| Assembly method | Inserted, screwed in, vibration protection. |
Environmental conditions | Climate
| Minimum serving temperature. | -30 °C |
| Maximum operating temperature. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, eg by the usage of cable ties. |
Conformity
| Product standard | EN IEC 61076-2-101 (M12) |
