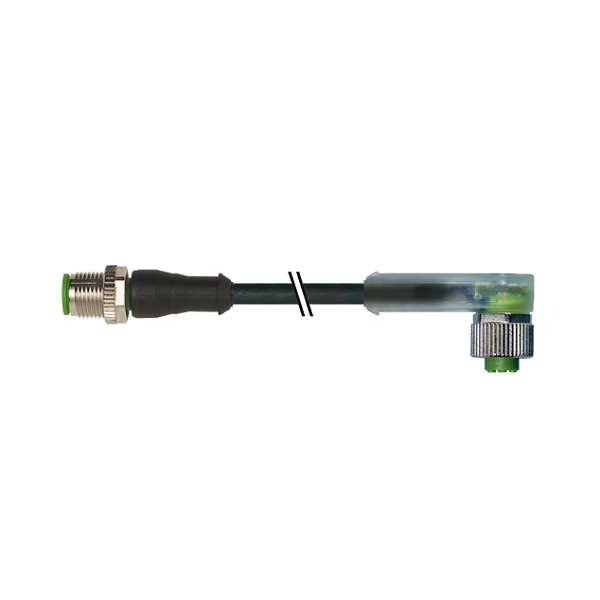

Cáp 3m 2 đầu nối M12 male 0° / M12 female 90° A-code 4 chân có LED 7000-40341-6340300
– PUR 4×0.34 bk UL/CSA+drag ch. 3m
– Male 0° – female 90°
– M12 – M12, 4-chân, A-cod, có sãn cáp dài 3m
– IP65, IP66K, IP67
Cáp 3m 2 đầu nối M12 male 0° / M12 female 90° A-code 4 chân có LED 7000-40341-6340300: là đầu chuyển đổi giữa M12 4 chân, A-cod, male (đực), 0° với M12 4 chân, A-cod, female (cái), 90°, có sẵn cáp dài 3 m
– PUR 4×0.34 bk UL/CSA+drag ch. 3m
– 3× LED (PNP), (NPN) theo yêu cầu
– Vỏ nhựa có khả năng chống chịu hóa chất và dầu tốt

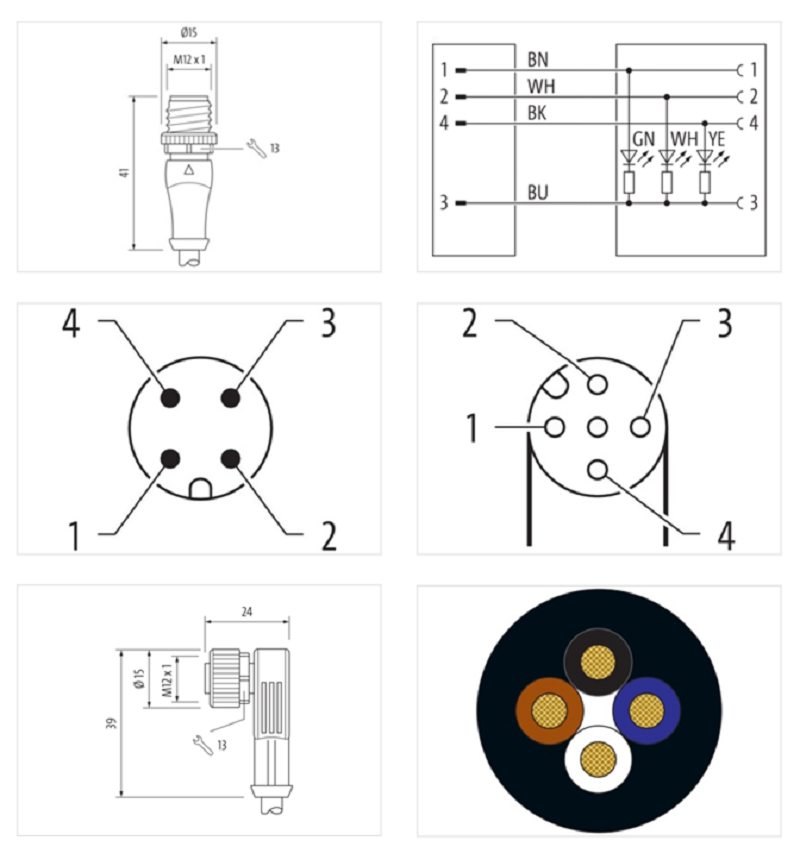

Thông số kỹ thuật – Cáp 3m 2 đầu nối M12 male 0° / M12 female 90° A-code 4 chân có LED 7000-40341-6340300
| Material short text | MSDL2-A-T634_3.0 |
|---|---|
| Cable length | 3,00 m |
| Family construction form | M12 |
|---|---|
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material | PUR |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Family construction form | M12 |
|---|---|
| Mounting method | inserted, screwed |
| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material | PUR |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Operating voltage DC | 24 V |
|---|---|
| Operating voltage DC min. | 18 V |
| Operating voltage DC max. | 30 V |
| Current operating per contact max. | 4 A |
| Operating voltage DC max. (UL-listed) | 30 V |
| Status indication LED | green, yellow, white |
|---|
| Mounting set | M12 x 1 |
|---|
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
| Rated surge voltage | 0,8 kV |
| Material group (IEC 60664-1) | I |
| Material screw connection | Zinc die-casting |
|---|---|
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Product standard | EN IEC 61076-2-101 (M12) |
|---|
