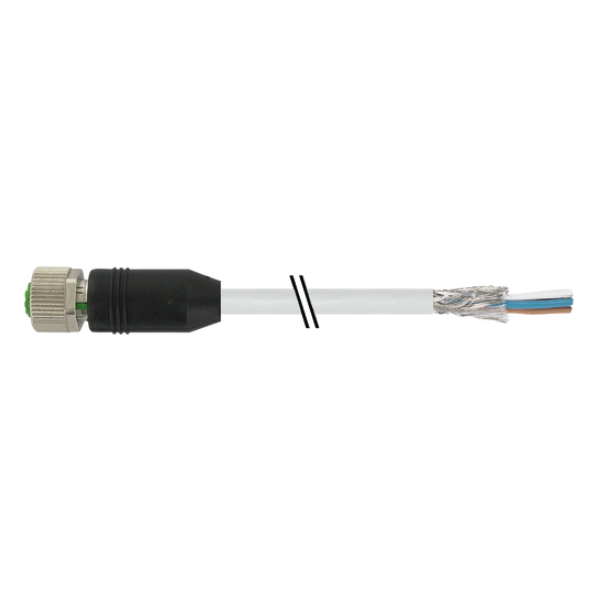

Cáp 30m bọc giáp có đầu nối M12 female 0° A-code 4 chân 7000-13201-3353000
– PUR 4×0.34 shielded gy UL/CSA 30m
– M12 (cái, 0°) 4 chân, A-code, chiều dài cáp 30 mét
– Inserted, screwed, Shaking protection
– IP67, IP66K, IP65
Cáp 30m bọc giáp có đầu nối M12 female 0° A-code 4 chân 7000-13201-3353000: là dây cáp bọc giáp có đầu nối M12 (cái, 0°) 4 chân, A-code
(PUR 4×0.34 shielded gy UL/CSA 30m)
– Dùng cho hệ thống điều khiển công nghiệp
– Có sẵn cáp dài 30 mét
– Vỏ bọc chịu dầu và chống mài mòn
Thông số kỹ thuật – Cáp 30m bọc giáp có đầu nối M12 female 0° A-code 4 chân 7000-13201-3353000
| Material short text | MSBL0-T335_30.0-ZE |
|---|---|
| Cable length | 30,00 m |

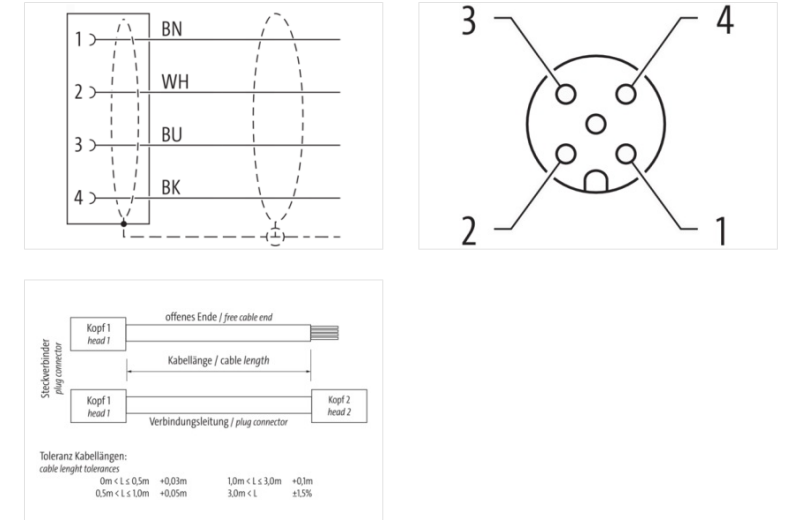

| Family construction form | M12 |
|---|---|
| No. of poles | 4 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |

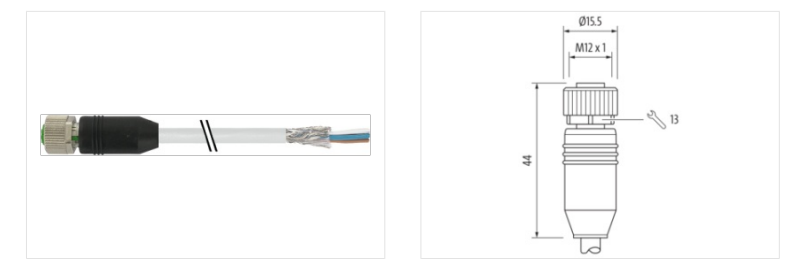

| Threaded hole | M12 x 1 |
| Tightening torque | 0,6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Family construction form | free cable end |
|---|---|
| Stripping length (jacket) | 20 mm |
| Operating voltage AC max. | 60 V |
|---|---|
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
| Mounting set | M12 x 1 |
|---|
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
| Material screw connection | Zinc die-casting |
|---|---|
| Coating of fitting | nickel plated |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Product standard | EN IEC 61076-2-101 (M12) |
|---|
