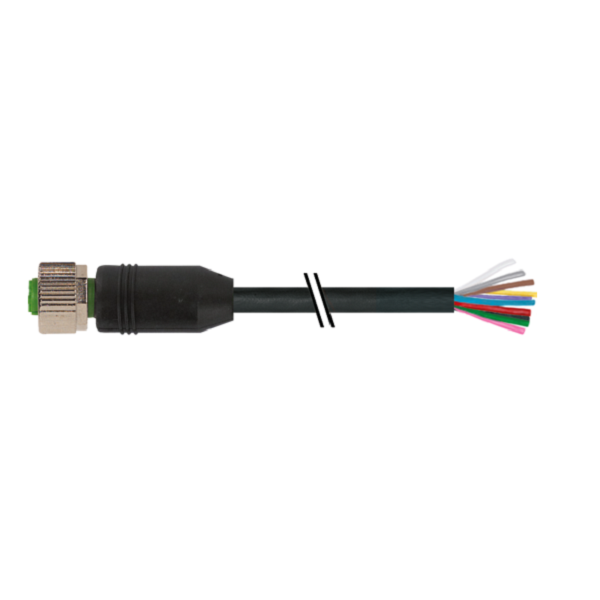

Cáp 2m có đầu nối M12 female 0° A-code 12 chân 7000-19041-7050200
– Là đầu nối 0°, có sẵn cáp dài 2m, M12
– Female, 12 chân, A-cod
– Screwed terminal
– IP65, IP66K, IP67
Cáp 2m có đầu nối M12 female 0° A-code 12 chân 7000-19041-7050200: là đầu nối 0°, có sẵn cáp dài 2m, M12, 12 chân, female, A-code
– PUR 12×0.14 bk UL/CSA+drag ch. 2m
– M12, 12 cổng, đầu nối Female 0°
– Vỏ nhựa có khả năng chống chịu hóa chất và dầu tốt

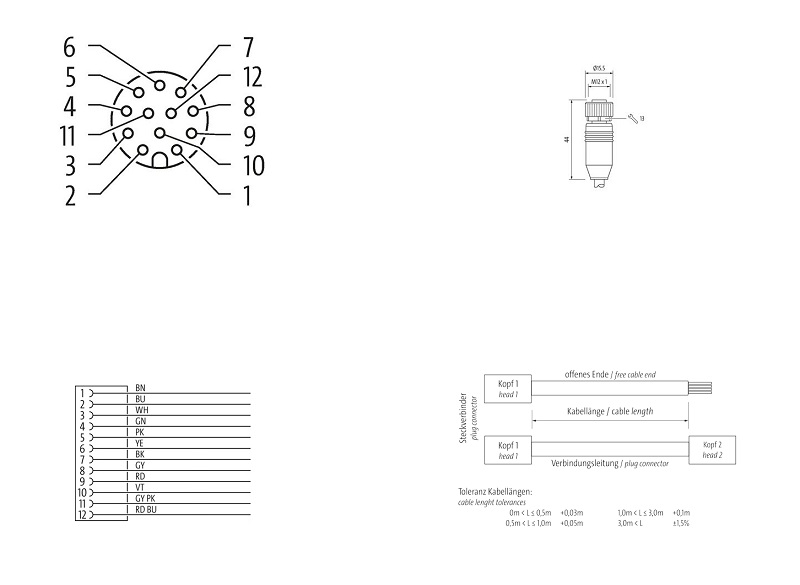

Thông số kỹ thuật – Cáp 2m có đầu nối M12 female 0° A-code 12 chân 7000-19041-7050200
| Cable length | 2 m |
|---|
| Tightening torque | 0,6 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Cable outlet | straight |
| Coding | A |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 12 |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
| Stripping length (jacket) | 80 mm |
|---|---|
| Family construction form | free cable end |
| Operating voltage AC max. | 30 V |
|---|---|
| Operating voltage DC max. | 30 V |
| Operating voltage AC (UL-listed) | 30 V |
| Operating voltage DC (UL-listed) | 30 V |
| Current operating per contact max. | 1,5 A |
| Status indication LED | no |
|---|
| Stripping length (jacket) | 80 mm |
|---|---|
| Mounting set | M12 x 1 |
| Gender | female |
| Degree of protection (EN IEC 60529) | IP65, IP67, IP66K |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 0,8 kV |
| Material group (IEC 60664-1) | I |
| Contour for corrugated hose | without |
|---|
| Coating locking | Nickeled |
|---|---|
| Coating of fitting | nickel plated |
| Material gasket | FKM |
| Locking material | Zinc die-casting |
| Material screw connection | Zinc die-casting |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
|---|---|
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Product standard | DIN EN 61076-2-101 (M12) |
|---|
