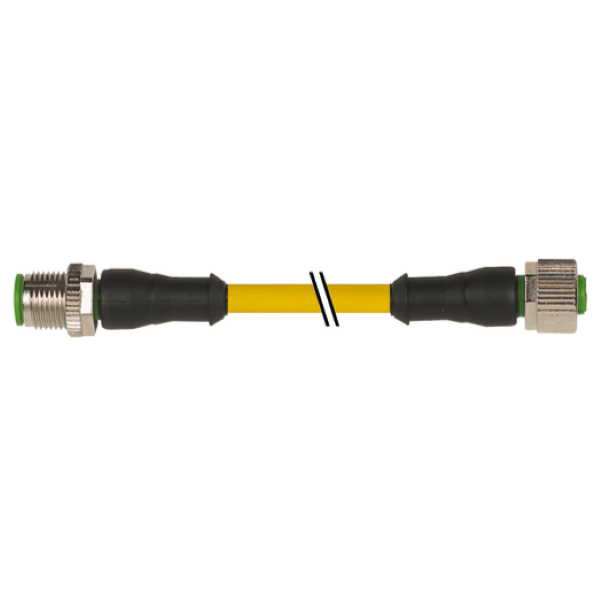

Cáp 20m có 2 đầu nối M12 male 0° / M12 female 0° A-code 4 chân 7000-40021-0342000
– M12 đực (0°) – M12 cái(0°), 4 chân, A-code, chiều dài cáp 20 mét
– PUR 4×0.34 ye UL/CSA+drag ch. 20m
– Inserted, screwed
– IP67, IP66K, IP65
Cáp 20m có 2 đầu nối M12 male 0° / M12 female 0° A-code 4 chân 7000-40021-0342000 là dây cáp kết nối loại M12, gồm đầu đực (thẳng 0°) và cái (thẳng 0°), 4 chân, A-coded
(PUR 4×0.34 ye UL/CSA+drag ch. 20m)
Có sẵn cáp dài 20 mét, chịu dầu và chống hóa chất tốt.
Phù hợp cho robot tự động hóa, chịu uốn, kéo tốt.
Sản phẩm tương tự – Đầu nối M12 – M12
Thông số kỹ thuật – Cáp 20m có 2 đầu nối M12 male 0° / M12 female 0° A-code 4 chân 7000-40021-0342000
Header
| Cable length | 20.0 m |
Side 1

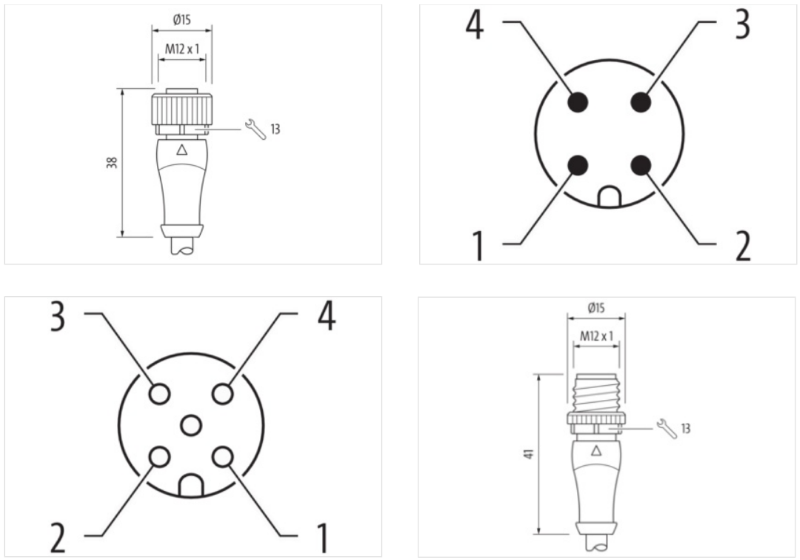

| Family construction form | M12 |
| No. of poles | 4 |
| Coding | A |
| Gender | male |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material | PUR |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
Side 2
| Family construction form | M12 |
| No. of poles | 4 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Material | PUR |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
Electrical data | Supply
| Operating voltage AC max. | 250 V |
| Operating voltage DC max. | 250 V |
| Current operating per contact max. | 4 A |
Diagnostics
| Status indication LED | no |
Installation | Connection
| Mounting set | M12 x 1 |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 2.5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Color contact carrier | green |
| Material screw connection | Zinc die-casting |
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | DIN EN 61076-2-101 (M12) |
