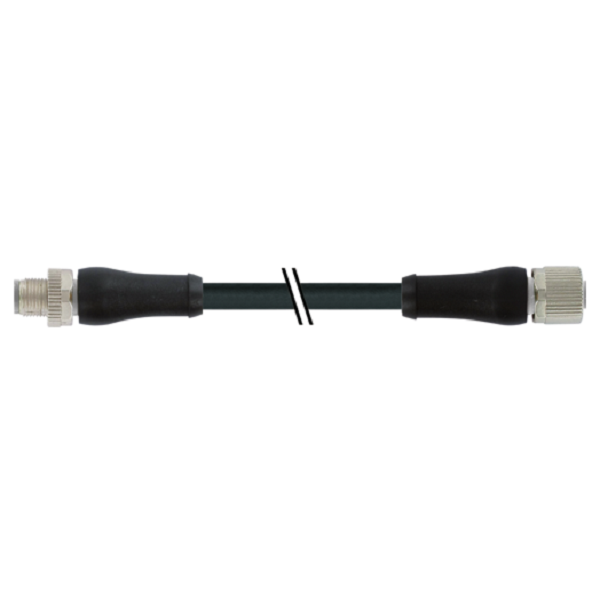

Cáp 2.5m có đầu nối nguồn M12 male-M12 female L-code của Murrelektronik 7000-P4241-P040250

Cáp 2.5m có đầu nối nguồn M12 male-M12 female L-code của Murrelektronik 7000-P4241-P040250 là đầu chuyển đổi giữa M12 5 chân, L-cod, male (đực), 0° với M12 4 chân, L-cod, female (cái), 0°, có sẵn cáp dài 2.5m

(PUR 5×1.5 bk UL/CSA+drag ch. 2.5m)
– M12 Male 0° – M12 female 0°
– Có sẵn cáp dài 2.5 m, 5-chân, L-cod

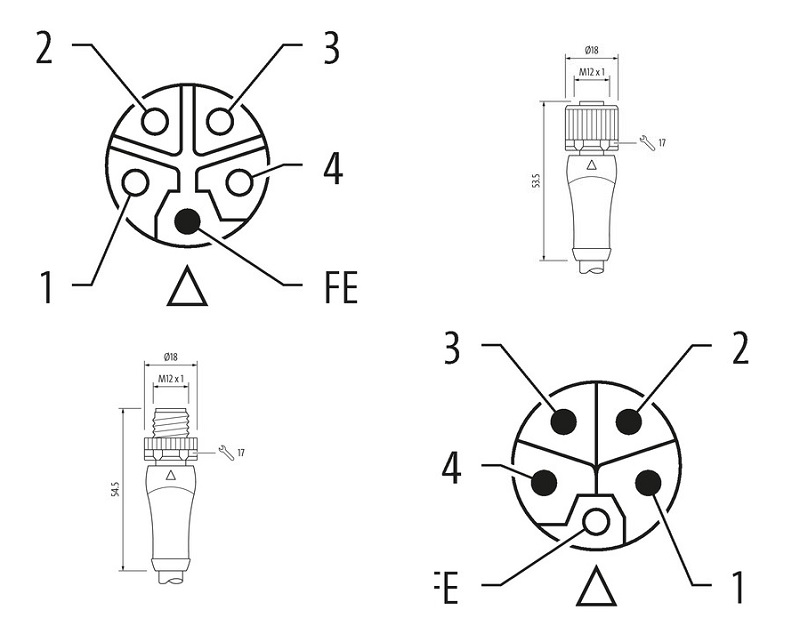

Cáp 2.5m có đầu nối nguồn M12 male-M12 female L-code của Murrelektronik 7000-P4241-P040250 - detail1

– Vỏ nhựa có khả năng chống chịu hóa chất và dầu tốt

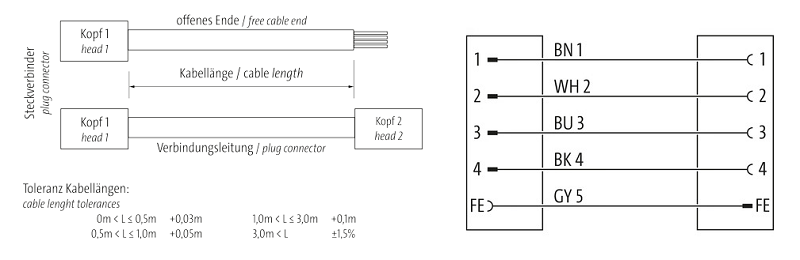

Cáp 2.5m có đầu nối nguồn M12 male-M12 female L-code của Murrelektronik 7000-P4241-P040250 - DETAIL2

Thông số kỹ thuật – Cáp 2.5m có đầu nối nguồn M12 male-M12 female L-code của Murrelektronik 7000-P4241-P040250

Cable length	2,5 m

Side 1

Tightening torque	0,6 Nm
Mounting method	inserted, screwed
Coating contact	gold plated
Family construction form	M12P
Thread	M12 x 1
suitable for corrugated tube (internal Ø)	12 mm
Gender	male
Cable outlet	straight
Coding	L
Material contact	Copper alloy
Material	PUR
No. of poles	5
Width across flats	SW17
Degree of protection (EN IEC 60529)	IP65, IP67

Side 2

Tightening torque	0,6 Nm
Mounting method	inserted, screwed
Coating contact	gold plated
Family construction form	M12P
Thread	M12 x 1
Gender	female
suitable for corrugated tube (internal Ø)	12 mm
Cable outlet	straight
Coding	L
Material contact	Copper alloy
Material	PUR
No. of poles	5
Width across flats	SW17
Degree of protection (EN IEC 60529)	IP65, IP67

Electrical data | Supply

Operating voltage DC max.	63 V
Current operating per contact max.	12 A

Installation | Connection

Width across flats	SW17
Mating cycles min.	100

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP65, IP67
Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	1,5 kV
Material group (IEC 60664-1)	I

Mechanical data | Material data

Mechanical data | Mounting data

Mounting method	inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-25 °C
Operating temperature max.	85 °C
Additional condition temperature range	depending on cable quality

Important installation notes

Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Conformity

Product standard	IEC 61076-2-111
