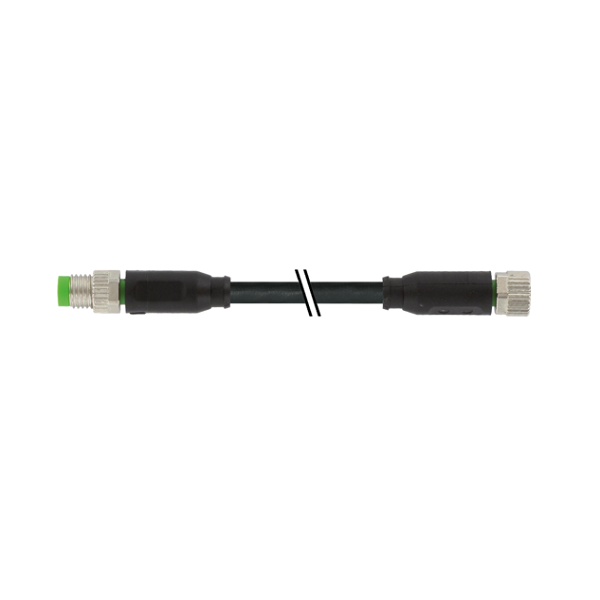

Cáp 1m có 2 đầu nối M8 male 0° / M8 female 0° A-code

Cáp 1m có 2 đầu nối M8 male 0° / M8 female 0° A-code 7999-88001-6330100: là dây cáp kết nối tín hiệu có sẵn đầu nối M8, gồm đầu đực và đầu cái (cả hai đầu nối dạng thẳng 0°), 3 chân, A-code

– PUR 3×0.34 bk UL/CSA+drag ch. 1m
– M8 male 0°- M8 female 0°, A-code
– Có sẵn cáp dài 1m, 3 chân

Cáp 1m có 2 đầu nối M8 male 0° / M8 female 0° A-code 7999-88001-6330100 - DETAIL

– Vỏ nhựa có khả năng chống hóa chất và dầu tốt

Thông số kỹ thuật – Cáp 1m có 2 đầu nối M8 male 0° / M8 female 0° A-code 7999-88001-6330100

Cable length	1 m

Side 1

Tightening torque	0,4 Nm
Mounting method	inserted, screwed
Coating contact	gold plated
Family construction form	M8
Thread	M8 x 1
suitable for corrugated tube (internal Ø)	6,5 mm
Material contact	Copper alloy
No. of poles	3
Width across flats	SW9

Side 2

Electrical data | Supply

Operating voltage AC max.	50 V
Operating voltage DC max.	60 V
Operating voltage AC (UL-listed)	30 V
Operating voltage DC (UL-listed)	30 V
Current operating per contact max.	4 A

Diagnostics

Status indication LED	no

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP65, IP67, IP68, IP66K
Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	1,5 kV
Material group (IEC 60664-1)	I

Mechanical data | Material data

Mechanical data | Mounting data

Mounting method	inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-30 °C
Operating temperature max.	85 °C
Additional condition temperature range	depending on cable quality

Important installation notes

Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Conformity

Product standard	DIN EN 61076-2-114 (M8)
