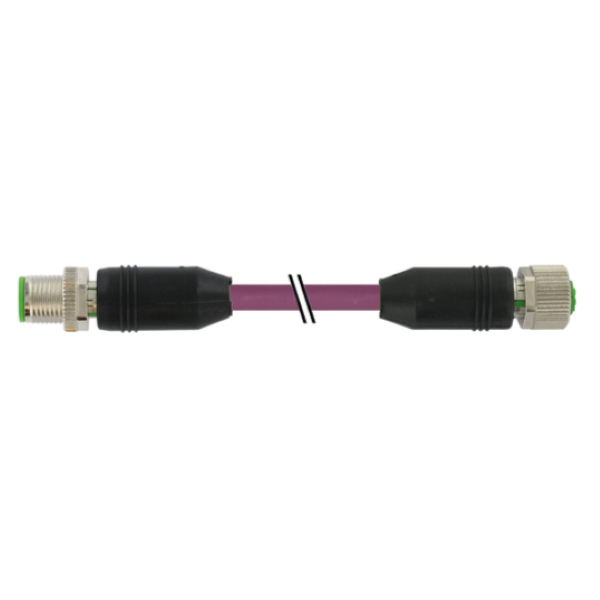

Cáp 1m bọc chống nhiễu có đầu nối M12 male 0° / M12 female 0° B-code 7000-44051-7990100
– M12 đực (0°) – M12 cái(0°), 5 chân, B-code, chiều dài cáp 1 mét
– PUR 3x2x0.25 shielded vt 1m
– Inserted, screwed
– IP67, IP66K, IP65
Cáp 1m bọc chống nhiễu có đầu nối M12 male 0° / M12 female 0° B-code 7000-44051-7990100 là dây cáp kết nối loại M12, gồm đầu đực (thẳng 0°) và cái (thẳng 0°), 5 chân, B-code
(PUR 3x2x0.25 shielded vt 1m)
Có sẵn cáp dài 1 mét, có bọc chống nhiễu, chịu dầu và chống hóa chất tốt.
Phù hợp cho robot tự động hóa, chịu uốn, kéo tốt.
Sản phẩm tương tự – Đầu nối M12 – M12
Thông số kỹ thuật – Cáp 1m bọc chống nhiễu có đầu nối M12 male 0° / M12 female 0° B-code 7000-44051-7990100
Header
| Material short text | MSBBL0-BA-U799_1.0-ZS |
| Cable length | 1.0 m |
Side 1
| Family construction form | M12 |
| No. of poles | 5 |
| Coding | B |
| Gender | male |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| Material | PUR |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
Side 2
| Family construction form | M12 |
| No. of poles | 5 |
| Coding | B |
| Gender | female |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| Material | PUR |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
Electrical data | Supply
| Operating voltage AC max. | 60 V |
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
Diagnostics
| Status indication LED | no |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1.5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data
| Contour for corrugated hose | without |
Mechanical data | Material data
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | DIN EN 61076-2-101 (M12) |
