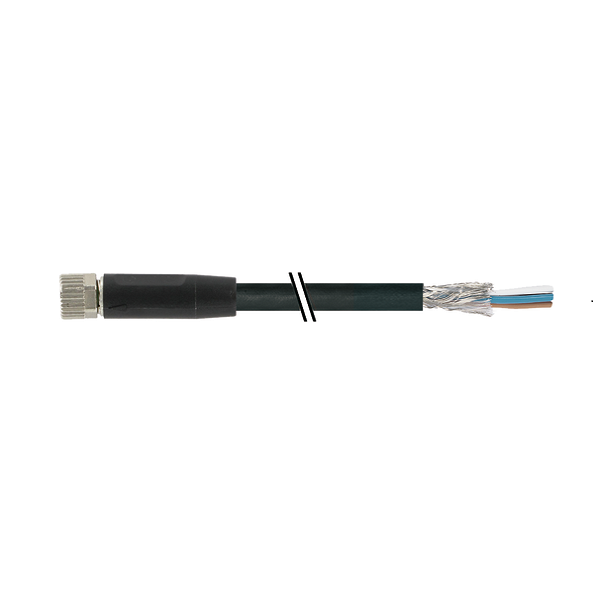

Cáp 15m bọc chống nhiễu có đầu nối M8 female 0° A-code 4 chân 7000-08761-6411500
– PUR 4×0.34 shielded bk UL/CSA+drag ch. 15m
– Có sẵn cáp dài 15m, có bọc chống nhiễu
– M8 cái (0°), 4 chân, A-cod
– Inserted, screwed
– IP65, IP66K, IP67
Cáp 15m bọc chống nhiễu có đầu nối M8 female 0° A-code 4 chân 7000-08761-6411500: là dây cáp kết nối tín hiệu có đầu nối loại M8, female (đầu nối cái), dạng thẳng, 4 chân, A-code
– PUR 4×0.34 shielded bk UL/CSA+drag ch. 15m
– Có sẵn cáp dài 15m, có bọc chống nhiễu
– M8 cái (0°), 4 chân, A-cod
– Chịu dầu và chống mài mòn
Thông số kỹ thuật – Cáp 15m bọc chống nhiễu có đầu nối M8 female 0° A-code 4 chân 7000-08761-6411500
| Family construction form | M8 |
|---|---|
| No. of poles | 4 |
| Coding | A |
| Gender | female |
| Mounting method | inserted, screwed |
| Thread | M8 x 1 |
| Tightening torque | 0.4 Nm |
| Width across flats | SW9 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 8.5 mm |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Family construction form | free cable end |
|---|---|
| Stripping length (jacket) | 20 mm |
| Operating voltage AC max. | 50 V |
|---|---|
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
| Status indication LED | no |
|---|
| Mounting set | M8 x 1 |
|---|
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 0.8 kV |
| Material group (IEC 60664-1) | I |
| Material screw connection | Zinc die-casting |
|---|---|
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Product standard | DIN EN 61076-2-114 (M8) |
|---|
