Cáp 10m F&B có đầu nối M12 female 0° A-code

Cáp 10m F&B có đầu nối M12 female 0° A-code 7024-12221-3211000: là cáp tín hiệu cho ngành thực phẩm & đồ uống, phù hợp với các yêu cầu cao về vệ sinh, chống ăn mòn, và dễ dàng làm sạch

– TPE-S 4×0.34 bu UL robot+drag ch. 10m
– M12 F&B Pro Female(cái) 0°, 4 chân, A-code

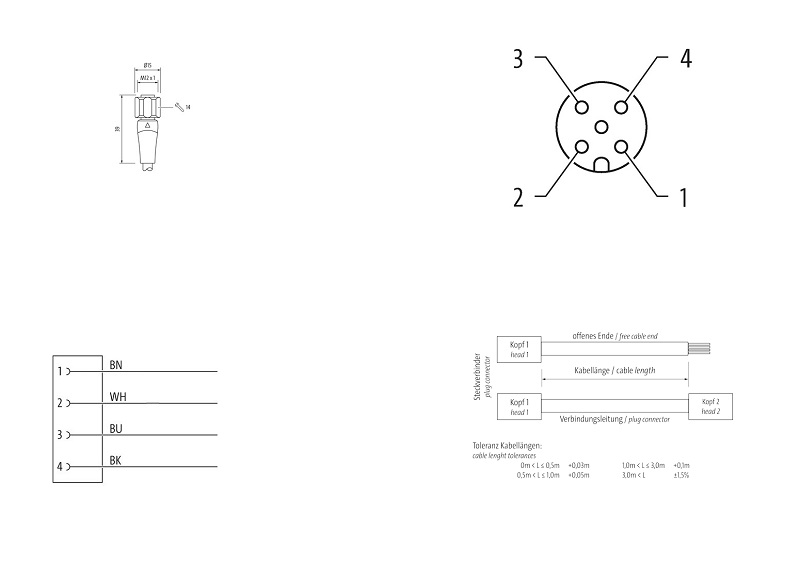

Cáp 10m F&B có đầu nối M12 female 0° A-code 7024-12221-3211000 - DETAIL

– Vỏ bọc bảo vệ tránh bụi bẩn và dầu tốt

Thông số kỹ thuật – Cáp 10m F&B có đầu nối M12 female 0° A-code 7024-12221-3211000

Cable length	10 m

Side 1

Side 2

Stripping length (jacket)	20 mm

Electrical data | Supply

Operating voltage AC max.	250 V
Operating voltage DC max.	250 V
Operating voltage AC (UL-listed)	30 V
Operating voltage DC (UL-listed)	30 V
Current operating per contact max.	4 A

Diagnostics

Status indication LED	no

Installation | Connection

Stripping length (jacket)	20 mm

Device protection | Electrical

Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	2,5 kV
Material group (IEC 60664-1)	I

Mechanical data

Contour for corrugated hose	without

Mechanical data | Material data

Mechanical data | Mounting data

Mounting method	inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-40 °C
Operating temperature max.	105 °C
Additional condition temperature range	depending on cable quality

Important installation notes

Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Conformity

Product standard	DIN EN 61076-2-101 (M12), FDA conform
