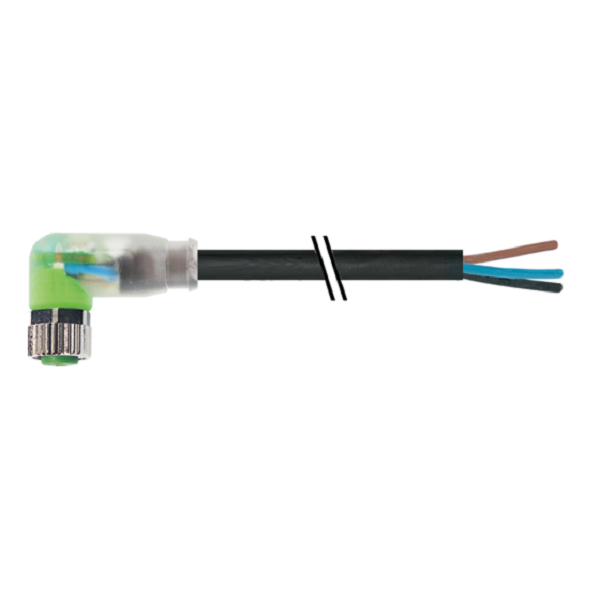

Cáp 10m có đầu nối M8 female 90° A-code 3 chân có LED 7000-08121-6301000

Cáp 10m có đầu nối M8 female 90° A-code 3 chân có LED 7000-08121-6301000 là dây cáp có đầu nối loại M8, 3 chân, A-code, female (đầu nối cái) 90°

– PUR 3×0.25 bk UL/CSA+drag ch. 10m
– Có sẵn cáp dài 10m, chịu dầu và chống hóa chất tốt

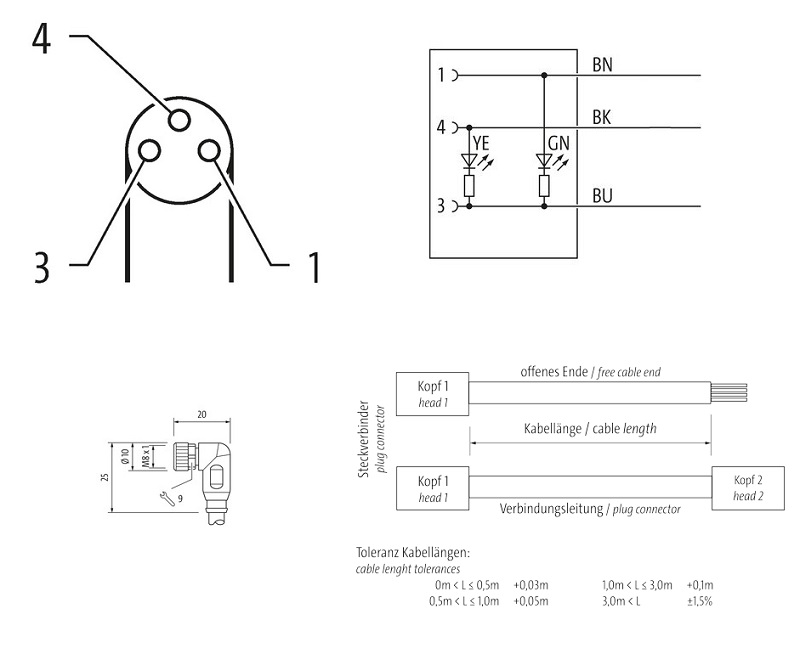

Cáp 10m có đầu nối M8 female 90° A-code 3 chân có LED 7000-08121-6301000 - DETAIL
– Có LED báo trạng thái (vàng, xanh, PNP)

Thông số kỹ thuật – Cáp 10m có đầu nối M8 female 90° A-code 3 chân có LED 7000-08121-6301000

Cable length	10 m

Side 1

Tightening torque	0,4 Nm
Mounting method	inserted, screwed
Coating contact	gold plated
Family construction form	M8
Thread	M8 x 1
suitable for corrugated tube (internal Ø)	6,5 mm
Gender	female
Cable outlet	angled
Coding	A
Material contact	Copper alloy
Material	PUR
No. of poles	3
Width across flats	SW9
Degree of protection (EN IEC 60529)	IP65, IP66K, IP67

Side 2

Stripping length (jacket)	20 mm
Family construction form	free cable end

Electrical data | Supply

Operating voltage DC	24 V
Operating voltage DC min.	18 V
Operating voltage DC max.	30 V
Operating voltage DC max. (UL-listed)	30 V
Current operating per contact max.	4 A

Diagnostics

Status indication LED	green, yellow

Installation | Connection

Stripping length (jacket)	20 mm
Mounting set	M8 x 1

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP65, IP67, IP66K
Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	0,8 kV
Material group (IEC 60664-1)	I

Mechanical data | Material data

Mechanical data | Mounting data

Mounting method	inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-30 °C
Operating temperature max.	85 °C
Additional condition temperature range	depending on cable quality

Important installation notes

Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Conformity

Product standard	DIN EN 61076-2-104 (M8)
