Cáp 10m có đầu nối M8 female 0° A-code 4 chân

Cáp 10m có đầu nối M8 female 0° A-code 4 chân 7000-08061-6311000: là dây cáp có đầu nối loại M8, 4 chân, A-code, female (đầu nối cái) 0°

– PUR 4×0.25 bk UL/CSA+drag ch., có dây cáp dài 10m
– M8 female (cái) 0°, 4 chân, A-code

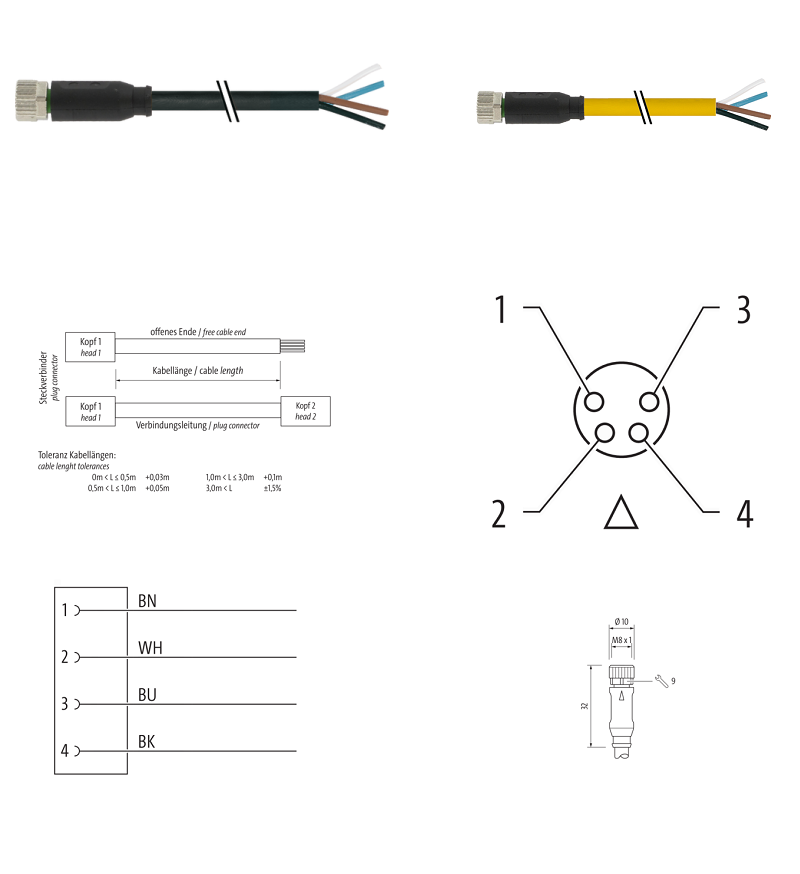

Cáp 10m có đầu nối M8 female 0° A-code 4 chân 7000-08061-6311000 - DETAIL

– Có vỏ bọc với khả năng chịu dầu và chống hóa chất tốt

Thông số kỹ thuật – Cáp 10m có đầu nối M8 female 0° A-code 4 chân 7000-08061-6311000

Side 1

Family construction form	M8
No. of poles	4
Coding	A
Gender	female
Mounting method	inserted, screwed
Thread	M8 x 1
Tightening torque	0.4 Nm
Width across flats	SW9
Cable outlet	straight
suitable for corrugated tube (internal Ø)	6.5 mm
Material	PUR
Material contact	Copper alloy
Coating contact	gold plated
Degree of protection (EN IEC 60529)	IP67, IP66K, IP65

Side 2

Family construction form	free cable end
Stripping length (jacket)	20 mm

Electrical data | Supply

Operating voltage AC max.	50 V
Operating voltage DC max.	60 V
Current operating per contact max.	4 A

Diagnostics

Status indication LED	no

Installation | Connection

Mounting set	M8 x 1

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP67, IP66K, IP65
Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	1.5 kV
Material group (IEC 60664-1)	I

Mechanical data | Material data

Mechanical data | Mounting data

Mounting method	inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-25 °C
Operating temperature max.	85 °C
Additional condition temperature range	depending on cable quality

Important installation notes

Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Conformity

Product standard	DIN EN 61076-2-104 (M8)
