Cáp 10m cho ngành FB có đầu nối M12 female 0° A-code 4 chân

Cáp 10m cho ngành FB có đầu nối M12 female 0° A-code 4 chân 7024-12221-3211000: là cáp tín hiệu cho ngành thực phẩm & đồ uống, phù hợp với các yêu cầu cao về vệ sinh, chống ăn mòn, và dễ dàng làm sạch

– TPE-S 4×0.34 bu UL robot+drag ch. 10m
– M12 F&B Pro Female(cái) 0°, 4 chân, A-code

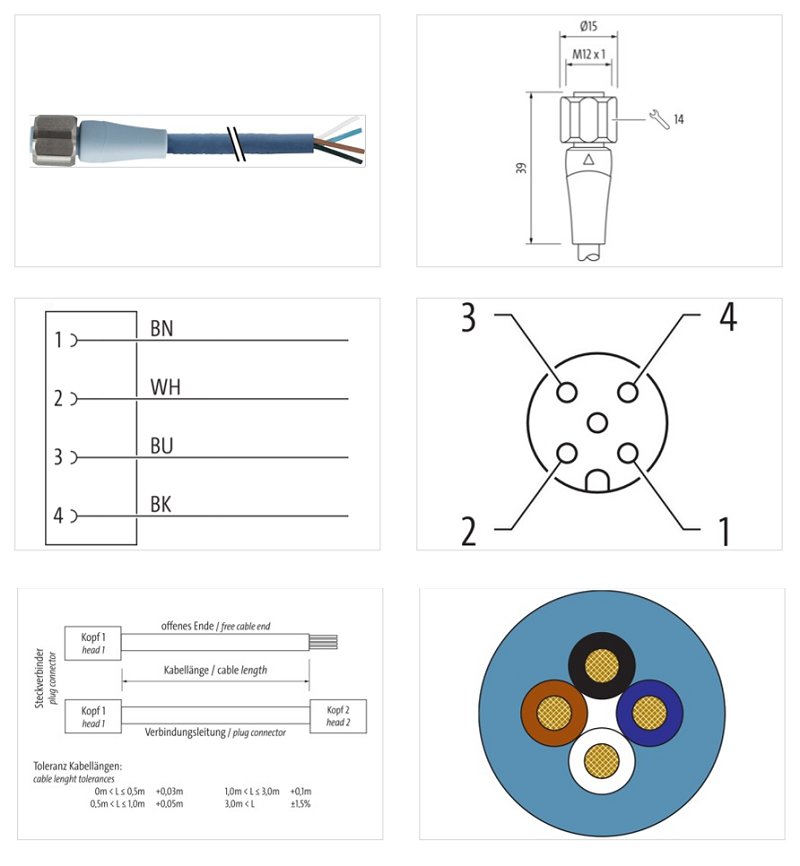

Cáp 10m cho ngành FB có đầu nối M12 female 0° A-code 4 chân 7024-12221-3211000 - DETAIL

– Vỏ bọc bảo vệ tránh bụi bẩn và dầu tốt

Thông số kỹ thuật – Cáp 10m cho ngành FB có đầu nối M12 female 0° A-code 4 chân 7024-12221-3211000

Header

Material short text	MSBL0-T321_10.0-S24
Cable length	10,00 m

Side 1

Side 2

Family construction form	free cable end
Stripping length (jacket)	20 mm

Electrical data | Supply

Operating voltage AC max.	250 V
Operating voltage DC max.	250 V
Current operating per contact max.	4 A
Operating voltage AC (UL-listed)	30 V
Operating voltage DC (UL-listed)	30 V

Diagnostics

Status indication LED	No

Device protection | Electrical

Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	2,5 kV
Material group (IEC 60664-1)	I

Mechanical data

Contour for corrugated hose	without

Mechanical data | Material data

Mechanical data | Mounting data

Mounting method	inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-30 °C
Operating temperature max.	105 °C
Additional condition temperature range	depending on cable quality

Important installation notes

Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Conformity

Product standard	EN IEC 61076-2-101 (M12), FDA conform
