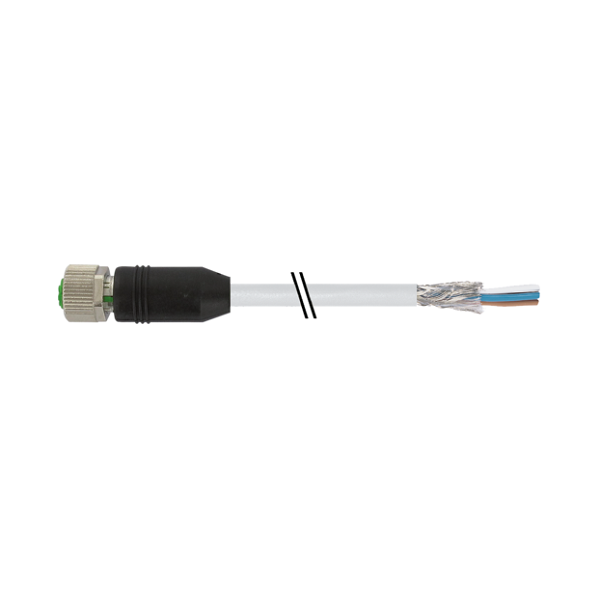

Cáp 10m bọc chống nhiễu có đầu nối M12 female 0° A-code 8 chân 7000-17121-2911000
– PUR 8×0.25 shielded gy UL/CSA+drag ch. 10m
– Có sẵn cáp dài 10m, có bọc chống nhiễu
– M12 cái (0°), 8 chân, A-code
– Inserted, screwed
– IP65, IP66K, IP67
Cáp 10m bọc chống nhiễu có đầu nối M12 female 0° A-code 8 chân 7000-17121-2911000: là dây cáp kết nối tín hiệu có đầu nối loại M12, female (đầu nối cái), dạng thẳng, 8 chân, A-code
– PUR 8×0.25 shielded gy UL/CSA+drag ch. 10m
– Có sẵn cáp dài 10m, có bọc chống nhiễu
– M12 cái (0°), 8 chân, A-code
– Chịu dầu và chống mài mòn

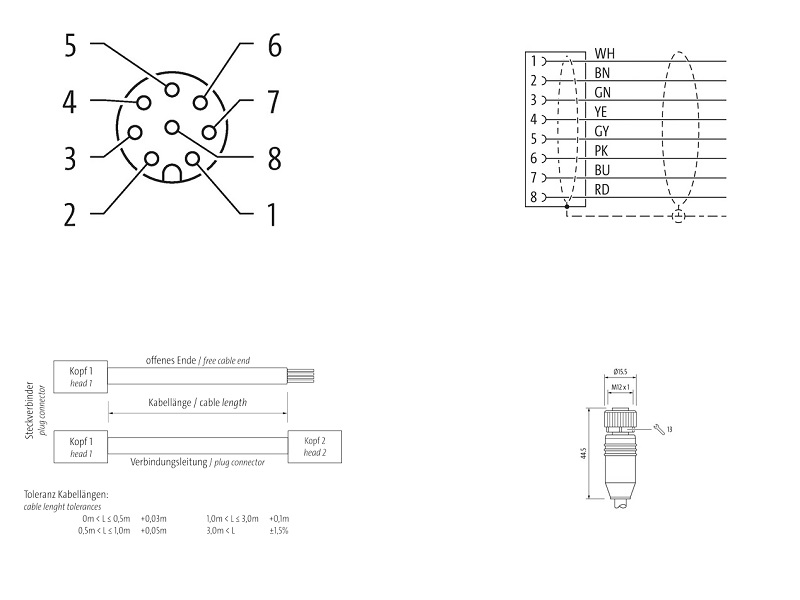

Thông số kỹ thuật – Cáp 10m bọc chống nhiễu có đầu nối M12 female 0° A-code 8 chân 7000-17121-2911000
| Cable length | 10 m |
|---|
| Tightening torque | 0,6 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Cable outlet | straight |
| Coding | A |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 8 |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
| Stripping length (jacket) | 60 mm |
|---|---|
| Family construction form | free cable end |
| Operating voltage AC max. | 30 V |
|---|---|
| Operating voltage DC max. | 30 V |
| Operating voltage AC (UL-listed) | 30 V |
| Operating voltage DC (UL-listed) | 30 V |
| Current operating per contact max. | 2 A |
| Status indication LED | no |
|---|
| Stripping length (jacket) | 60 mm |
|---|---|
| Mounting set | M12 x 1 |
| Gender | female |
| Degree of protection (EN IEC 60529) | IP65, IP67, IP66K |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 0,8 kV |
| Material group (IEC 60664-1) | I |
| Contour for corrugated hose | without |
|---|
| Coating locking | Nickeled |
|---|---|
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Material screw connection | Zinc die-casting |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
|---|---|
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Product standard | DIN EN 61076-2-101 (M12) |
|---|
