Cáp 1.5m có đầu nối M12 male-M12 female 4 chân A-code của Murrelektronik 7000-40021-6340150
– PUR 4×0.34 bk UL/CSA+drag ch. 1.5m
– M12 đực – M12 cái, 4 chân, A-code, chiều dài cáp 1.5 mét
– Inserted, screwed
– IP65, IP66K, IP67
Cáp 1.5m có đầu nối M12 male-M12 female 4 chân A-code của Murrelektronik 7000-40021-6340150 là dây cáp kết nối loại M12, gồm đầu đực và đầu cái (cả hai dạng thẳng 0°), 4 chân, A-coded
Có sẵn cáp dài 1.5 mét, màu đen, chịu dầu và chống mài mòn, phù hợp dùng trong drag chain (xích kéo)
PUR 4×0.34 bk UL/CSA+drag ch. 1.5m
Sản phẩm tương tự – Cáp 1.5m có đầu nối M12 male-M12-female 90° A-code 4 ruột của Murrelektronik 7000-40121-6340150
Thông số kỹ thuật – Cáp 1.5m có đầu nối M12 male-M12 female 4 chân A-code của Murrelektronik 7000-40021-6340150
| Cable length | 1,5 m |

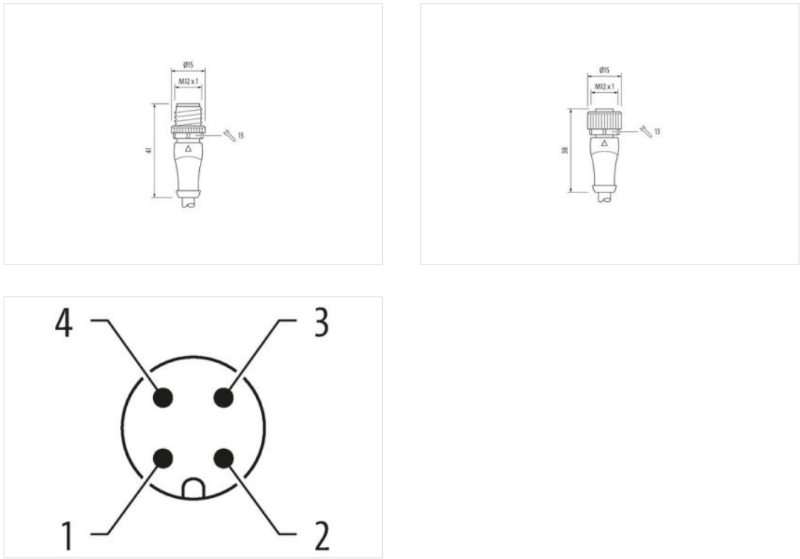

Side 1
| Tightening torque | 0,6 Nm |
| Mounting method | inserted, screwed |
| Family construction form | M12 |
| Thread | M12 x 1 |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Gender | male |
| Cable outlet | straight |
| Coding | A |
| Material | PUR |

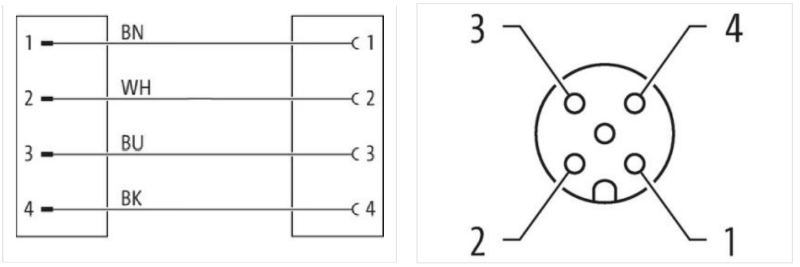

| No. of poles | 4 |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
Side 2
| Tightening torque | 0,6 Nm |
| Mounting method | inserted, screwed |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Gender | female |
| suitable for corrugated tube (internal Ø) | 10 mm |
| Cable outlet | straight |
| Coding | A |
| Material | PUR |
| No. of poles | 4 |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
Electrical data | Supply
| Operating voltage AC max. | 250 V |
| Operating voltage DC max. | 250 V |
| Current operating per contact max. | 4 A |
Diagnostics
| Status indication LED | no |
Installation | Connection
| Mounting set | M12 x 1 |
Device protection | Electrical
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 2,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Coating locking | Nickeled |
| Coating of fitting | nickel plated |
| Color contact carrier | green |
| Locking material | Zinc die-casting |
| Material screw connection | Zinc die-casting |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
Conformity
| Product standard | DIN EN 61076-2-101 (M12) |
