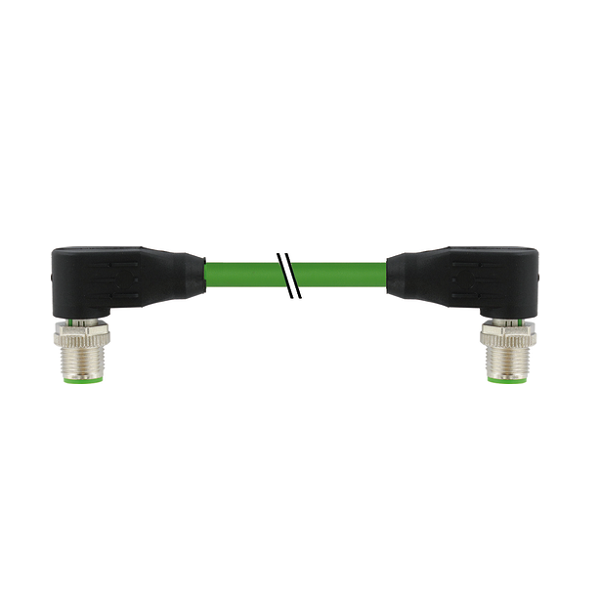

Cáp 1.5m bọc chống nhiễu 2 đầu nối M12 male 90° / M12 male 90° D-code 7000-44561-7960150
– Đầu nối (male) 90° – đầu nối (male) 90°
– M12 – M12, 4 chân, D-code
– Ethernet CAT5
– IP67, IP66K, IP65
Cáp 1.5m bọc chống nhiễu 2 đầu nối M12 male 90° / M12 male 90° D-code 7000-44561-7960150: dùng để truyền tín hiệu Ethernet công nghiệp ổn định, giảm nhiễu điện từ
(PUR 1x4xAWG22 shielded gn UL/CSA+drag ch. 1.5m)
– Đầu nối (male) 90° – đầu nối (male) 90°, Ethernet CAT5
– M12 – M12, 4 chân, D-code
– Tính chất truyền dẫn với kênh truyền dẫn lên đến 100 m
– Vỏ nhựa có khả năng chống bụi bẩn và dầu tốt
Sản phẩm tương tự – Cáp 0.4m bọc chống nhiễu 2 đầu nối M12 male 90° / M12 male 90° D-code

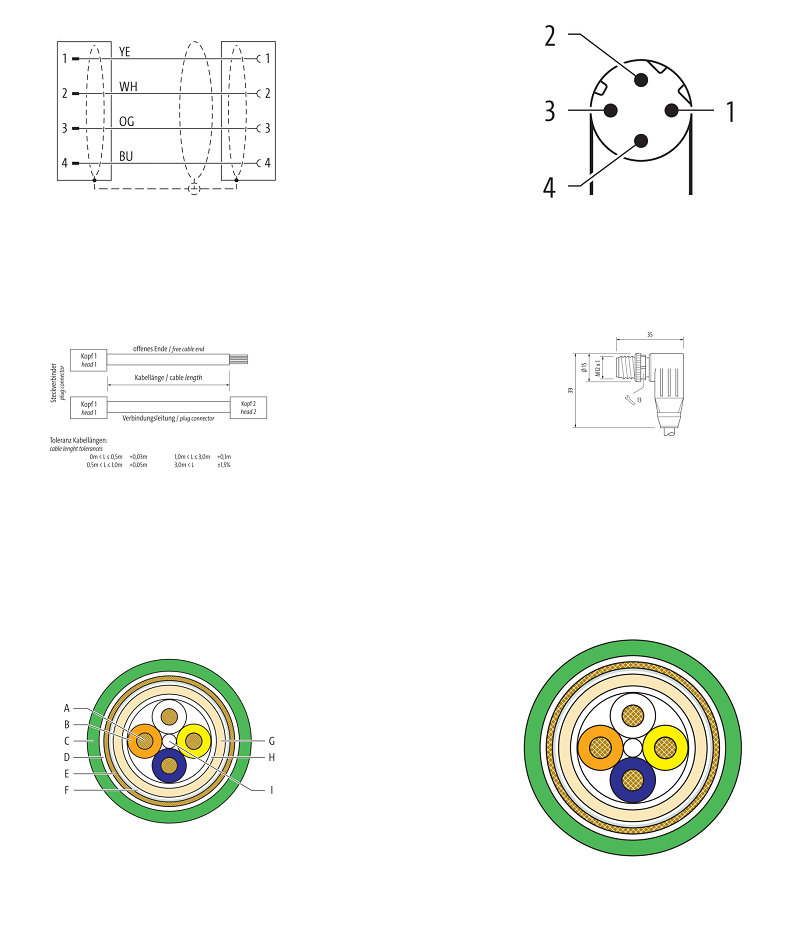

Thông số kỹ thuật – Cáp 1.5m bọc chống nhiễu 2 đầu nối M12 male 90° / M12 male 90° D-code 7000-44561-7960150
| Material short text | MSDCL0-DC-T796_1.5-ZS |
|---|---|
| Cable length | 1,50 m |
| Family construction form | M12 |
|---|---|
| No. of poles | 4 |
| Coding | D |
| Gender | male |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW13 |
| Cable outlet | angled |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Family construction form | M12 |
|---|---|
| No. of poles | 4 |
| Coding | D |
| Gender | male |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW13 |
| Cable outlet | angled |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Operating voltage DC max. | 60 V |
|---|---|
| Current operating per contact max. | 1.5 A |
| Data transmission rate max. | 100 Mbit/s |
|---|---|
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| duplex | Full duplex |
|---|
| Additional condition protection degree | inserted, screwed |
|---|---|
| Pollution Degree | 3 |
| Rated surge voltage | 1.5 kV |
| Material group (IEC 60664-1) | I |
| Contour for corrugated hose | without |
|---|
| Material screw connection | Zinc die-casting |
|---|---|
| Coating of fitting | Nickeled |
| Operating temperature min. | -30 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
|---|---|
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Product standard | EN IEC 61076-2-101 (M12) |
|---|
