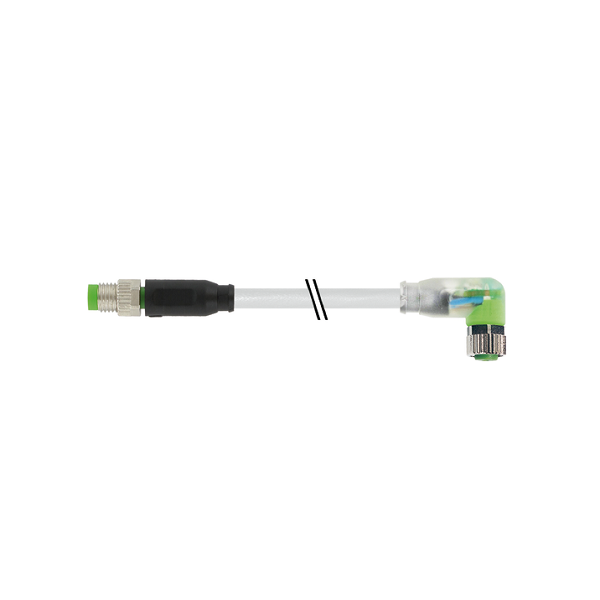

Cáp 0.6m 2 đầu nối M8 male 0° / M8 female 90° A-code LED 3 chân

Cáp 0.6m 2 đầu nối M8 male 0° / M8 female 90° A-code LED 3 chân 7000-88041-2300060

– PUR 3×0.25 gy UL/CSA+drag ch. 0.6m
– M8 đực 0°– M8 cái 90°, 3 chân, A-code, chiều dài cáp 0.6 mét
– Có LED báo trạng thái (xanh, vàng)
– inserted, screwed
– IP65, IP67, IP68, IP66K

Cáp 0.6m 2 đầu nối M8 male 0° / M8 female 90° A-code LED 3 chân 7000-88041-2300060: là dây cáp có 2 đầu kết nối loại M8, 3 chân, A-code, gồm 1 đầu đực (dạng thẳng 0°) và 1 đầu cái (dạng 90°)

(PUR 3×0.25 gy UL/CSA+drag ch. 0.6m)
– M8 male (đực) 0° – M8 female (cái) 90°
– Có sẵn cáp dài 0.6 mét, chịu dầu và chống hóa chất tốt
– Có LED báo trạng thái (vàng, xanh) NPN hoặc PNP theo yêu cầu

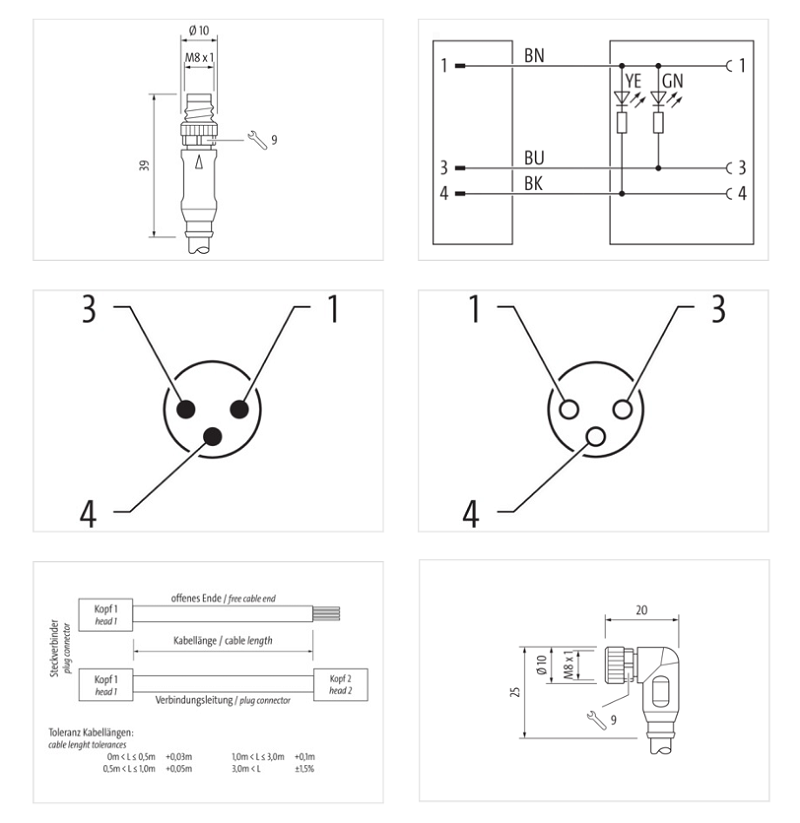

Cáp 0.6m 2 đầu nối M8 male 0° / M8 female 90° A-code LED 3 chân 7000-88041-2300060 - DETAIL
– Cáp phù hợp cho drag chain

Sản phẩm tương tự

Thông số kỹ thuật – Cáp 0.6m 2 đầu nối M8 male 0° / M8 female 90° A-code LED 3 chân 7000-88041-2300060

Header

Material short text	MSGL1-H-R230_0.6
Cable length	0,60 m

Side 1

Family construction form	M8
No. of poles	3
Coding	A
Gender	male
Mounting method	inserted, screwed
Threaded hole	M8 x 1
Tightening torque	0,4 Nm
Width across flats	SW9
Cable outlet	straight
suitable for corrugated tube (internal Ø)	6,5 mm
Material contact	Copper alloy
Coating contact	gold plated
Degree of protection (EN IEC 60529)	IP67, IP66K, IP65

Side 2

Family construction form	M8
No. of poles	4
Coding	A
Mounting method	inserted, screwed
Threaded hole	M8 x 1
Tightening torque	0,4 Nm
Width across flats	SW9
Cable outlet	angled
suitable for corrugated tube (internal Ø)	6,5 mm
Material contact	Copper alloy
Coating contact	gold plated

Electrical data | Supply

Operating voltage DC	24 V
Operating voltage DC min.	18 V
Operating voltage DC max.	30 V
Current operating per contact max.	4 A
Operating voltage DC max. (UL-listed)	30 V

Diagnostics

Status indication LED	green, yellow

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP67, IP68, IP66K, IP65
Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	0,8 kV
Material group (IEC 60664-1)	I

Mechanical data | Material data

Material housing	PUR
Locking material	Zinc die-casting
Coating locking	Nickeled
Material gasket	FKM

Mechanical data | Mounting data

Mounting method	inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-30 °C
Operating temperature max.	85 °C
Additional condition temperature range	depending on cable quality

Important installation notes

Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.
Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Conformity

Product standard	EN IEC 61076-2-114 (M8)
