Cáp 0.5m có đầu nối M8 male 0° A-code 3 chân 7000-08001-6300050
– PUR 3×0.25 bk UL/CSA+drag ch. 0.5m
– M8 male(đực) 0°, 3 chân, A-cod, có cáp dài 0.5m
– Inserted, screwed
– IP67, IP66K, IP65
Cáp 0.5m có đầu nối M8 male 0° A-code 3 chân 7000-08001-6300050 là một loại cáp tín hiệu có đầu nối của Murrelektronik
(PUR 3×0.25 bk UL/CSA+drag ch. 0.5m)
– M8 male(đực) 0° , 3 chân, A-cod, có cáp dài 0.5m, cáp có thể chịu được uốn, kéo phù hợp với các ứng dụng CNC, robot,…
– Vỏ nhựa có khả năng chống chịu tốt với hóa chất và dầu nhớt

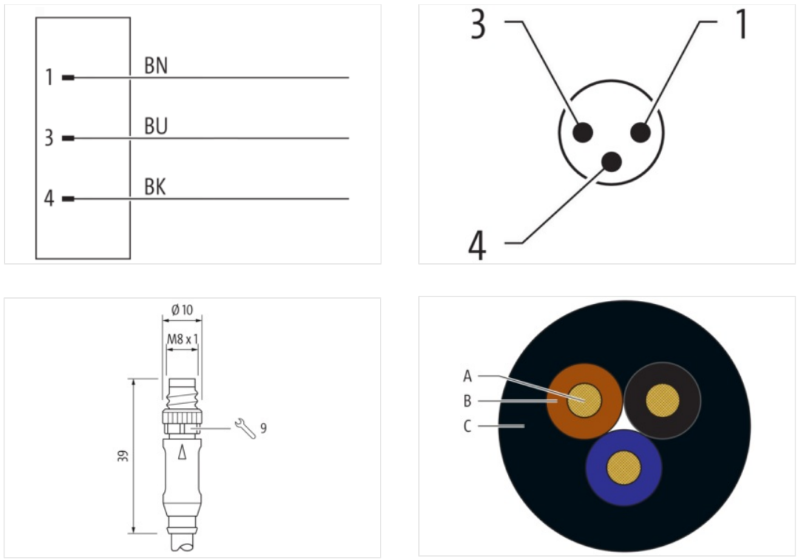

Thông số kỹ thuật – Cáp 0.5m có đầu nối M8 male 0° A-code 3 chân 7000-08001-6300050
| Cable length | 0,50 m |
Side 1
| Family construction form | M8 |
| No. of poles | 3 |
| Coding | A |
| Gender | male |
| Mounting method | inserted, screwed |
| Threaded hole | M8 x 1 |
| Tightening torque | 0,4 Nm |
| Width across flats | SW9 |
| Cable outlet | straight |
| suitable for corrugated tube (internal Ø) | 6,5 mm |
| Material | PUR |
| Material contact | Copper alloy |
| Coating contact | gold plated |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
Side 2
| Family construction form | With open ended wires |
| Stripping length (jacket) | 20 mm |
Electrical data | Supply
| Operating voltage AC max. | 50 V |
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
Diagnostics
| Status indication LED | No |
Installation | Connection
| Mounting set | M8 x 1 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Material screw connection | Brass |
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | EN/IEC 61076-2-104 (M8) |
