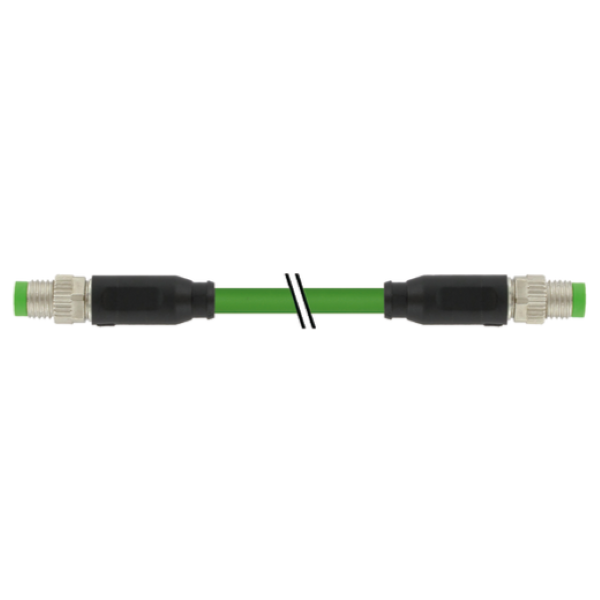

Cáp 0.6m bọc chống nhiễu 2 đầu nối M8 male 0° / M8 male 0° A-code 7000-89701-7910060
– M8 đực (0°) – M8 đực (0°), 4 chân, A-code, chiều dài cáp 0.6 mét
– PUR 1x4xAWG26 shielded gn UL/CSA+drag ch. 0.6m
– Inserted, screwed
– IP67, IP68, IP66K, IP65
Cáp 0.6m bọc chống nhiễu 2 đầu nối M8 male 0° / M8 male 0° A-code 7000-89701-7910060 là dây cáp có đầu nối. Nó gồm 2 đầu đực M8 (thẳng 0°), 4 chân, A-code
– PUR 1x4xAWG26 shielded gn UL/CSA+drag ch. 0.6m
– Có sẵn cáp dài 0.6 mét, được bọc chống nhiễu, chịu dầu và chống hóa chất tốt
Phù hợp cho robot tự động hóa, chịu uốn, kéo tốt
Sản phẩm tương tự – Đầu nối M8 – M8

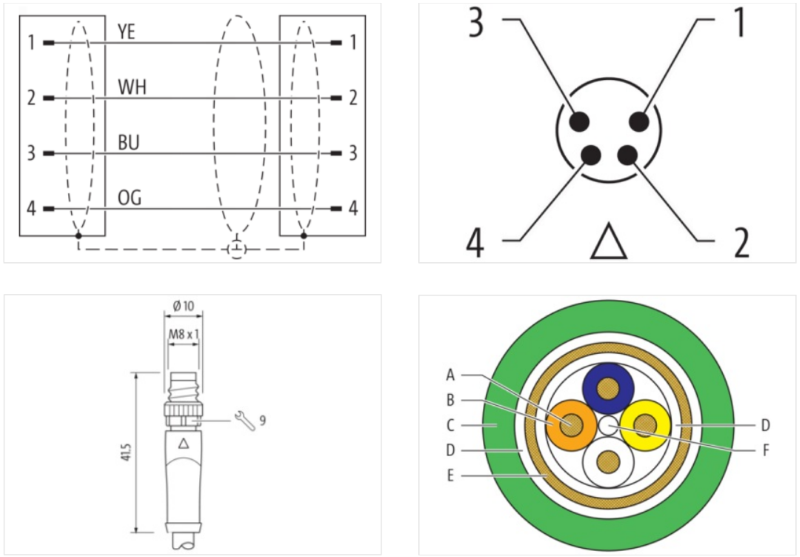

Thông số kỹ thuật – Cáp 0.6m bọc chống nhiễu 2 đầu nối M8 male 0° / M8 male 0° A-code 7000-89701-7910060
Header
| Material short text | MSHL0-H-T791_0.6-ZE |
| Cable length | 0,60 m |
Side 1
| Family construction form | M8 |
| No. of poles | 4 |
| Mounting method | inserted, screwed |
| Threaded hole | M8 x 1 |
| Tightening torque | 0,4 Nm |
| Width across flats | SW9 |
| suitable for corrugated tube (internal Ø) | 8,5 mm |
| Material contact | Copper alloy |
| Coating contact | gold plated |
Side 2
| Family construction form | M8 |
| No. of poles | 4 |
| Mounting method | inserted, screwed |
| Threaded hole | M8 x 1 |
| Tightening torque | 0,4 Nm |
| Material contact | Copper alloy |
| Coating contact | gold plated |
Electrical data | Supply
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 1,5 A |
Industrial Communication
| Data transmission rate max. | 100 Mbit/s |
| Transfer parameters | With reference to CAT5, Class D (ISO/IEC 11801) |
Diagnostics
| Status indication LED | No |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67, IP68, IP66K, IP65 |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Material housing | PUR |
| Locking material | Brass |
| Coating locking | nickel plated |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | EN IEC 61076-2-114 (M8) |
