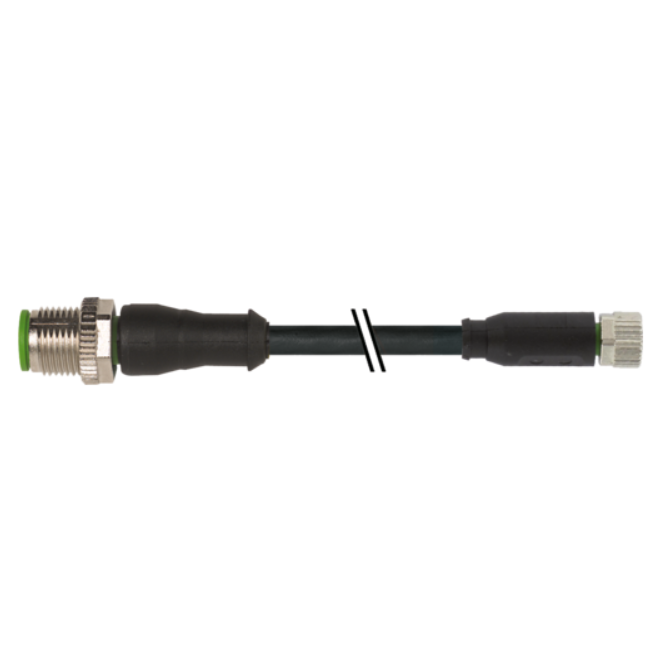

Cáp 0.5m 2 đầu nối M12 male 0° / M8 female 0° A-code 4 chân

Cáp 0.5m 2 đầu nối M12 male 0° / M8 female 0° A-code 4 chân 7000-40581-6310050

– M12 đực (0°) – M8 cái(0°), 4 chân, A-code, chiều dài cáp 0.5 mét
– PUR 4×0.25 bk UL/CSA+drag ch. 0.5m
– Inserted, screwed
– IP65, IP66K, IP67

(PUR 4×0.25 bk UL/CSA+drag ch. 0.5m)
Có sẵn cáp dài 0.5 mét, chịu dầu và chống hóa chất tốt

Cáp 0.5m 2 đầu nối M12 male 0° / M8 female 0° A-code 4 chân 7000-40581-6310050 - detail1

Phù hợp cho robot tự động hóa, chịu uốn, kéo tốt
Chống nhiễu và đạt độ bền cao khi sử dụng trong môi trường công nghiệp

Thông số kỹ thuật – Cáp 0.5m 2 đầu nối M12 male 0° / M8 female 0° A-code 4 chân 7000-40581-6310050

Cable length

0,5 m

Side 1

Tightening torque	0,6 Nm
Mounting method	inserted, screwed
Coating contact	gold plated
Family construction form	M12
Thread	M12 x 1
suitable for corrugated tube (internal Ø)	10 mm
Gender	male
Cable outlet	straight
Coding	A
Material contact	Copper alloy
Material	PUR
No. of poles	4
Width across flats	SW13
Degree of protection (EN IEC 60529)	IP65, IP66K, IP67

Side 2

Tightening torque	0,4 Nm
Mounting method	inserted, screwed
Coating contact	gold plated
Family construction form	M8
Thread	M8 x 1
Gender	female
suitable for corrugated tube (internal Ø)	6,5 mm
Cable outlet	straight
Coding	A
Material contact	Copper alloy
Material	PUR
No. of poles	4
Width across flats	SW9
Degree of protection (EN IEC 60529)	IP65, IP66K, IP67

Electrical data | Supply

Operating voltage AC max.	50 V
Operating voltage DC max.	60 V
Operating voltage AC (UL-listed)	30 V
Operating voltage DC (UL-listed)	30 V
Current operating per contact max.	4 A

Diagnostics

Status indication LED

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP65, IP67, IP66K
Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	1,5 kV
Material group (IEC 60664-1)	I
