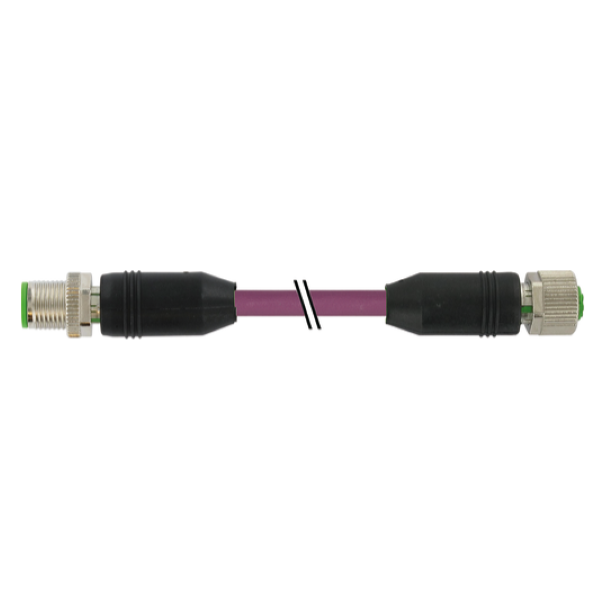

Cáp 0.3m mạng Profibus có đầu nối M12 male-M12-female B-code 7000-44001-8400030
– PUR 1x2xAWG24 shielded vt UL/CSA+drag ch. 0.3m
– M12 (đực, 0°) – M12 (cái, 0°), 2 chân, B-code, chiều dài cáp 0.3 mét
– Inserted, screwed, Shaking protection
– IP67, IP66K, IP65
Cáp 0.3m mạng Profibus có đầu nối M12 male-M12-female B-code 7000-44001-8400030 là dây cáp fieldbus có 2 đầu nối M12, 2 chân
– Dùng cho hệ thống truyền thông Profibus trong tủ điện, máy móc tự động hóa hoặc hệ thống I/O công nghiệp yêu cầu kết nối chuẩn B-coded.
– Có sẵn cáp dài 0.3 mét, chịu dầu và chống mài mòn, phù hợp dùng trong drag chain (xích kéo)
(PUR 1x2xAWG24 shielded vt UL/CSA+drag ch. 0.3m)
Sản phẩm tương tự – Đầu nối M12
Thông số kỹ thuật – Cáp 0.3m mạng Profibus có đầu nối M12 male-M12-female B-code 7000-44001-8400030

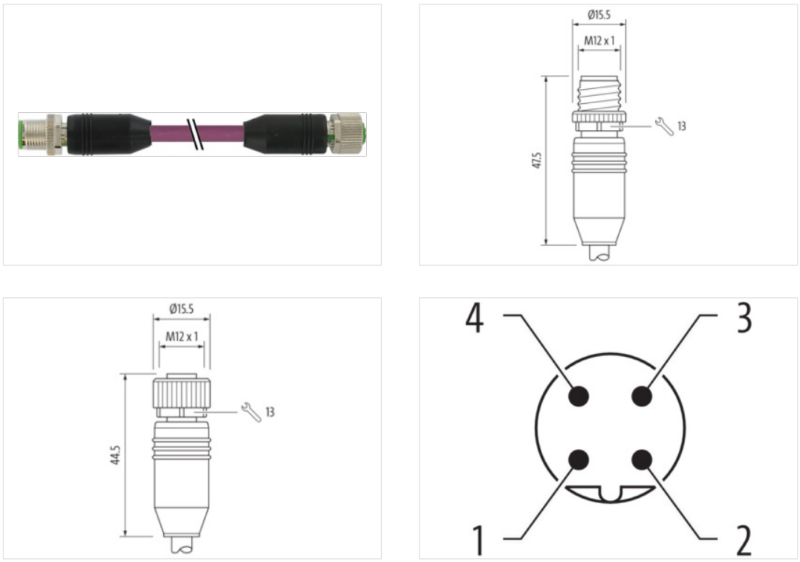

Side 1
| Family construction form | M12 |
| No. of poles | 2 |
| Coding | B |
| Gender | male |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| Material | PUR |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
Side 2
| Family construction form | M12 |
| No. of poles | 2 |
| Coding | B |
| Gender | female |
| Mounting method | inserted, screwed |
| Thread | M12 x 1 |
| Tightening torque | 0.6 Nm |
| Width across flats | SW13 |
| Cable outlet | straight |
| Material | PUR |
| Degree of protection (EN IEC 60529) | IP67, IP66K, IP65 |
Electrical data | Supply
| Operating voltage AC max. | 60 V |
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 4 A |
| Operating voltage AC (UL-listed) | 30 V |
| Operating voltage DC (UL-listed) | 30 V |
Diagnostics
| Status indication LED | no |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67, IP68, IP66K, IP65 |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1.5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data
| Contour for corrugated hose | without |
Mechanical data | Material data
| Locking material | Zinc die-casting |
| Coating locking | Nickeled |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -30 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
Conformity
| Product standard | DIN EN 61076-2-101 (M12) |
