Cáp 0.3m có đầu nối nguồn M12 male-M12 female 5 chân L-code 7000-P4241-P040030
– PUR 5×1.5 bk UL/CSA+drag ch. 0.3m
– M12 đực – M12 cái, 5 chân, L-code, chiều dài cáp 0.3 mét
– Inserted, screwed
– IP65, IP67

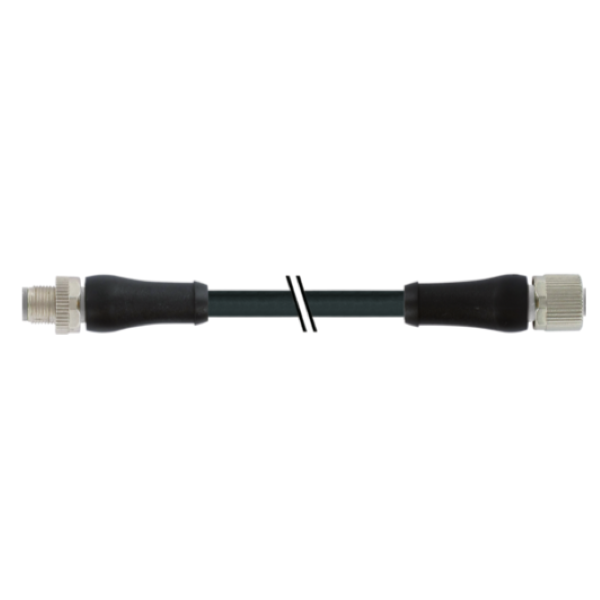

Cáp 0.3m có đầu nối nguồn M12 male-M12 female 5 chân L-code 7000-P4241-P040030 là dây cáp kết nối nguồn loại M12, gồm đầu đực và đầu cái (cả hai dạng thẳng 0°), 5 chân, L-coded. Có sẵn cáp dài 0.3 mét, màu đen, chịu dầu và chống mài mòn, phù hợp dùng trong drag chain (xích kéo).
PUR 5×1.5 bk UL/CSA+drag ch. 0.3m
Sản phẩm tương tự – Đầu nối nguồn M12 male (đực) – M12 female (cái) L-code 5 m cáp 7000-P4241-P040500
Thông số kỹ thuật – Cáp 0.3m có đầu nối nguồn M12 male-M12 female 5 chân L-code 7000-P4241-P040030
| Cable length | 0,3 m |

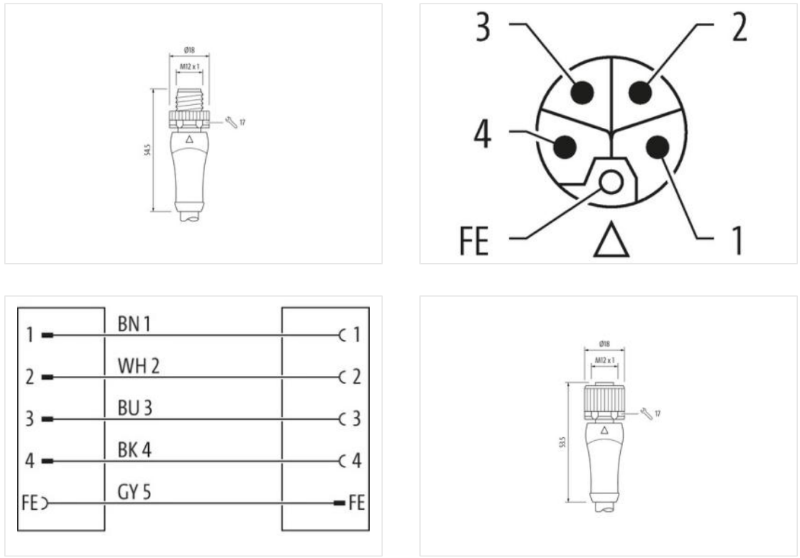

Side 1
| Tightening torque | 0,6 Nm |
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M12P |
| Thread | M12 x 1 |
| suitable for corrugated tube (internal Ø) | 12 mm |
| Gender | male |
| Cable outlet | straight |
| Coding | L |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 5 |
| Width across flats | SW17 |
| Degree of protection (EN IEC 60529) | IP65, IP67 |
Side 2
| Tightening torque | 0,6 Nm |
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M12P |
| Thread | M12 x 1 |
| Gender | female |
| suitable for corrugated tube (internal Ø) | 12 mm |
| Cable outlet | straight |
| Coding | L |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 5 |
| Width across flats | SW17 |
| Degree of protection (EN IEC 60529) | IP65, IP67 |
Electrical data | Supply
| Operating voltage DC max. | 63 V |

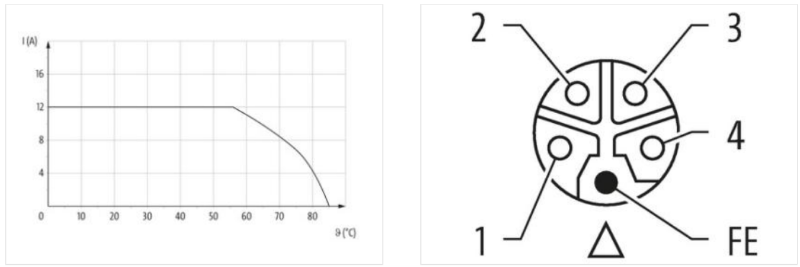

| Current operating per contact max. | 12 A |
Installation | Connection
| Width across flats | SW17 |
| Mating cycles min. | 100 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP65, IP67 |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data | Material data
| Material housing | PUR |
| Coating locking | Nickeled |
| Material gasket | FKM |
| Locking material | Zinc die-casting |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
Conformity
| Product standard | IEC 61076-2-111 |
