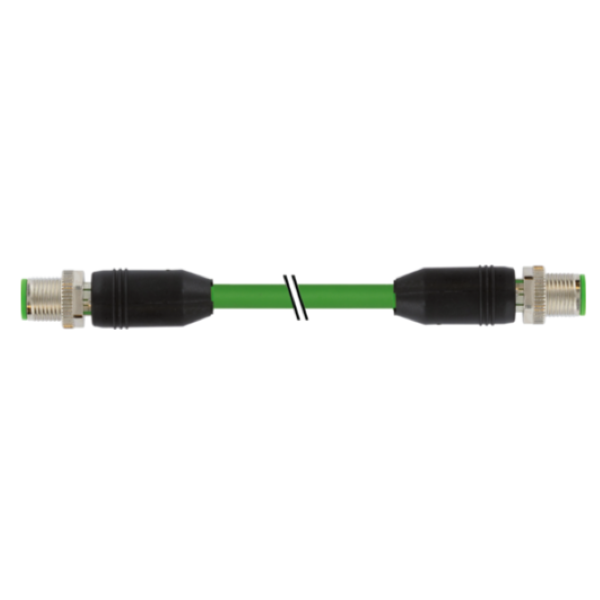

Cáp 0.3m bọc chống nhiễu có đầu nối M12 male-M12 male D-code của Murrelektronik 7000-44511-7940030
– PUR 1x4xAWG22 shielded gn UL/CSA 0.3m
– M12 đực – M12 đực, 4 chân, D-code, chiều dài cáp 0.3 mét
– Inserted, screwed
– IP65, IP66K, IP67
Cáp 0.3m bọc chống nhiễu có đầu nối M12 male-M12 male D-code của Murrelektronik 7000-44511-7940030 là dây cáp kết nối nguồn loại M12, dạng thẳng 0°, đầu nối đực, 4 chân, D-coded.
Có sẵn cáp dài 0.3 mét, màu đen, có bọc chống nhiễu, chịu dầu và chống mài mòn. Cáp phù hợp cho drag chain
PUR 1x4xAWG22 shielded gn UL/CSA 0.3m

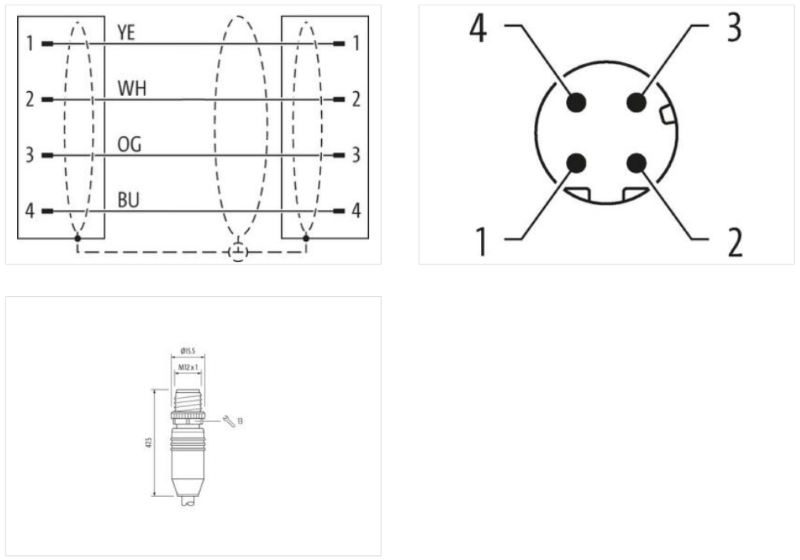

Thông số kỹ thuật – Cáp 0.3m bọc chống nhiễu có đầu nối M12 male-M12 male D-code của Murrelektronik 7000-44511-7940030
| Cable length | 0,3 m |
Side 1
| Tightening torque | 0,6 Nm |
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Gender | male |
| Cable outlet | straight |
| Coding | D |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 4 |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
Side 2
| Tightening torque | 0,6 Nm |
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M12 |
| Thread | M12 x 1 |
| Gender | male |
| Cable outlet | straight |
| Coding | D |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 4 |
| Width across flats | SW13 |
| Degree of protection (EN IEC 60529) | IP65, IP66K, IP67 |
Electrical data | Supply
| Operating voltage DC max. | 60 V |
| Current operating per contact max. | 1,5 A |
Industrial communication
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Data transmission rate max. | 100 MBit/s |
Industrial communication | Ethernet functionality
| duplex | Full duplex |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP65, IP67, IP66K |
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
Mechanical data
| Contour for corrugated hose | without |
Mechanical data | Material data
| Coating locking | Nickeled |
| Coating of fitting | nickel plated |
| Locking material | Zinc die-casting |
| Material screw connection | Zinc die-casting |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
Conformity
| Product standard | DIN EN 61076-2-101 (M12) |
