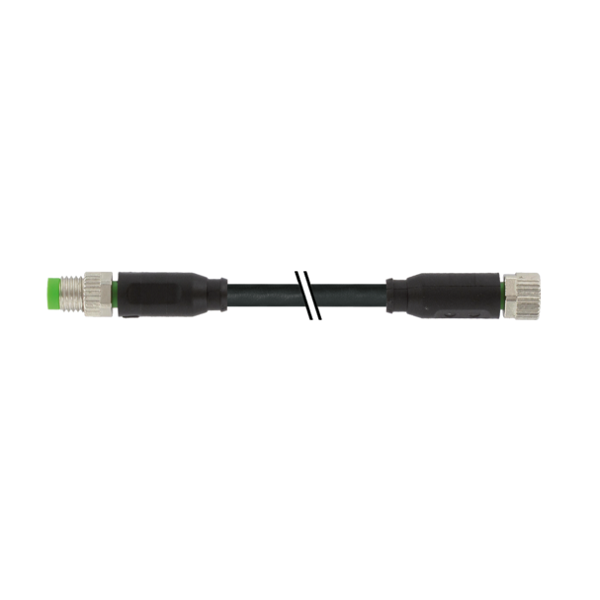

Cáp 0.3m 2 đầu nối M8 male 0° / M8 female 0° A-code 3 chân

Cáp 0.3m 2 đầu nối M8 male 0° / M8 female 0° A-code 3 chân 7000-88001-6300030

– PUR 3×0.25 bk UL/CSA+drag ch. 0.3m
– M8 male 0°- M8 female 0°, A-code
– Có sẵn cáp dài 0.3m, 3 chân
– inserted, screwed
– IP65, IP66, IP67

Cáp 0.3m 2 đầu nối M8 male 0° / M8 female 0° A-code 3 chân 7000-88001-6300030: là dây cáp kết nối tín hiệu có sẵn đầu nối M8, gồm đầu đực và đầu cái (cả hai đầu nối dạng thẳng 0°), 3 chân, A-code

– PUR 3×0.25 bk UL/CSA+drag ch. 0.3m
– M8 male 0°- M8 female 0°, A-code
– Có sẵn cáp dài 0.3m, 3 chân

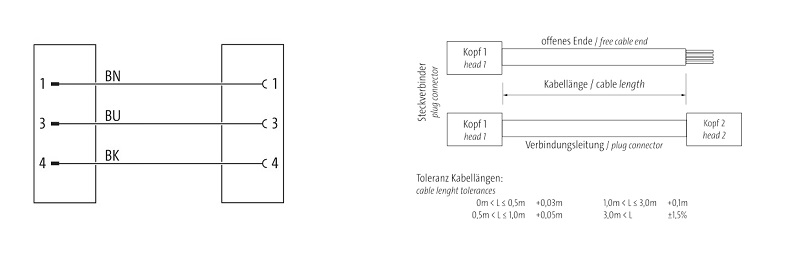

Cáp 0.3m 2 đầu nối M8 male 0° / M8 female 0° A-code 3 chân 7000-88001-6300030 - DETAIL1

– Vỏ nhựa có khả năng chống hóa chất và dầu tốt

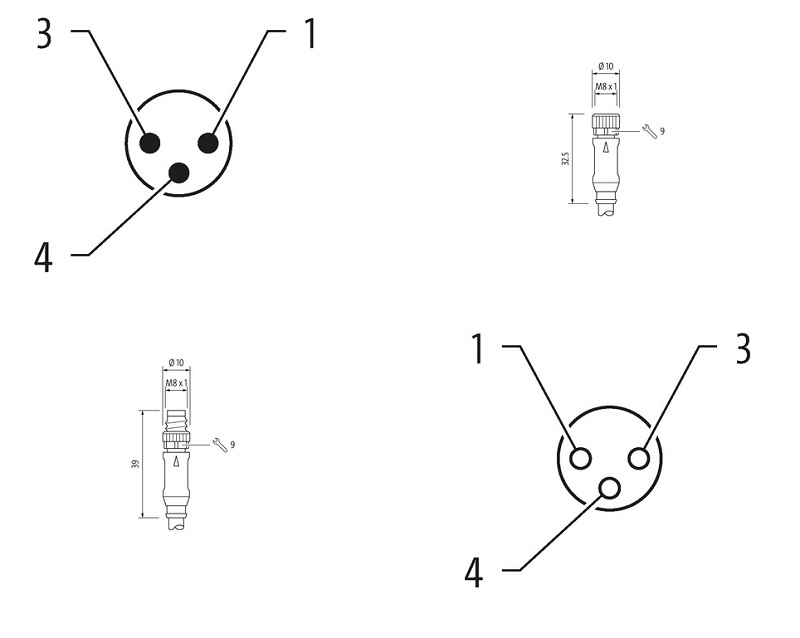

Cáp 0.3m 2 đầu nối M8 male 0° / M8 female 0° A-code 3 chân 7000-88001-6300030 - DETAIL2

Thông số kỹ thuật – Cáp 0.3m 2 đầu nối M8 male 0° / M8 female 0° A-code 3 chân 7000-88001-6300030

Cable length	0,3 m

Side 1

Tightening torque	0,4 Nm
Mounting method	inserted, screwed
Coating contact	gold plated
Family construction form	M8
Thread	M8 x 1
suitable for corrugated tube (internal Ø)	6,5 mm
Gender	male
Cable outlet	straight
Coding	A
Material contact	Copper alloy
Material	PUR
No. of poles	3
Width across flats	SW9
Degree of protection (EN IEC 60529)	IP65, IP66K, IP67

Side 2

Tightening torque	0,4 Nm
Mounting method	inserted, screwed
Coating contact	gold plated
Family construction form	M8
Thread	M8 x 1
Gender	female
suitable for corrugated tube (internal Ø)	6,5 mm
Cable outlet	straight
Coding	A
Material contact	Copper alloy
Material	PUR
No. of poles	3
Width across flats	SW9
Degree of protection (EN IEC 60529)	IP65, IP66K, IP67

Electrical data | Supply

Operating voltage AC max.	50 V
Operating voltage DC max.	60 V
Current operating per contact max.	4 A

Diagnostics

Status indication LED	no

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP65, IP67, IP68, IP66K
Additional condition protection degree	inserted, screwed
Pollution Degree	3
Rated surge voltage	1,5 kV
Material group (IEC 60664-1)	I

Mechanical data | Material data

Mechanical data | Mounting data

Mounting method	inserted, screwed, Shaking protection

Environmental characteristics | Climatic

Operating temperature min.	-30 °C
Operating temperature max.	85 °C
Additional condition temperature range	depending on cable quality

Important installation notes

Note on strain relief	Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
Note on bending radius	Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Conformity

Product standard	DIN EN 61076-2-114 (M8)
