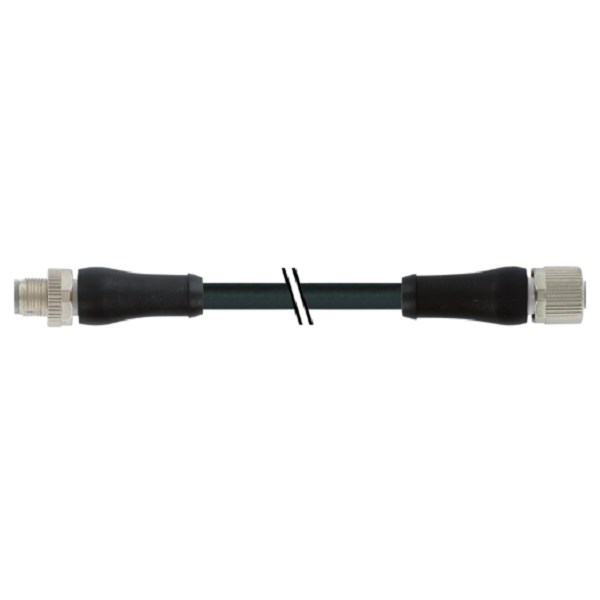

Cáp 0.3 có đầu nối nguồn M12 male-M12 female L-code của Murrelektronik 7000-P4241-P040030
– PUR 5×1.5 bk UL/CSA+drag ch. 0.3m

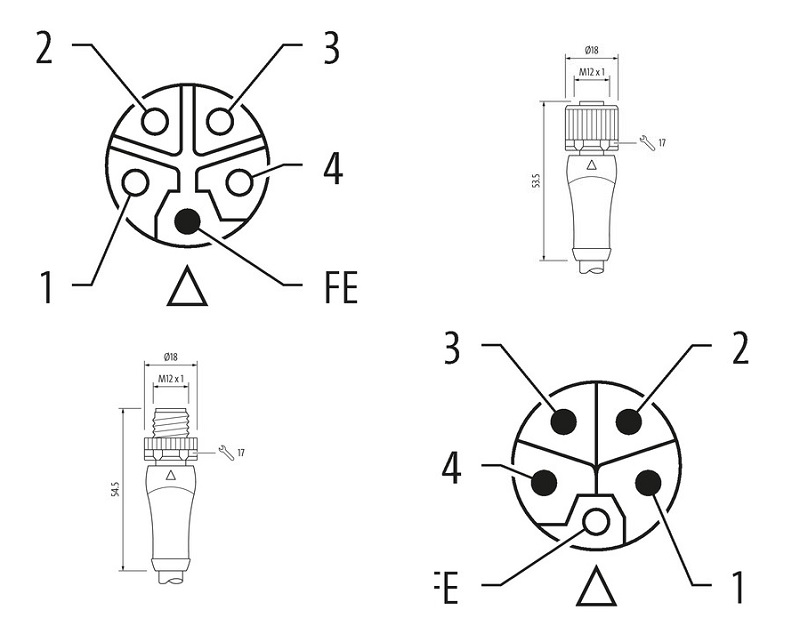

– M12 – M12, 5-chân, L-coded
– inserted, screwed
– IP65, IP67

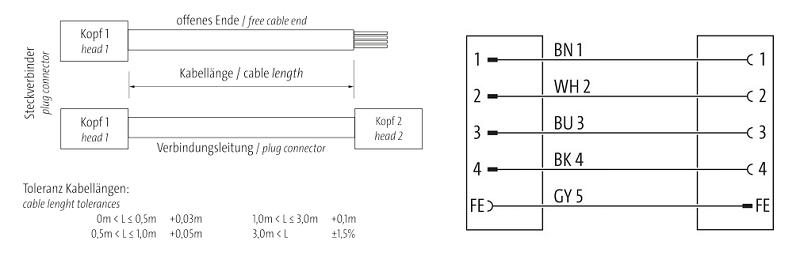

Cáp 0.3 có đầu nối nguồn M12 male-M12 female L-code của Murrelektronik 7000-P4241-P040030 là cáp có đầu chuyển đổi giữa M12 5 chân, L-cod, male (đực), 0° với M12 4 chân, L-coded, female (cái), 0°
(PUR 5×1.5 bk UL/CSA+drag ch. 0.3m)
– Có sẵn cáp dài 0.3m
– M12 male 0°- M12 female 0°
– Có sẵn cáp dài 0.3m, L-coded
– Vỏ nhựa có khả năng chống hóa chất và dầu tốt
Sản phẩm tương tự – Cáp có đầu nối nguồn M12 male-M12 female L-code, cáp 1.5m của Murrelektronik 7000-P4241-P040150
Thông số kỹ thuật – Cáp 0.3 có đầu nối nguồn M12 male-M12 female L-code của Murrelektronik 7000-P4241-P040030
| Cable length | 0,3 m |
|---|
| Tightening torque | 0,6 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M12P |
| Thread | M12 x 1 |
| suitable for corrugated tube (internal Ø) | 12 mm |
| Gender | male |
| Cable outlet | straight |
| Coding | L |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 5 |
| Width across flats | SW17 |
| Degree of protection (EN IEC 60529) | IP65, IP67 |
| Tightening torque | 0,6 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M12P |
| Thread | M12 x 1 |
| Gender | female |
| suitable for corrugated tube (internal Ø) | 12 mm |
| Cable outlet | straight |
| Coding | L |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 5 |
| Width across flats | SW17 |
| Degree of protection (EN IEC 60529) | IP65, IP67 |
| Operating voltage DC max. | 63 V |
|---|---|
| Current operating per contact max. | 12 A |
| Width across flats | SW17 |
|---|---|
| Mating cycles min. | 100 |
| Degree of protection (EN IEC 60529) | IP65, IP67 |
|---|---|
| Additional condition protection degree | inserted, screwed |
| Pollution Degree | 3 |
| Rated surge voltage | 1,5 kV |
| Material group (IEC 60664-1) | I |
| Material housing | PUR |
|---|---|
| Coating locking | Nickeled |
| Material gasket | FKM |
| Locking material | Zinc die-casting |
| Mounting method | inserted, screwed, Shaking protection |
|---|
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
|---|---|
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Product standard | IEC 61076-2-111 |
|---|
