Cảm biến từ Ifm MGT000

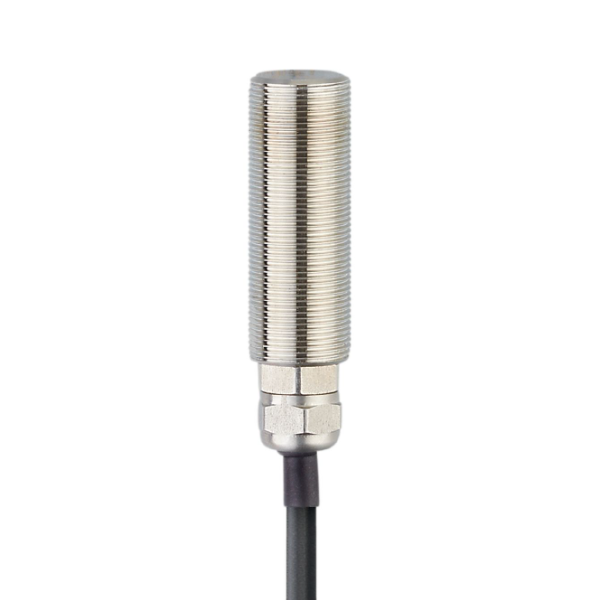

Cảm biến Ifm MGT000

– Phạm vi hoạt động 25 mm
– Điện áp làm việc: 2…250 V AC/DC
– Ngõ ra PNP/NPN, NO. 2 dây
– Cáp silicone dài 2m

Cảm biến từ Ifm MGT000

Cảm biến từ Ifm MGT000 - detail

– Điện áp làm việc: 2…250 V AC/DC
– Ngõ ra 2 dây PNP/NPN, NO
– Cáp silicone dài 2m
– Vật liệu: thép không gỉ (316L/1.4404); bề mặt cảm biến: thép không gỉ (316L/1.4404); đai ốc khóa: đồng thau
– Nhiệt độ môi trường: -40…180 °C

Thông số kỹ thuật – Cảm biến Ifm MGT000

Product characteristics

Electrical design PNP/NPN
Output function normally open
Sensing range[mm] 25; (referred to magnet M 4.0)
Housing threaded type
Dimensions[mm] M18 x 1 / L = 66

Application

Special feature Full-metal housing
Application high-temperature applications

Electrical data

Operating voltage[V] 2…250 AC/DC
Protection class II
Reverse polarity protection yes

Outputs

Electrical design PNP/NPN
Output function normally open
Permanent current rating of switching output AC[mA] 1000
Permanent current rating of switching output DC[mA] 1000
Short-time current rating of switching output[mA] 1000
Max. switching power[W] 100
Short-circuit protection no
Overload protection no

Detection zone

Sensing range[mm] 25; (referred to magnet M 4.0)
Response sensitivity[mT] 7.5

Operating conditions

Ambient temperature[°C] -40…180
Protection IP 65; IP 68; IP 69K

Tests / approvals

EMC

EN 61000-4-2 ESD kV CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-5 Surge 1,0 kV line to line, Ri: 2 Ohm
EN 61000-4-6 HF conducted 10 V
EN 55011 class B


Shock resistance

EN 60947-5-1


Vibration resistance

EN 60947-5-1


MTTF[years] 57078

Mechanical data

Weight[g] 212
Housing threaded type
Dimensions[mm] M18 x 1 / L = 66
Thread designation M18 x 1
Materials housing: stainless steel (316L/1.4404); sensing face: stainless steel (316L/1.4404); lock nuts: brass
Tightening torque for cable gland[Nm] 5
Tightening torque[Nm] 50
Full-metal housing yes

Electrical connection

Required protection miniature fuse to IEC60127-2 sheet 1; ≤ 0,175 A; fast acting

Accessories

Items supplied

lock nuts: 2



Remarks

Pack quantity 1 pcs.

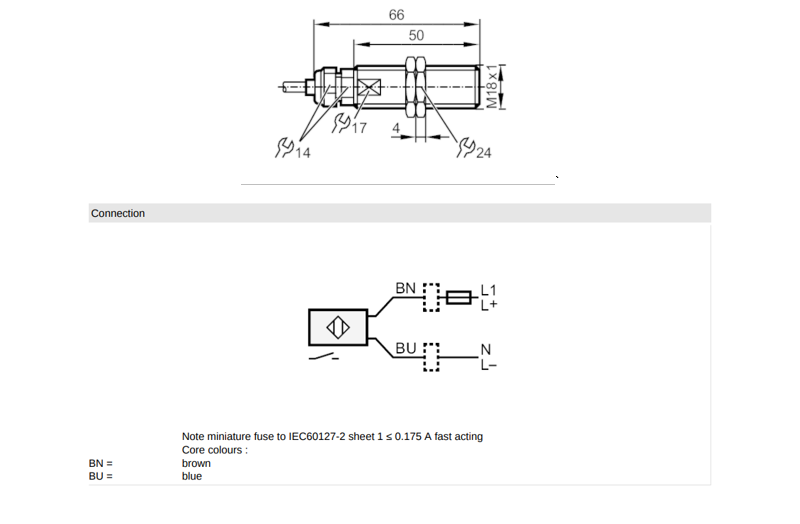

Electrical connection

Connection Cable: 2 m, silicone; 2 x 0.75 mm²

Datasheet Cảm biến Ifm MGT000
